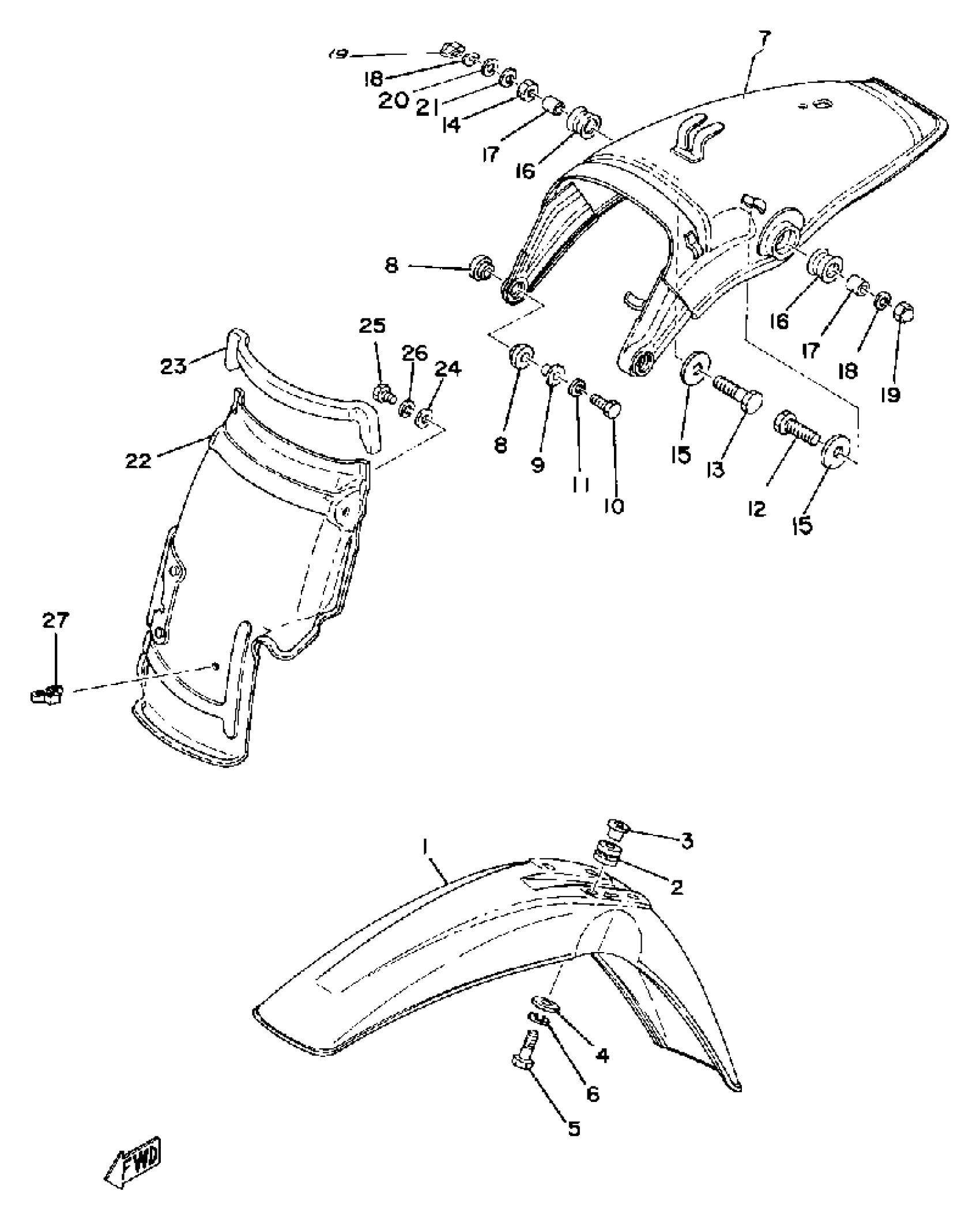

Yamaha XT500H (XT500) 1981 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3H6-21511-00-00

Unavailable

2

GROMMET

90480-14198-00

$9.49

3

COLLAR

90387-06158-00

$8.49

4

WASHER, PLATE

90201-06380-00

$0.60

5

BOLT, HEXAGON

97017-06030-00

$3.61

6

WASHER, SPRING

92995-06100-00

Unavailable

7

REAR FENDER COMP.

1U6-21610-00-36

$212.99

8

DAMPER, FENDER

322-21541-00-00

$7.99

9

COLLAR 437216330000

90387-07391-00

Unavailable

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

WASHER, SPRING

92995-06100-00

Unavailable

12

BOLT

97013-08035-00

$5.60

13

BOLT

97013-08045-00

Unavailable

14

NUT(6L2)

95333-08600-00

$2.49

15

WASHER, PLATE (1A0)

90201-08612-00

$8.49

16

DAMPER, REAR

168-21639-00-00

Unavailable

17

COLLAR (437)

90387-08258-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

19

NUT, CROWN

95303-08800-00

Unavailable

20

WASHER, PLAIN

92990-08200-00

Unavailable

21

WASHER (853)

90201-08326-00

Unavailable

22

MUD GUARD COMP.

1T1-21620-00-00

Unavailable

23

DAMPER

583-21746-00-00

Unavailable

24

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable

25

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable

27

CLAMP (1A0)

90464-08020-00

Unavailable
