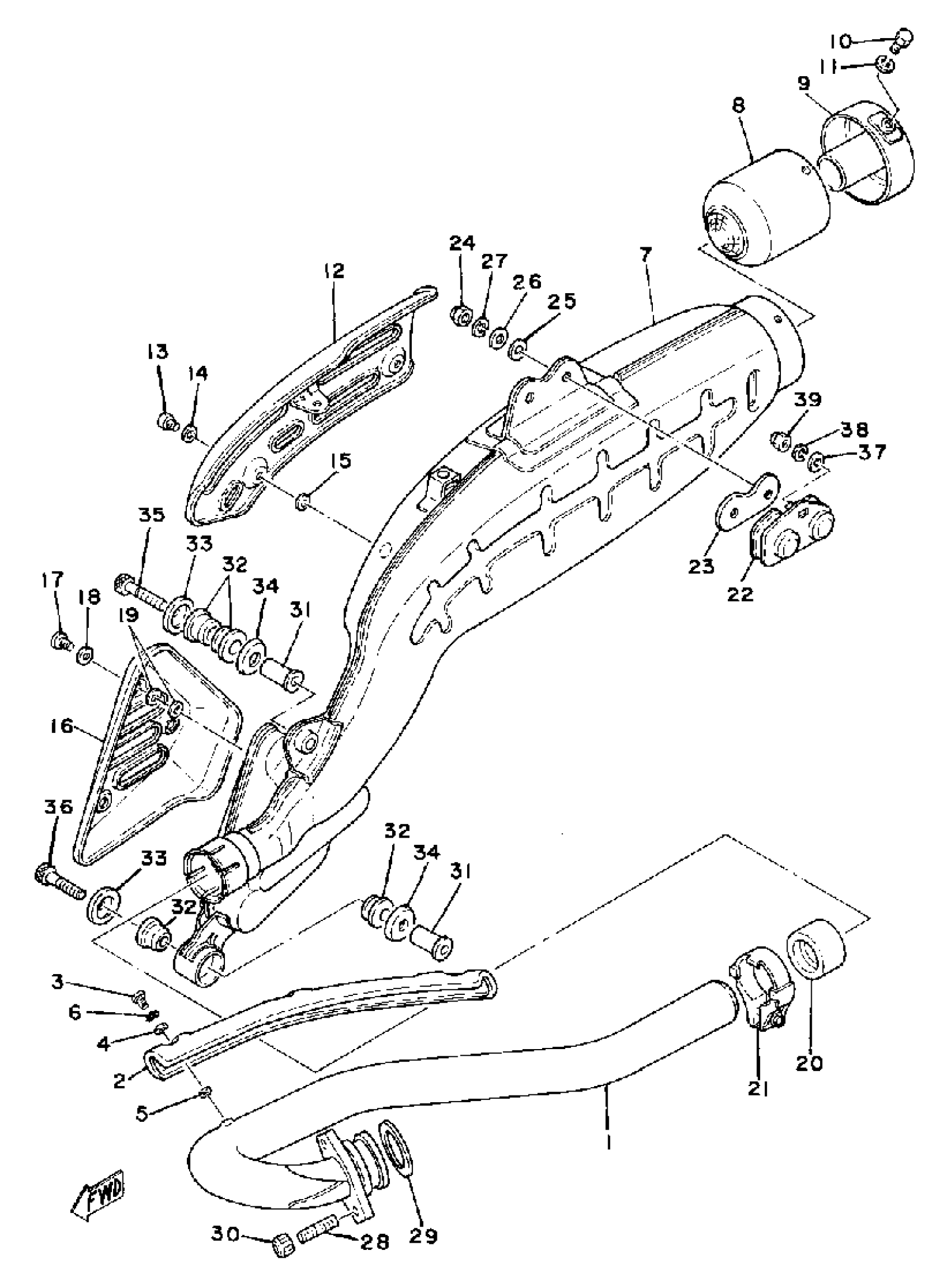

Yamaha XT500H (XT500) 1981 EXHAUST Diagram
#
1
PIPE, EXHAUST L
1T1-14611-03-00
Unavailable
2
PROTC, EXHAUST PIPE
1T1-14628-00-00
Unavailable
7
MUFFLER L
(3H6-14711-00-00)
Unavailable
8
ARRESTER, SPARK
(1E6-14786-01-00)
Unavailable
9
PIPE, OUTLET
1T1-14752-01-00
Unavailable
11
WASHER, SPRING
92995-06100-00
Unavailable
12
PROTECTOR, MUFF 1
1T1-14718-00-00
Unavailable
16
PROTECTER, MUFF 2
1T2-14728-00-00
Unavailable
17
SCREW, BINDING
98907-06012-00
Unavailable
20
GASKET, MUFFLER
3EG-14714-00-00
Unavailable
21
BAND, SILENCER
1T1-14788-00-00
Unavailable
22
STAY, MUFFLER
1T1-14791-02-00
Unavailable
23
GASKET,SILENCER
1T1-14755-02-00
Unavailable
24
NUT, U
95617-08100-00
Unavailable
25
WASHER, PLATE
90202-08103-00
Unavailable
26
WASHER (853)
90201-08326-00
Unavailable
27
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
28
BOLT, STUD 3
95617-08615-00
Unavailable
29
GASKET, EXHAUST PIPE
3GD-14613-00-00
Unavailable
30
NUT (371)
90179-08004-00
Unavailable
31
COLLAR
90387-08572-00
Unavailable
33
WASHER
90209-08008-00
Unavailable
34
WASHER, SPEC''L SHAP
90209-12163-00
Unavailable
35
BOLT, SOCKET
91317-08050-00
Unavailable
36
BOLT, SOCKET
91317-08050-00
Unavailable
37
.. WASHER, PLATE
92990-08600-00
Unavailable
38
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
39
NUT, CROWN
95303-08800-00
Unavailable
