1980 Yamaha XT500 (XT500G) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1980 Yamaha XT500 (XT500G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

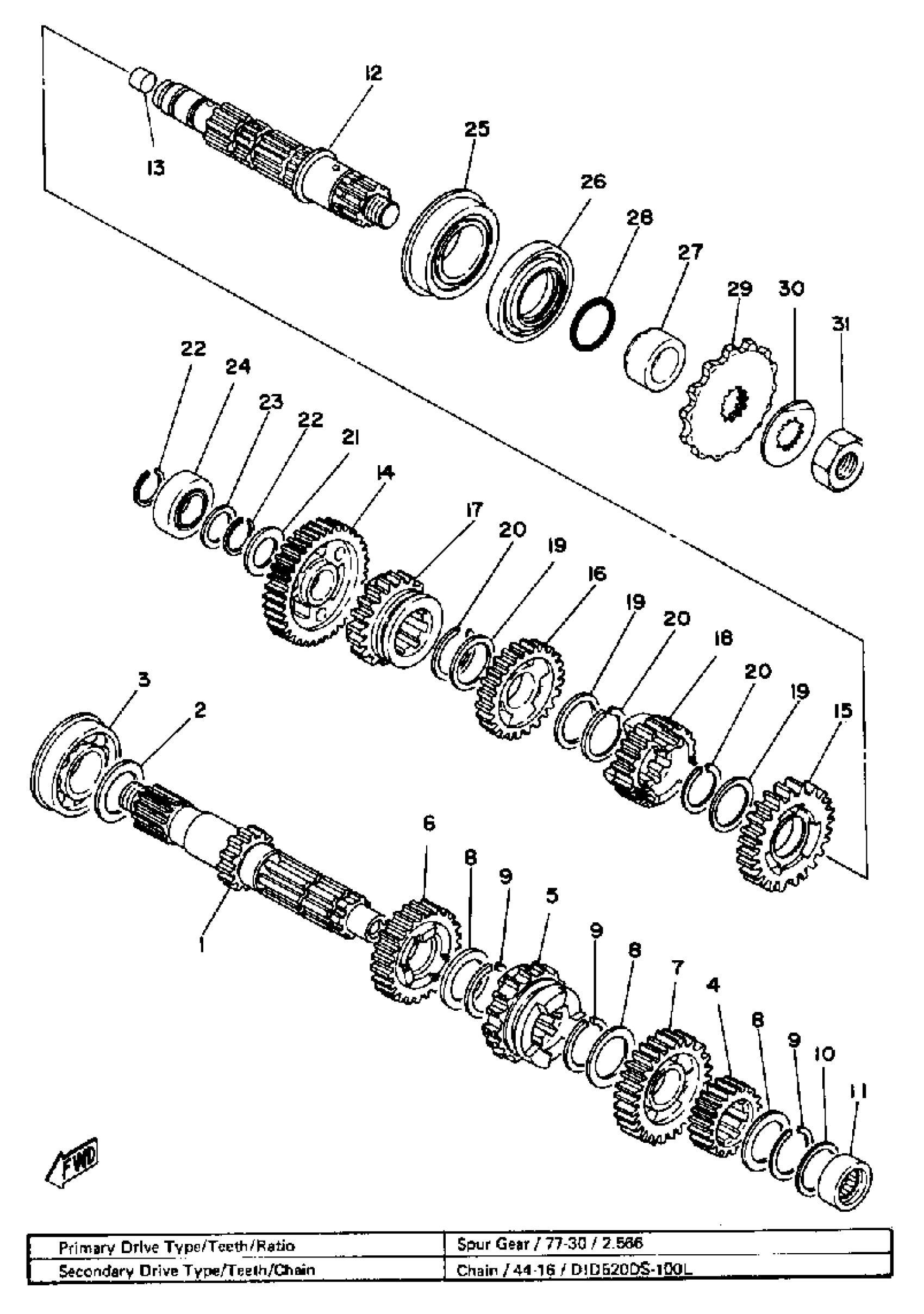

1980 Yamaha XT500 (XT500G) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

583-17411-01-00

—

$162.62

In stock

2

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

3

BRG,R-B 4205 52MM 185G KY

93304-20501-00

1

$90.57

In stock

4

GEAR, 2ND PINION

583-17121-00-00

—
Out of stock

5

GEAR, 3RD PINION

583-17131-02-00

1
Out of stock

6

GEAR, 4TH PINION

583-17141-00-00

1
Out of stock

7

GEAR, 5TH PINION

583-17151-01-00

1
Out of stock

8

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

9

CIRCLIP

93440-25020-00

1
Out of stock

10

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

11

BEARING

93311-42077-00

1
Out of stock

12

AXLE, DRIVE

99999-01986-00

1
Out of stock

13

PLUG, SPEC''L SHAPE

90338-09066-00

1
Out of stock

14

GEAR, 1ST WHEEL

583-17211-00-00

—
Out of stock

15

GEAR, 2ND WHEEL

583-17221-00-00

—
Out of stock

16

GEAR, 3RD WHEEL

583-17231-01-00

1
Out of stock

17

GEAR, 4TH WHEEL

583-17241-00-00

—
Out of stock

18

GEAR, 5TH WHEEL

583-17251-01-00

1
Out of stock

19

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

20

CIRCLIP

93440-25020-00

1
Out of stock

21

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

22

CIRCLIP (525)

93410-20038-00

—

$2.62

In stock

23

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

24

BRG,CYL-CAL ROLLER 52G TM

93313-32008-00

—
Out of stock

25

BRG,R-B 6305 62MM 232.35G NT

93306-30517-00

—
Out of stock

26

OIL SEAL, SD-TYPE

93102-35180-00

1
Out of stock

27

COLLAR

90387-25507-00

1
Out of stock

28

O-RING

93210-22298-00

—

$6.57

In stock

29

SPROCKET, DRIVE 16T (16T)

9383E-16106-00

1
Out of stock

30

WASHER, LOCK(3LD)

90215-21290-00

—
Out of stock

31

NUT 152174630000

90179-18020-00

—
Out of stock
