1980 Yamaha XT500 (XT500G) Taillight Diagram

← All diagrams

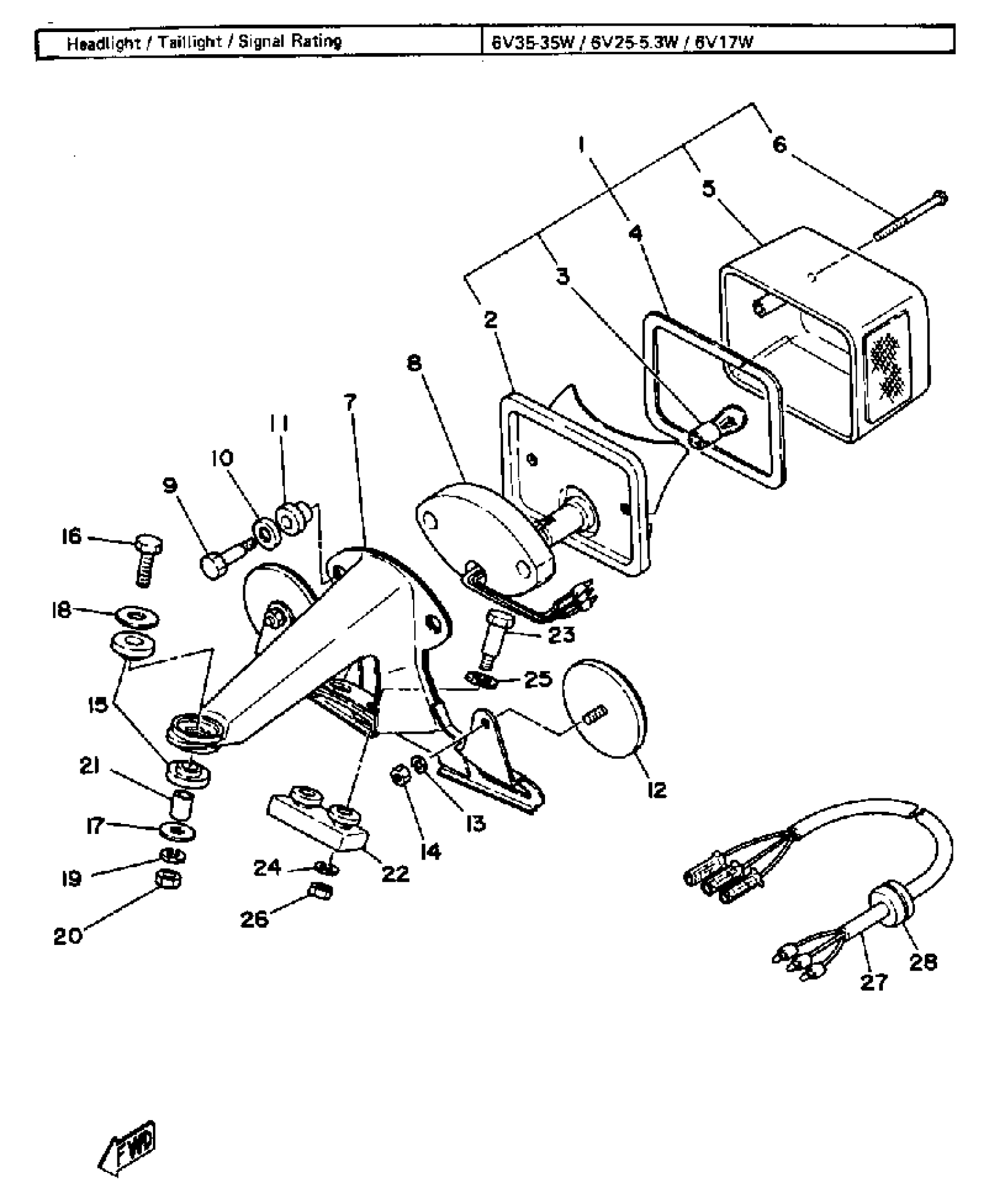

Find the part on the Taillight diagram for your 1980 Yamaha XT500 (XT500G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha XT500 (XT500G) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

1M1-84510-60-00

1
Out of stock

2

. BASE, TAILLIGHT

1M1-84511-60-00

1
Out of stock

3

. BULB

1M1-84514-60-00

1
Out of stock

4

GASKET, TAIL LENS

1M1-84523-60-00

1

$11.03

In stock

5

LENS, TAIL LAMP

1M1-84521-60-00

1

$35.69

In stock

6

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

7

BRACKET, LICENCE

1T2-84551-60-33

1
Out of stock

8

SEAT, BASE

1T2-84512-60-00

1
Out of stock

9

SCREW

1T2-84526-60-00

1
Out of stock

10

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

11

DAMPER

1M1-84527-60-00

1
Out of stock

12

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

15

DAMPER, FENDER

322-21541-00-00

1

$6.72

In stock

16

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

17

WASHER, PLATE

90201-06061-00

1
Out of stock

18

WASHER, PLATE

90201-06086-00

—
Out of stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

COLLAR (1T2)

90387-07598-00

—

$4.83

In stock

22

DAMPER

308-84553-00-00

1
Out of stock

23

BOLT 338845520000

90109-06022-00

—

$8.14

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

WASHER, SPECIAL (498)

90209-08125-00

—

$9.83

In stock

26

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

27

CORD, TAILLIGHT

1E6-84517-00-00

1
Out of stock

28

GROMMET (438)

90480-15061-00

—

$6.68

In stock
