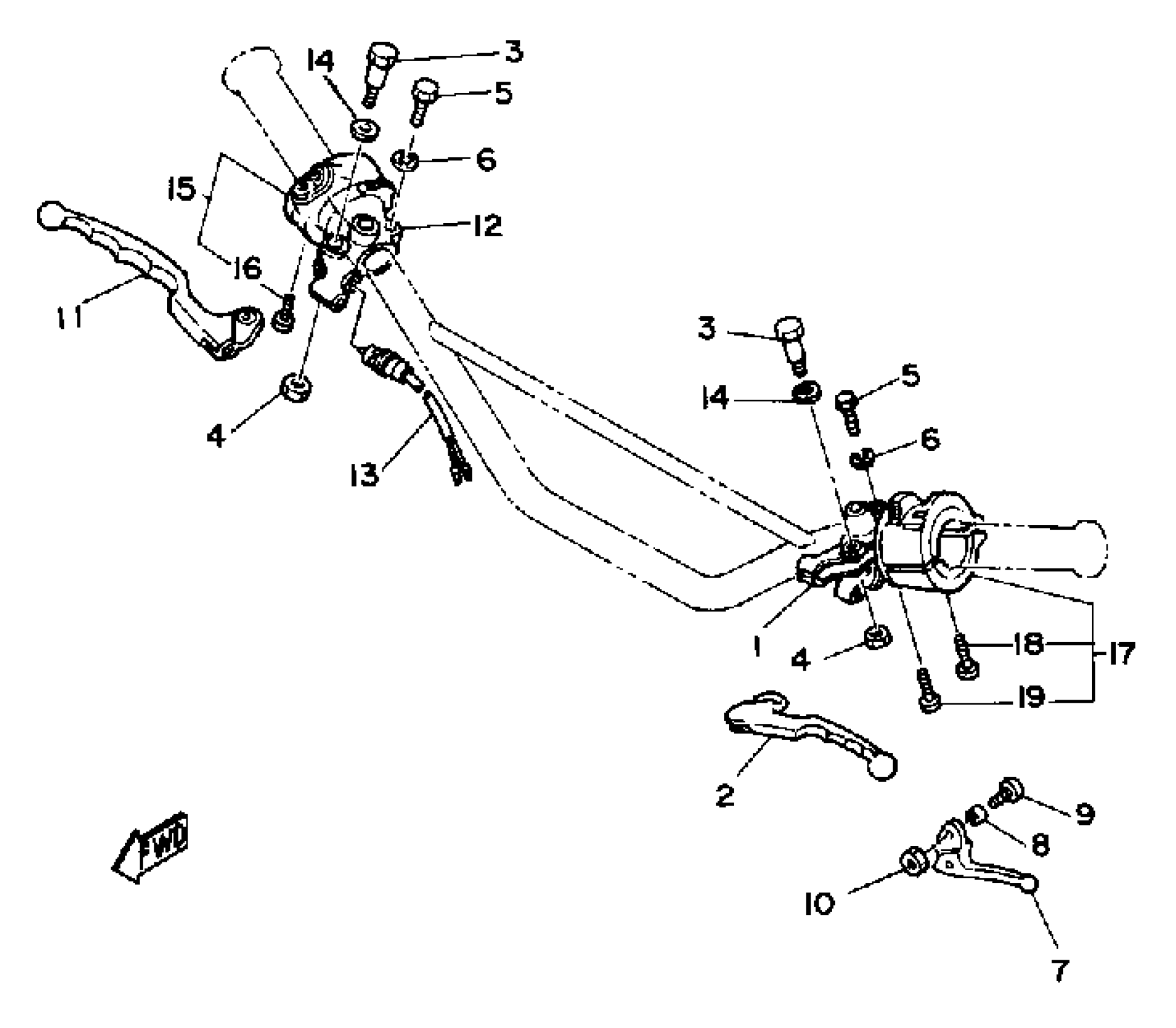

Find the part on the Handle Switch - Lever diagram for your 1980 Yamaha XT500 (XT500G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha XT500 (XT500G) Handle Switch - Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, LEVER (L.H)

583-82911-02-00

—

$67.22

In stock

2

LEVER L

2H0-83912-31-00

1

$26.37

In stock

3

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

4

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

5

BOLT, HEXAGON

97013-06022-00

1

$1.20

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

LEVER, DECOMPRESSION

583-83981-00-00

1
Out of stock

8

COLLAR, LEVER 1

5BE-83913-00-00

1
Out of stock

9

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

10

NUT, U

95617-05100-00

1

$6.68

In stock

11

LEVER R

2H0-83922-31-00

1

$23.62

In stock

12

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

1
Out of stock

13

FRONT STOP SWITCH ASSY

395-83980-09-00

—

$34.84

In stock

14

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

15

SWITCH, HANDLE 1

3H6-83976-00-00

1
Out of stock

16

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

17

SWITCH, HANDLE 3

1M1-83973-50-00

1
Out of stock

18

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

19

SCREW, PAN HEAD

98517-05030-00

—

$7.92

In stock
