1980 Yamaha XT500 (XT500G) Stand - Footrest Diagram

← All diagrams

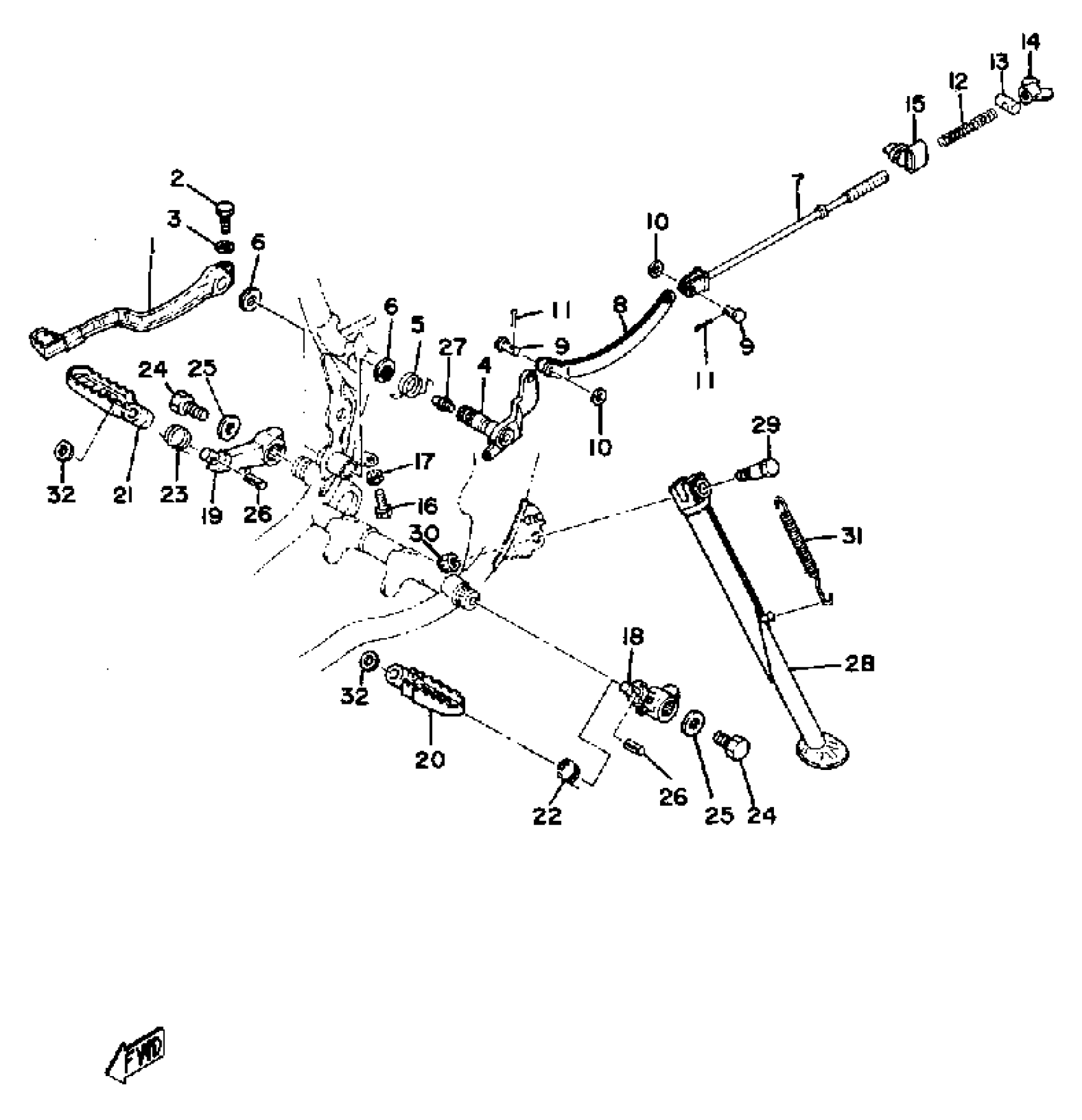

Find the part on the Stand - Footrest diagram for your 1980 Yamaha XT500 (XT500G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha XT500 (XT500G) Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

1U6-27211-00-93

1
Out of stock

2

BOLT (1T1)

90109-06470-00

1
Out of stock

3

WASHER, SPRING

92995-06100-00

1
Out of stock

4

LEVER, BRAKE PEDAL

1E6-27252-00-00

1
Out of stock

5

SPRING, TORSION

90508-32278-00

1
Out of stock

6

COVER, DUST

498-27235-00-00

1
Out of stock

7

ROD, BRAKE

583-27231-00-00

1
Out of stock

8

ROD, JOINT

583-27241-00-00

1
Out of stock

9

PIN, CLEVIS

90240-08051-00

1
Out of stock

10

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

11

PIN, COTTER

91490-20025-00

1
Out of stock

12

SPRING, (180-27236-00)

90501-10245-00

1
Out of stock

13

PIN 1562723700

90249-12008-00

1
Out of stock

14

NUT (25K)

90179-06411-00

1
Out of stock

15

COVER

1E6-27244-00-00

1
Out of stock

16

SCREW 341272170000

90153-06008-00

—
Out of stock

17

NUT, HEXAGON (371 447)

90170-06184-00

—
Out of stock

18

BRACKET, FOOTREST 1

2Y0-27412-00-33

1
Out of stock

19

BRACKET, FOOTREST 2

2Y0-27422-00-33

1
Out of stock

20

FOOTREST 1

583-27411-00-00

1
Out of stock

21

FOOTREST 2

583-27421-00-00

1
Out of stock

22

SPRING, TORSION

90508-26277-00

1
Out of stock

23

SPRING, TORSION

90508-26276-00

1
Out of stock

24

BOLT,HEXAGON

97017-10016-00

—
Out of stock

25

WASHER, PLATE (583)

90201-12631-00

—
Out of stock

26

PIN, SPRING (6H4)

91690-30020-00

1
Out of stock

27

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

28

STAND, SIDE

2Y0-27311-00-33

1
Out of stock

29

BOLT

90109-10473-00

—
Out of stock

30

NUT, U

90185-10037-00

—
Out of stock

31

SPRING, TENSION (498)

90507-29021-00

—
Out of stock

32

WASHER (583)

90201-10639-00

—
Out of stock
