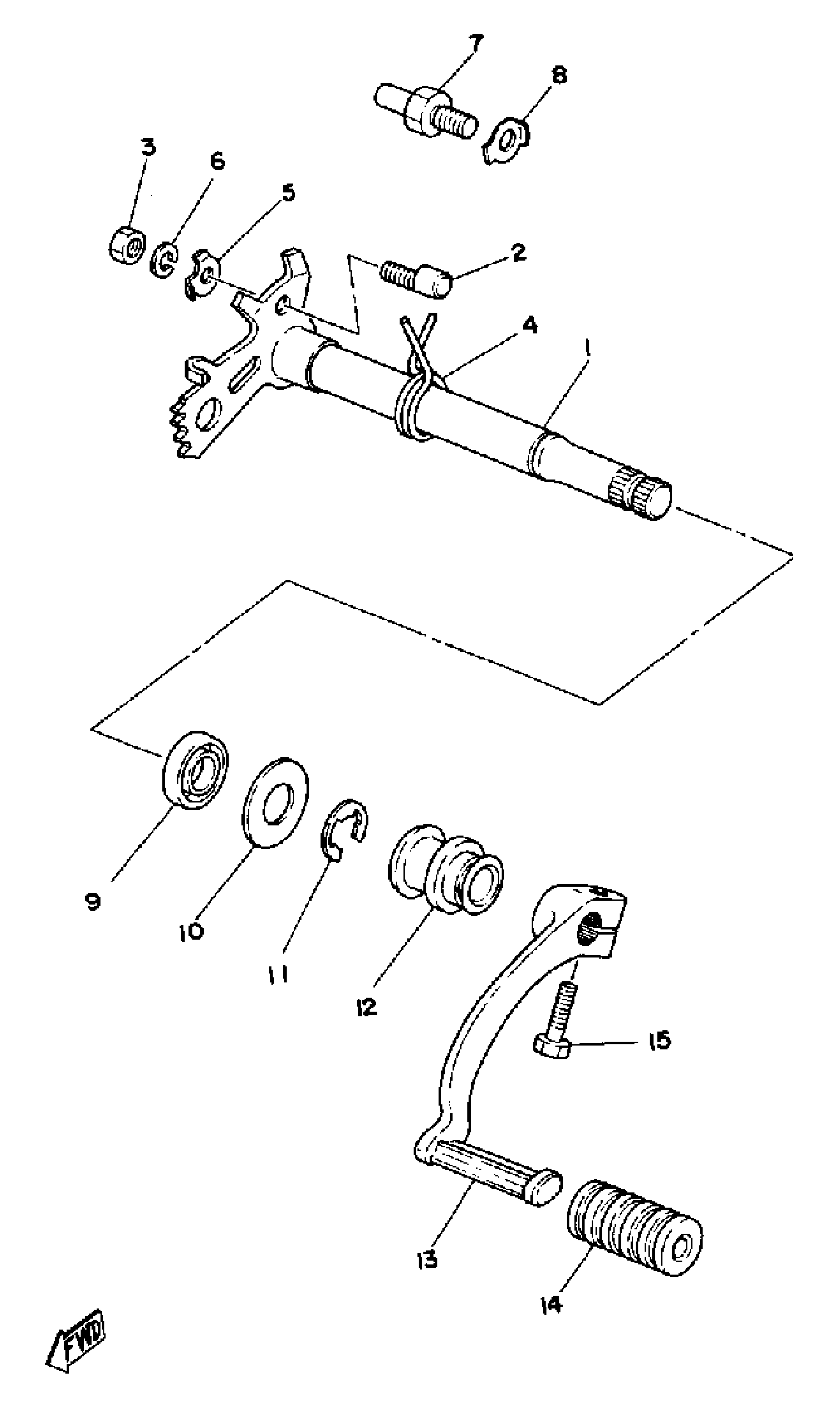

Yamaha XT500G (XT500) 1980 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT COMP.

2J2-18103-00-00

$95.99

2

SCREW 214181860000

90149-06017-00

$7.49

3

NUT, HEXAGON

95380-06600-00

Unavailable

4

SPRING TORSION 214181240000

90508-32052-00

$7.49

5

WASHER, LOCK

90215-06016-00

$3.50

6

WASHER, SPRING

92995-06100-00

Unavailable

7

STOPPER, SCREW

278-18127-01-00

$17.49

8

WASHER, LOCK (583 SHIFT)

90215-08115-00

$7.49

9

OIL SEAL (14X24X6-256)

93109-14010-00

$13.49

10

WASHER PLATE 248181370000

90201-14220-00

$8.49

11

. CIRCLIP

99001-12600-00

Unavailable

12

BOOTS, SEALING

583-18131-00-00

$17.49

13

PEDAL, SHIFT

3UL-18111-00-00

Unavailable

14

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

15

BOLT, HEXAGON

97017-06020-00

$4.06
