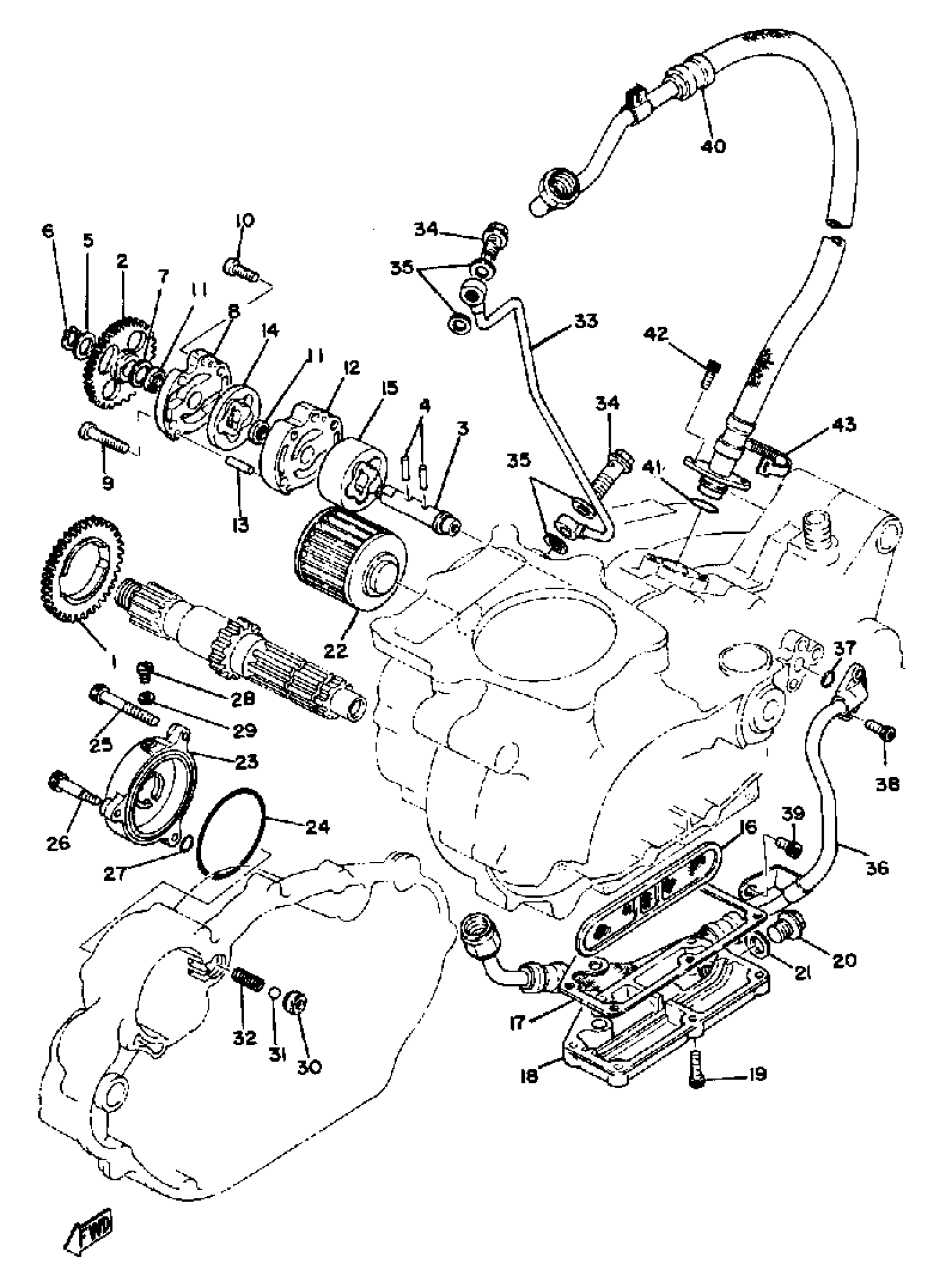

Yamaha XT500G (XT500) 1980 OIL PUMP - OIL CLEANER Diagram

#

Description
Price

1

GEAR, DRIVE

583-13324-00-00

Unavailable

2

GEAR, DRIVEN

583-13325-00-00

Unavailable

3

SHAFT, PUMP

583-13314-01-00

Unavailable

4

PIN,DOWEL

93603-17070-00

$4.14

5

WASHER, PLAIN(735)

90201-10119-00

Unavailable

6

CIRCLIP(10W)

99009-10400-00

$4.73

7

WASHER PLATE 164185720000

90201-12166-00

$9.49

8

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

8

COVER & HOUSING COMP, OIL PUMP

99999-00996-00

Unavailable

8

COVER & HOUSING COMP, OIL PUMP

99999-00996-00

Unavailable

9

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

10

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

11

OIL SEAL (11X15X3-341)

93104-11038-00

$8.49

12

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

12

COVER & HOUSING COMP, OIL PUMP

99999-00996-00

Unavailable

12

COVER & HOUSING COMP, OIL PUMP

99999-00996-00

Unavailable

13

PIN,DOWEL (620)

93604-22050-00

Unavailable

14

ROTOR 1 ASSY

583-13310-01-00

Unavailable

15

ROTOR 2 ASSY

583-13320-00-00

Unavailable

16

STRAINER, OIL

583-13411-00-00

Unavailable

17

GASKET, STRAINER COVER

3HT-13414-00-00

Unavailable

18

COVER, STRAINER

583-13417-01-00

Unavailable

19

BOLT,SOCKET

91317-06020-00

Unavailable

20

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

21

GASKET

214-11198-01-00

Unavailable

22

PLUG

4X7-13419-00-00

Unavailable

23

COVER, OIL ELEMENT

583-13447-01-00

Unavailable

24

O-RING (583 OIL CLEANER)

93210-64297-00

Unavailable

25

BOLT,SOCKET

91317-06060-00

Unavailable

26

BOLT (2H0)

90109-06511-00

Unavailable

27

O-RING

93210-07438-00

Unavailable

28

SCREW (583)

90149-05110-00

Unavailable

29

GASKET

90430-05126-00

Unavailable

30

SEAT, CHECK BALL

583-13113-00-00

Unavailable

31

BALL

93503-08007-00

Unavailable

32

SPRING (583 OIL CLEANER)

90501-05378-00

Unavailable

33

PIPE, DELIVERY 1

583-13161-01-00

Unavailable

34

BOLT, UNION

90401-08006-00

Unavailable

35

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

36

HOSE, OIL 1

583-13464-00-00

Unavailable

37

O-RING (371)

93210-10197-00

Unavailable

38

BOLT,SOCKET

91317-06016-00

Unavailable

39

BOLT,SOCKET

91317-06012-00

Unavailable

40

HOSE, OIL 2

583-13465-02-00

Unavailable

41

O-RING (341)

93210-15171-00

Unavailable

42

BOLT,SOCKET

91317-06016-00

Unavailable

43

BAND, SWITCH CORD

437-83936-01-00

Unavailable
