- XT500G (XT500) 1980
ELECTRICAL 1

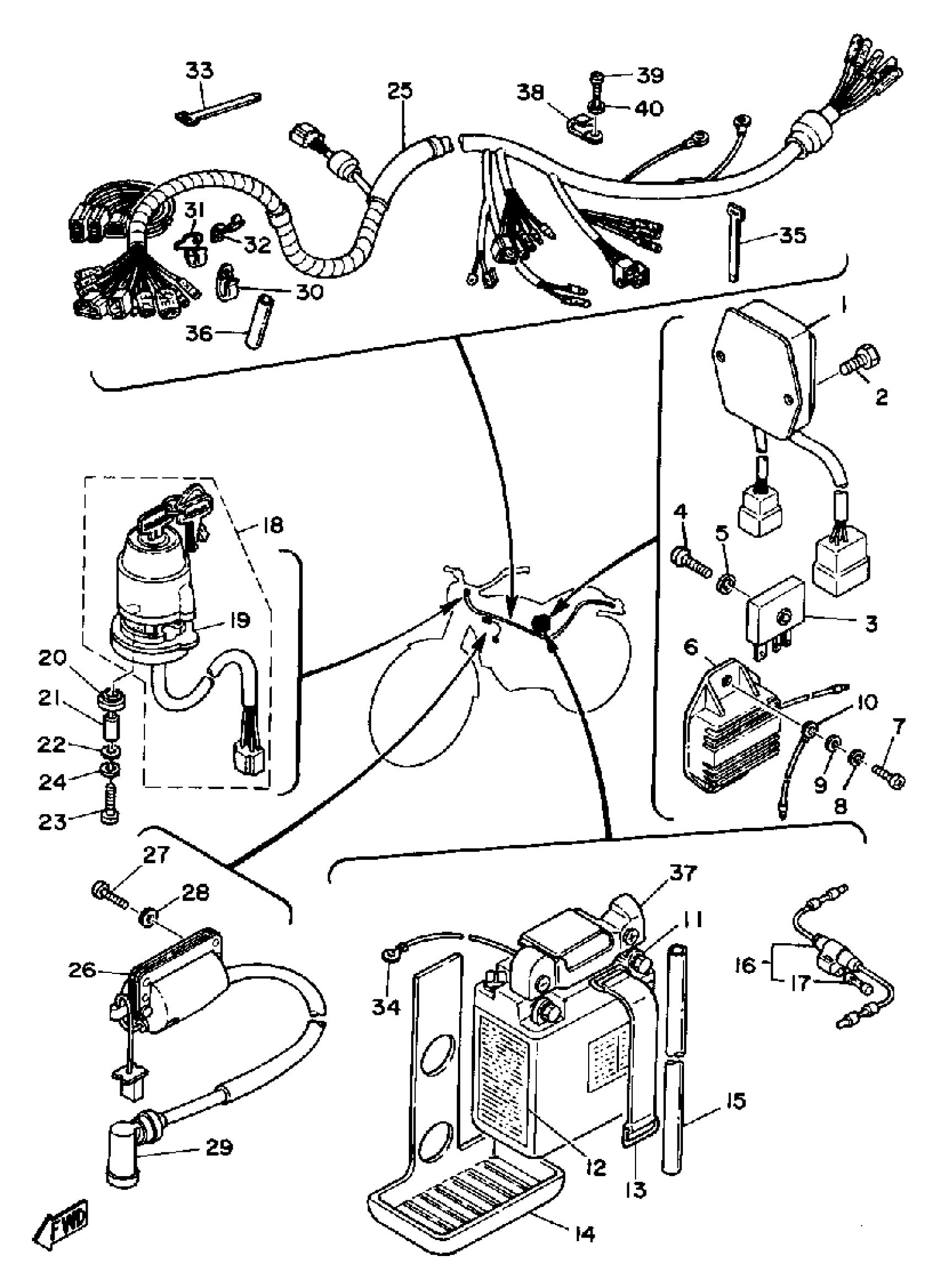

Yamaha XT500G (XT500) 1980 ELECTRICAL 1 Diagram
#
1
CDI UNIT ASSEMBLY
3H6-85540-50-00
Unavailable
3
RECTIFIER ASSY
353-81970-M2-00
Unavailable
4
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
6
VOLTAGE REG. ASSEMBLY
(3H6-81910-61-00)
Unavailable
8
WASHER, SPRING
92995-06100-00
Unavailable
10
WIRE, EARTH LEAD
(47X-82519-00-00)
Unavailable
11
6N6-3B-1 YUASA BATTERY
6N6-3B1Y0-00-00
Unavailable
12
LABEL, BATTERY
40A-82141-G0-00
Unavailable
16
FUSE HOLDER ASSY
1E6-82150-00-00
Unavailable
17
FUSE (10A)
1E6-82151-00-00
Unavailable
18
MAIN SWITCH ASSEMBLY
1E6-82508-01-00
Unavailable
19
. DAMPER, MAIN SWITCH
437-82555-00-00
Unavailable
20
DAMPER, STOPPER
1M1-82556-00-00
Unavailable
21
COLLAR, MAIN SWITCH
437-82516-00-00
Unavailable
22
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
23
SCREW, PANHEAD (A93)
98580-05525-00
Unavailable
24
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
25
WIRE HARNESS ASSEMBLY
(3H6-82590-60-00)
Unavailable
26
IGNITI0N C0IL ASSY
2J2-82310-51-00
Unavailable
27
SCREW PAN HEAD
98580-06020-00
Unavailable
29
PLUG CAP ASSY
7KA-82370-00-00
Unavailable
29
PLUG CAP ASSY
56J-82370-00-00
Unavailable
30
CLAMP
(90465-10018-00)
Unavailable
31
CLAMP
90465-10090-00
Unavailable
32
CLAMP
(90465-08144-00)
Unavailable
33
BAND, SWITCH CORD
437-83936-01-00
Unavailable
34
WIRE, EARTH LEAD
5F7-82519-00-00
Unavailable
35
BAND, SWITCH CORD
437-83936-01-00
Unavailable
36
HOSE
(90446-07114-00)
Unavailable
37
COVER, BATTERY
1E6-82129-00-00
Unavailable
38
CLAMP
90465-08028-00
Unavailable
40
WASHER, SPRING
92995-06100-00
Unavailable
