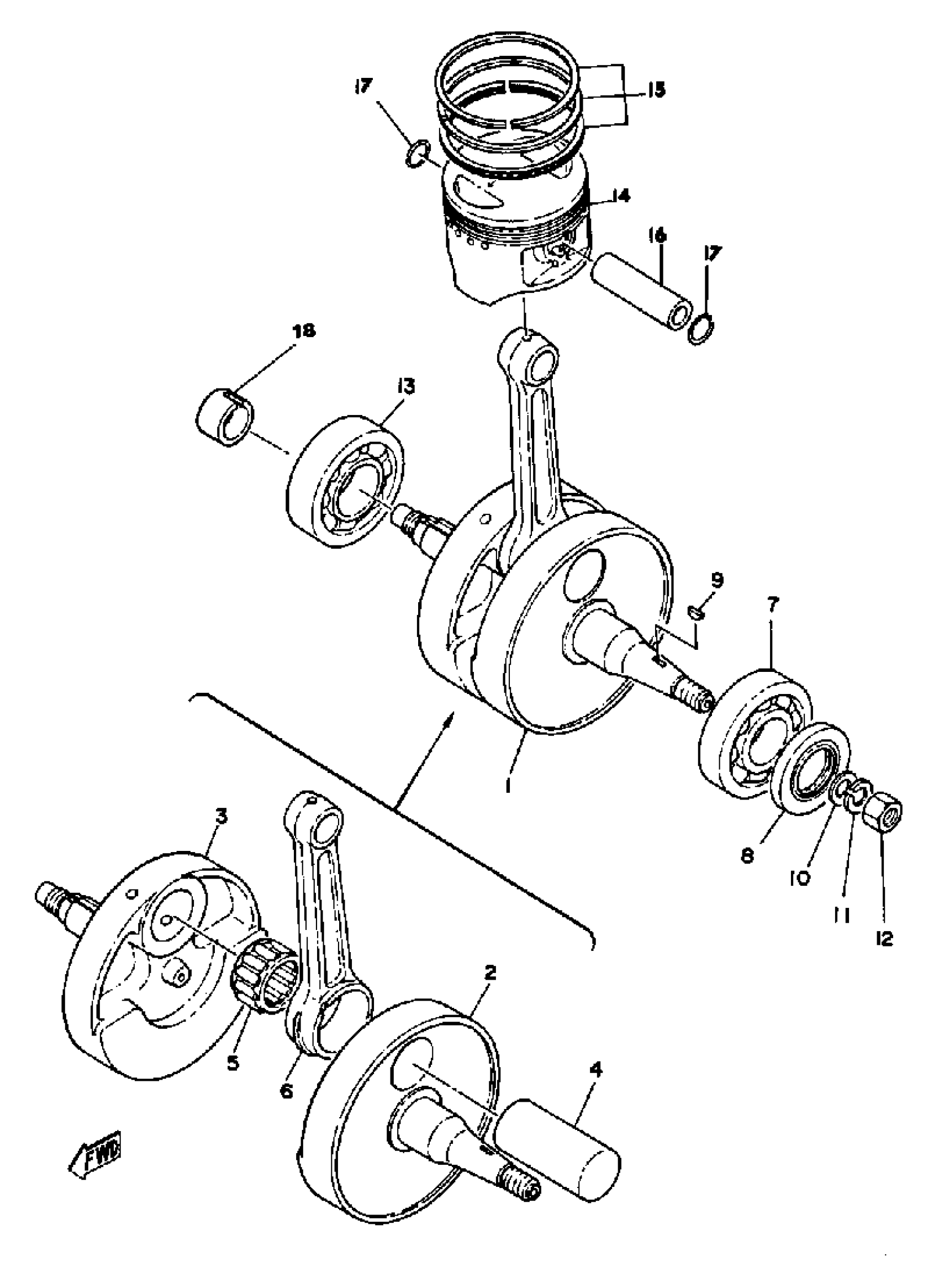

Yamaha XT500G (XT500) 1980 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

(583-11400-00-00)

Unavailable

2

CRANK 1

(583-11412-00-00)

Unavailable

3

CRANK 2

(583-11422-00-00)

Unavailable

4

PIN, CRANK 1

583-11681-01-00

$63.99

5

BRG,CYL-CAL ROLLER 46.8G TM

93310-635A5-00

$76.99

6

ROD, CONNECTING

583-11651-00-00

Unavailable

7

BEARING(3KW)

93306-30630-00

$73.99

8

OIL SEAL (30X60X6-583)

93102-30145-00

$13.99

9

KEY, WOODRUFF

90280-05001-00

$12.49

10

WASHER, PLATE (583)

90201-12593-00

$9.49

11

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

12

NUT(55K)

90170-12347-00

$10.49

13

BEARING (3GV)

93306-30702-00

$74.99

14

PISTON (STD) 0.95

583-11631-02-95

$93.99

14

PISTON (1ST O/S)

583-11635-02-00

Unavailable

14

PISTON (2ND O/S)

583-11636-02-00

Unavailable

14

PISTON 3 O/S 0.75

583-11637-02-00

Unavailable

14

PISTON 4 O/S 1.00

583-11638-02-00

Unavailable

15

PISTON RING SET

583-11610-02-00

Unavailable

15

PISTON RING SET (1ST O/S)

583-11610-12-00

Unavailable

15

PISTON RING SET (2ND O/S)

583-11610-22-00

Unavailable

15

PISTON RINGSET 3RD (583-11610-31)

583-11610-32-00

Unavailable

15

GEAR, PRI DRIVE

583-16111-00-00

Unavailable

16

PIN, PISTON

583-11633-00-00

Unavailable

17

CIRCLIP 341116340000

93450-22027-00

Unavailable

18

COLLAR (2J2)

90387-20644-00

Unavailable
