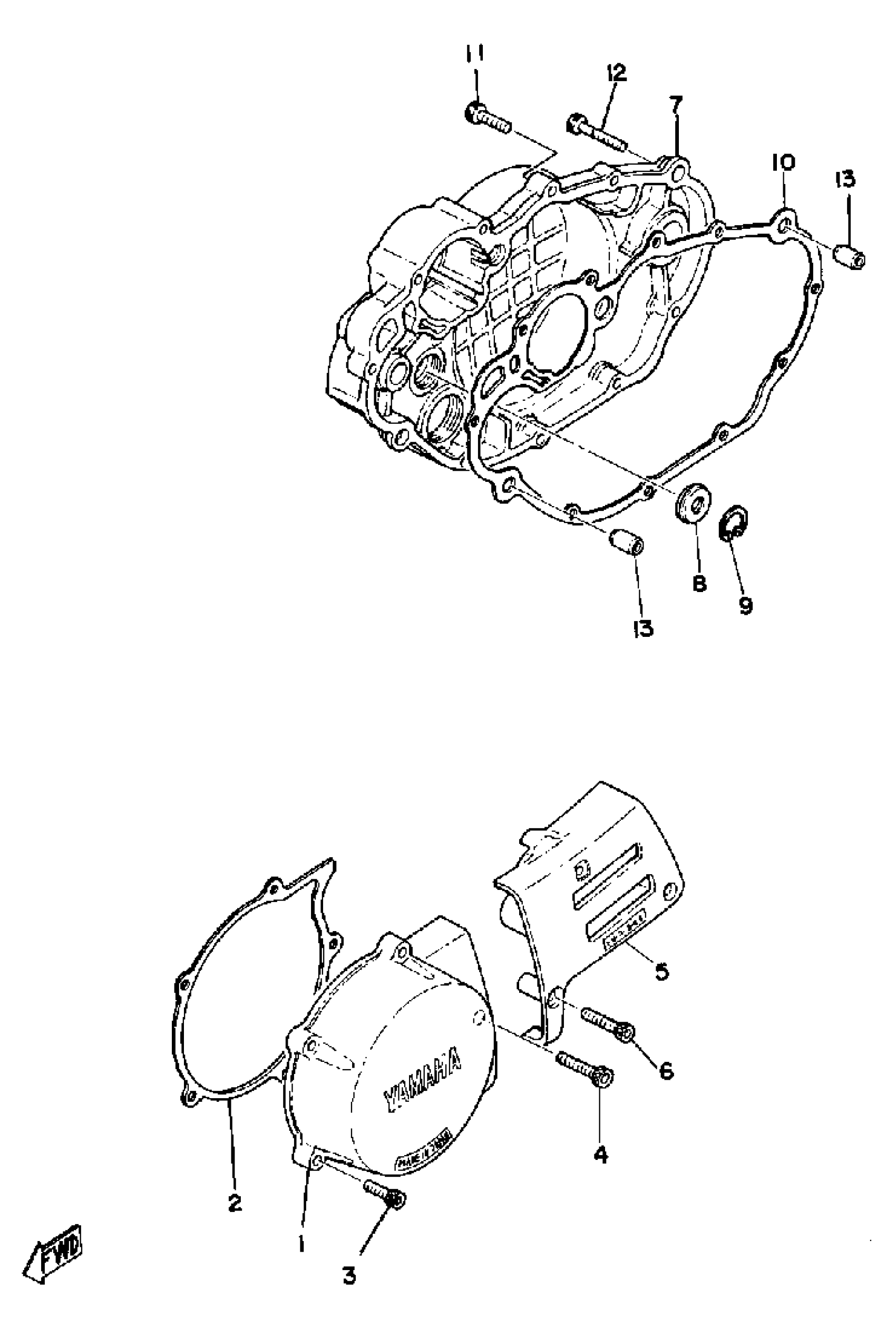

Yamaha XT500G (XT500) 1980 CRANKCASE COVER Diagram

COVER, CRANKCASE L

583-15411-00-00

Unavailable

GASKET, CRANKCASE COVER 1

3HT-15451-00-00

$24.99

BOLT,SOCKET

91317-06025-00

$5.60

BOLT,SOCKET

91317-06035-00

Unavailable

COVER, CRANKCASE R

583-15421-00-00

Unavailable

BOLT,SOCKET

91317-06035-00

Unavailable

COVER, CRANKCASE 3

(3H6-15431-00-98)

Unavailable

OIL SEAL (14X25X5.5-583)

93101-14089-00

$12.49

CIRCLIP

99009-25500-00

$7.49

CRANKCASE COVER 3 GASKET

3HT-15462-R1-00

$22.99

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

BOLT,SOCKET

91317-06040-00

$3.76

PIN, DOWEL

99530-12016-00

$4.89
