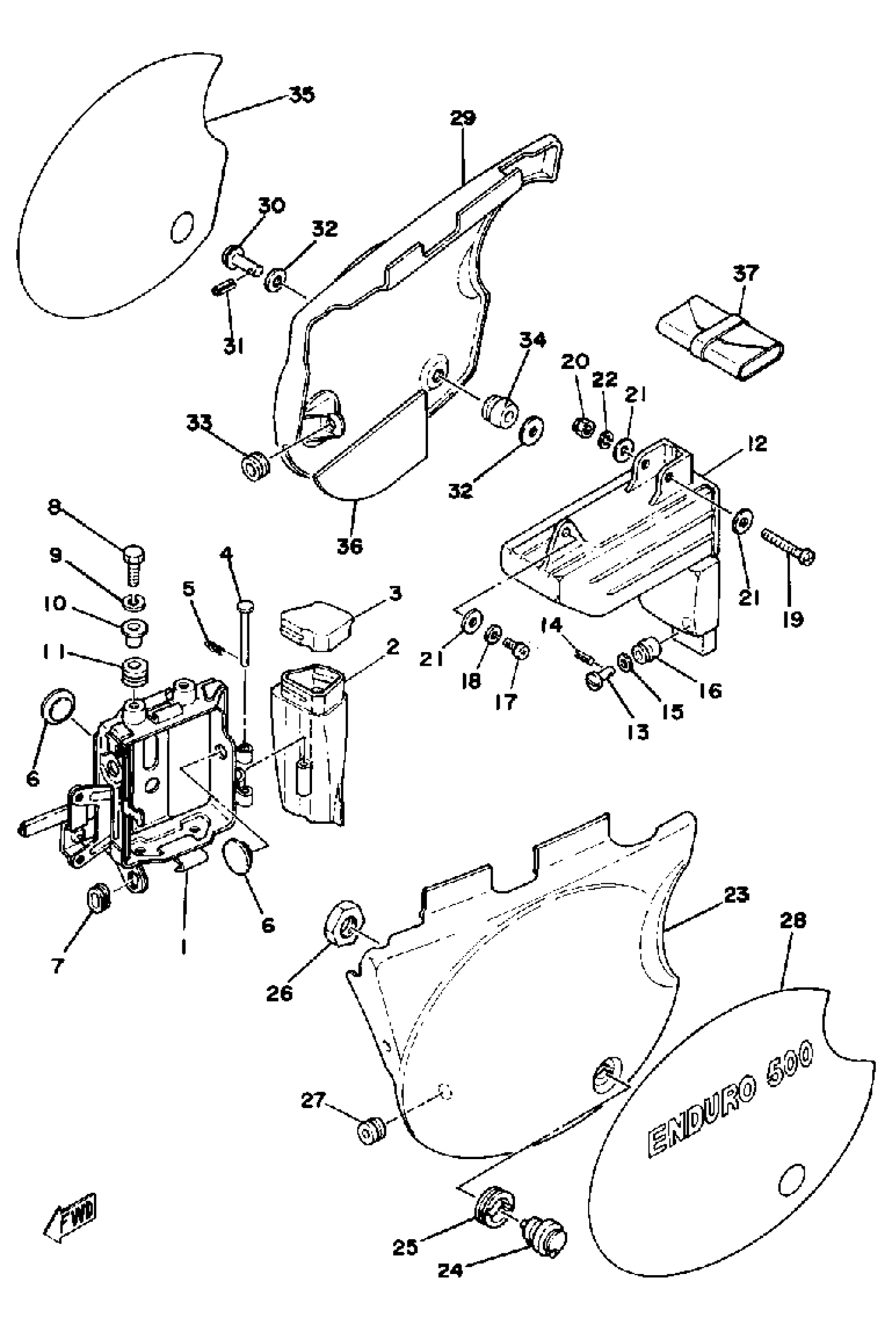

Yamaha XT500F (XT500) 1979 SIDE COVER - BATTERY BOX Diagram

#

Description
Price

1

BOX, BATT.

2H0-21240-00-00

Unavailable

2

BOX

1E6-21245-00-00

Unavailable

3

CAP, TOOL BOX

1E6-21399-00-00

Unavailable

4

PIN, CLEVIS

91701-05055-00

$7.49

5

CLIP (156-83525-00)

90468-10050-00

$3.05

6

PAD, BATTERY

371-82121-00-00

$8.99

7

GROMMET (583 SIDE COVER)

90480-01176-00

$11.49

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, SPRING

92995-06100-00

Unavailable

10

COLLAR 437216330000

90387-07391-00

Unavailable

11

GROMMET 839774310000

90480-14023-00

$7.49

12

BOX, TOOL

1T2-21171-00-00

Unavailable

13

KNOB, SIDE COVER

583-21714-00-00

$8.99

14

PIN, SPRING (583)

91609-25018-00

$7.49

15

WASHER, PLATE

90201-06095-00

$8.49

16

DAMPER, SIDE COVER

583-21747-00-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

18

WASHER, SPRING

92907-06100-00

Unavailable

19

SCREW, PAN

98507-06045-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

COVER, SIDE

4T9-21711-00-00

Unavailable

24

LOCK ASSY 2

1E6-21708-00-00

Unavailable

25

GROMMET (1E6)

90480-24186-00

Unavailable

26

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable

27

GROMMET (583 SIDE COVER)

90480-01176-00

$11.49

28

EMBLEM 6

(2H0-21786-10-00)

Unavailable

29

COVER, SIDE (R.H)

4R9-21721-00-00

Unavailable

30

KNOB, SIDE COVER

583-21714-00-00

$8.99

31

PIN, SPRING (583)

91609-25018-00

$7.49

32

WASHER, PLATE

90201-06095-00

$8.49

33

DAMPER, SIDE COVER

583-21747-00-00

Unavailable

34

GROMMET (583 SIDE COVER)

90480-01176-00

$11.49

35

EMBLEM 7

(2H0-21787-10-00)

Unavailable

36

INSULATOR, SIDE CVR (1T1-2174A-01)

1T1-2174A-02-00

Unavailable

37

TOOL KIT (1E6-28100-10)

1JN-W2810-00-00

Unavailable
