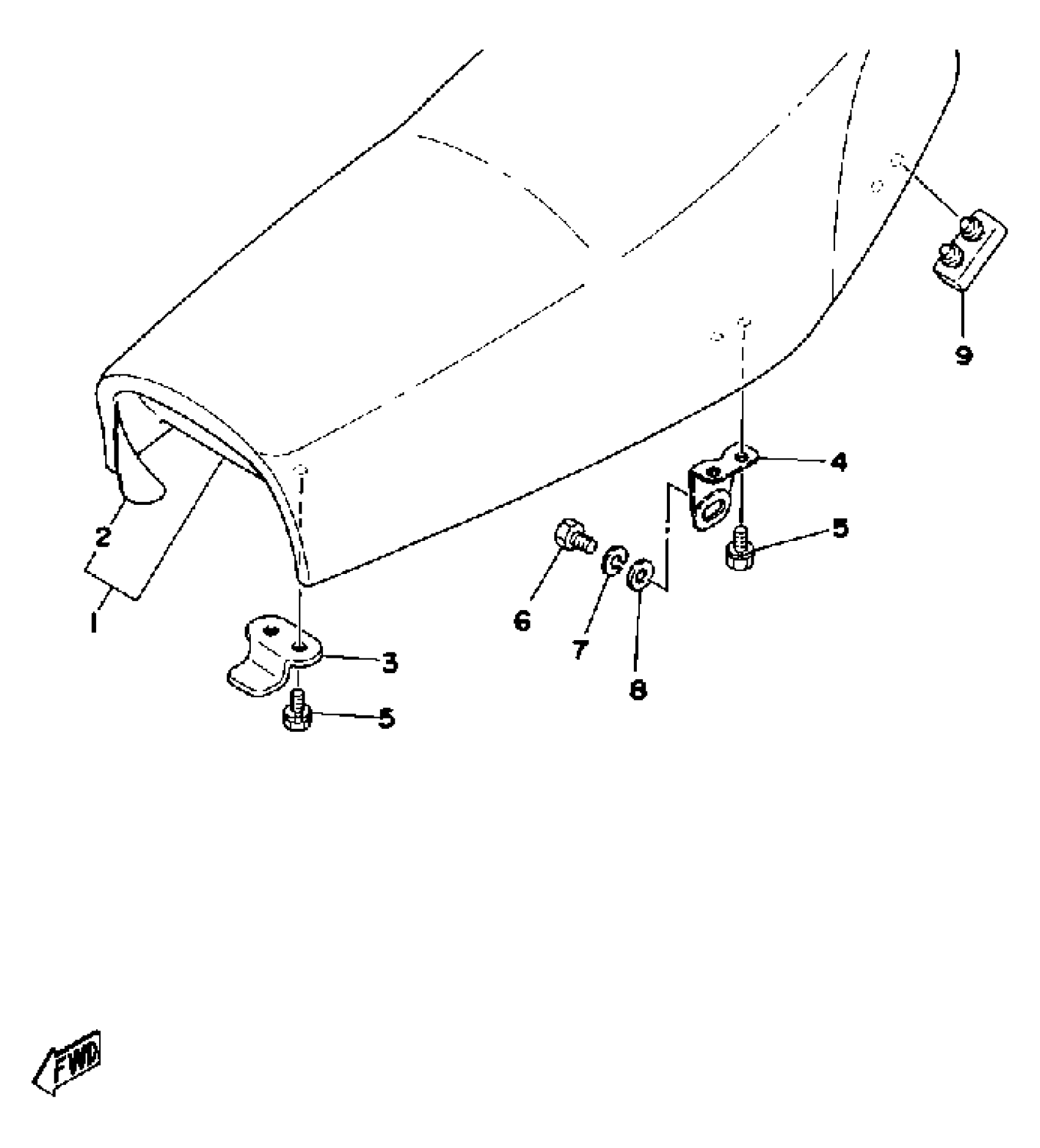

Yamaha XT500F (XT500) 1979 SEAT Diagram

#

Description

Price

1

DOUBLE SEAT ASSEMBLY

(2H0-W2472-00-00)

Unavailable

2

. COVER, DOUBLE SEAT (1E6-24731-00)

2H0-24731-00-00

Unavailable

3

BRACKET, SEAT

2Y0-24748-00-00

Unavailable

4

BRACKET, SEAT

1T1-24738-00-00

Unavailable

5

BOLT (583)

90101-06304-00

$5.44

6

BOLT, HEXAGON

97013-08016-00

$1.24

7

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

8

.. WASHER, PLATE

92990-08600-00

$2.17

9

DAMPER, SEAT

583-24724-00-00

Unavailable

10

UNAVAILABLE IN PRICE BOOK

1E6-24720-00-00

Unavailable

11

BOLT

(90109-08444-00)

Unavailable
