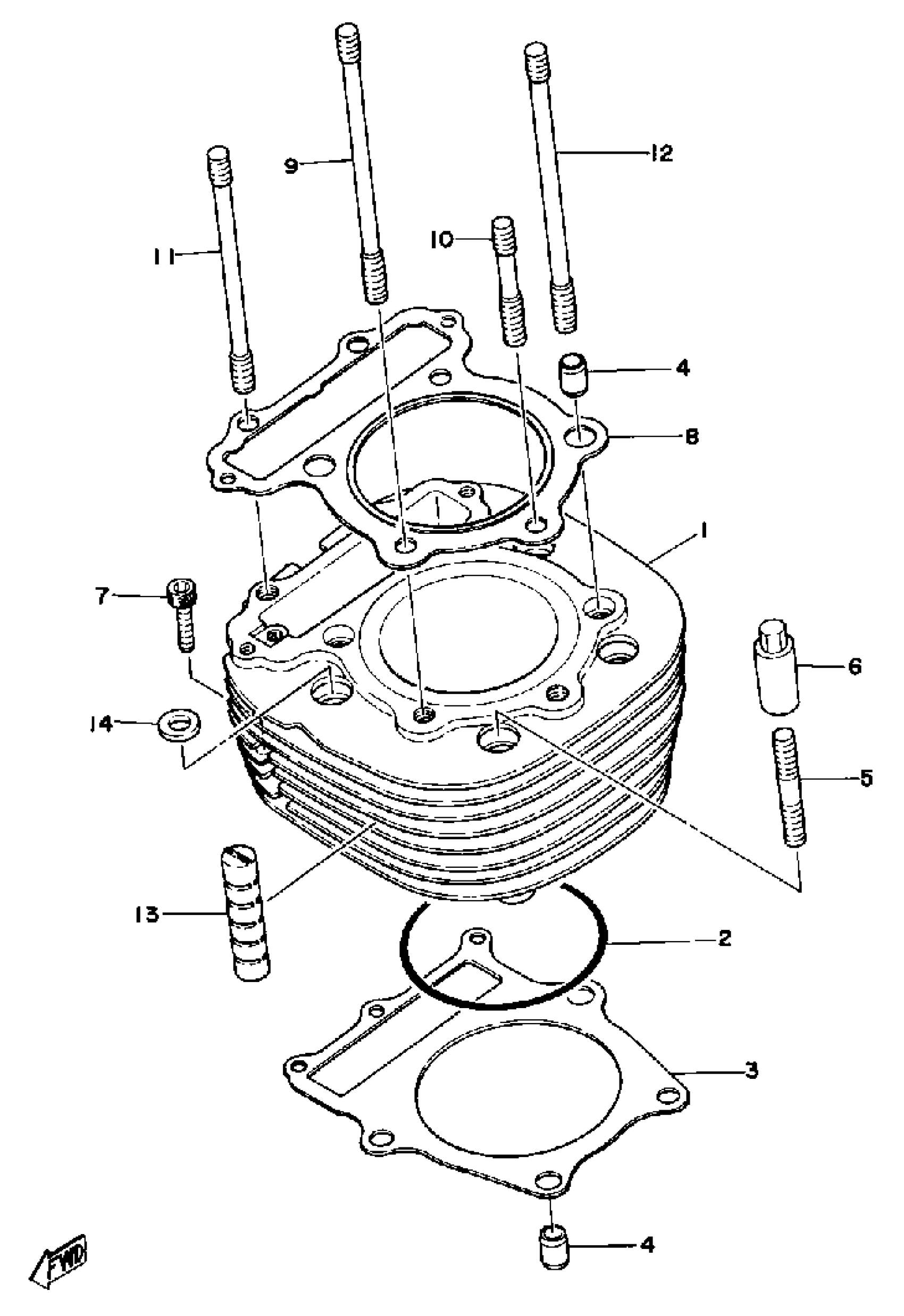

Yamaha XT500F (XT500) 1979 CYLINDER Diagram

#

Description
Price

1

CYLINDER

583-11310-00-00

Unavailable

2

O-RING (583 CYLINDER)

93210-92295-00

$10.35

3

GASKET, CYLINDER

3HT-11351-00-00

$23.67

4

PIN, DOWEL

99530-14016-00

$2.98

5

BOLT (363-11361-00)

90116-10087-00

$15.06

6

GSKTKT XT/TT500E/F

(2H0-00000-20-00)

Unavailable

6

NUT

90179-10021-00

$20.11

7

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

8

UNAVAILABLE IN PRICE BOOK (583-11181-01)

2J2-11181-01-00

Unavailable

9

BOLT, STUD (583 CYLINDER)

90116-10222-00

$15.14

10

BOLT, STUD (583 CYLINDER)

90116-10223-00

$8.61

11

BOLT, STUD (583 CYLINDER)

90116-08190-00

$4.24

12

BOLT, STUD (583)

90116-10225-00

$17.06

13

ABSORBER

583-11127-00-00

$6.28

14

WASHER, PLATE (583)

90201-10590-00

$4.63
