1979 Yamaha XT500 (XT500F) Crank - Piston Diagram

← All diagrams

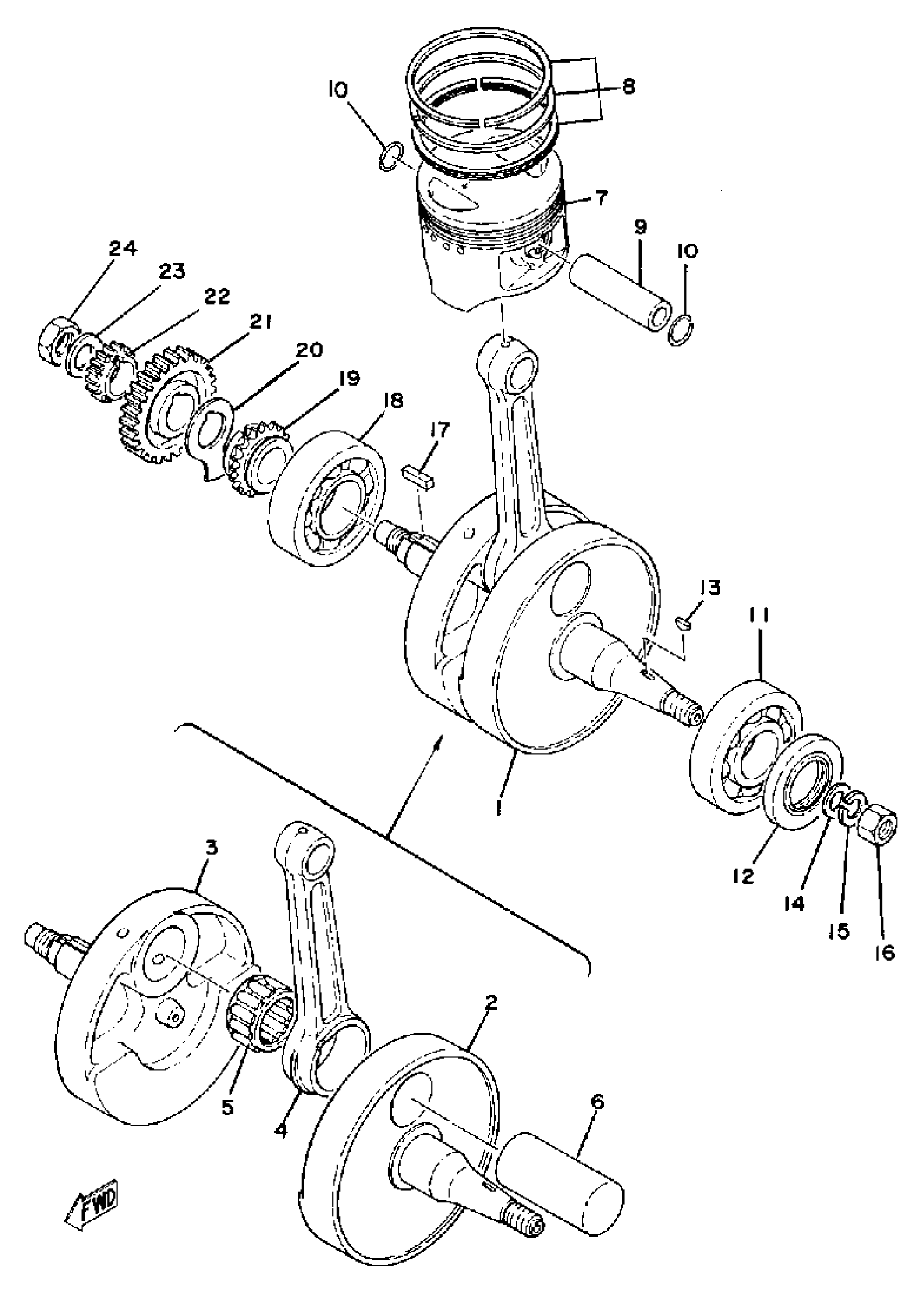

Find the part on the Crank - Piston diagram for your 1979 Yamaha XT500 (XT500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha XT500 (XT500F) Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(583-11400-00-00)

1
Out of stock

2

CRANK 1

(583-11412-00-00)

1
Out of stock

3

CRANK 2

(583-11422-00-00)

1
Out of stock

4

ROD, CONNECTING

583-11651-00-00

—

$106.66

In stock

5

BRG,CYL-CAL ROLLER 46.8G TM

93310-635A5-00

1
Out of stock

6

PIN, CRANK 1

583-11681-01-00

1
Out of stock

7

PISTON (STD) 0.95

583-11631-02-95

1

$88.09

In stock

7

PISTON (STD) 0.95

583-11631-02-95

1

$88.09

In stock

7

PISTON (STD) 0.95

583-11631-02-95

1

$88.09

In stock

7

PISTON (1ST O/S)

583-11635-02-00

—

$94.35

In stock

7

PISTON (1ST O/S)

583-11635-02-00

—

$94.35

In stock

7

PISTON (2ND O/S)

583-11636-02-00

1
Out of stock

7

PISTON (2ND O/S)

583-11636-02-00

1
Out of stock

7

PISTON 3 O/S 0.75

583-11637-02-00

1
Out of stock

7

PISTON 3 O/S 0.75

583-11637-02-00

1
Out of stock

7

PISTON 4 O/S 1.00

583-11638-02-00

1
Out of stock

7

PISTON 4 O/S 1.00

583-11638-02-00

1
Out of stock

8

PISTON RING SET

583-11610-02-00

—
Out of stock

8

PISTON RING SET (1ST O/S)

583-11610-12-00

—

$41.48

In stock

8

PISTON RING SET (2ND O/S)

583-11610-22-00

—

$67.55

In stock

8

PISTON RINGSET 3RD (583-11610-31)

583-11610-32-00

1
Out of stock

8

PISTON RINGSET 4TH (4TH O/S)

583-11610-42-00

1
Out of stock

9

PIN, PISTON

583-11633-00-00

—

$15.86

In stock

10

CIRCLIP 341116340000

93450-22027-00

—

$6.00

In stock

11

BEARING(3KW)

93306-30630-00

—

$64.14

In stock

12

OIL SEAL (30X60X6-583)

93102-30145-00

—
Out of stock

13

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

14

WASHER, PLATE (583)

90201-12593-00

—

$6.82

In stock

15

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

16

NUT(55K)

90170-12347-00

—

$8.43

In stock

17

KEY, STRAIGHT (583)

90282-07021-00

—

$7.52

In stock

18

BEARING (3GV)

93306-30702-00

—

$69.32

In stock

19

SPROCKET, CAM CHAIN DRIVE

583-11549-00-00

—
Out of stock

20

PLATE, CAM CHAIN SPROCKET

583-11533-00-00

—
Out of stock

21

GEAR, PRI DRIVE

583-16111-00-00

1
Out of stock

22

GEAR, DRIVE (21T)

583-11536-00-00

1
Out of stock

23

WASHER (517 CLUTCH)

90208-16019-00

—
Out of stock

24

NUT

90170-16425-00

—
Out of stock
