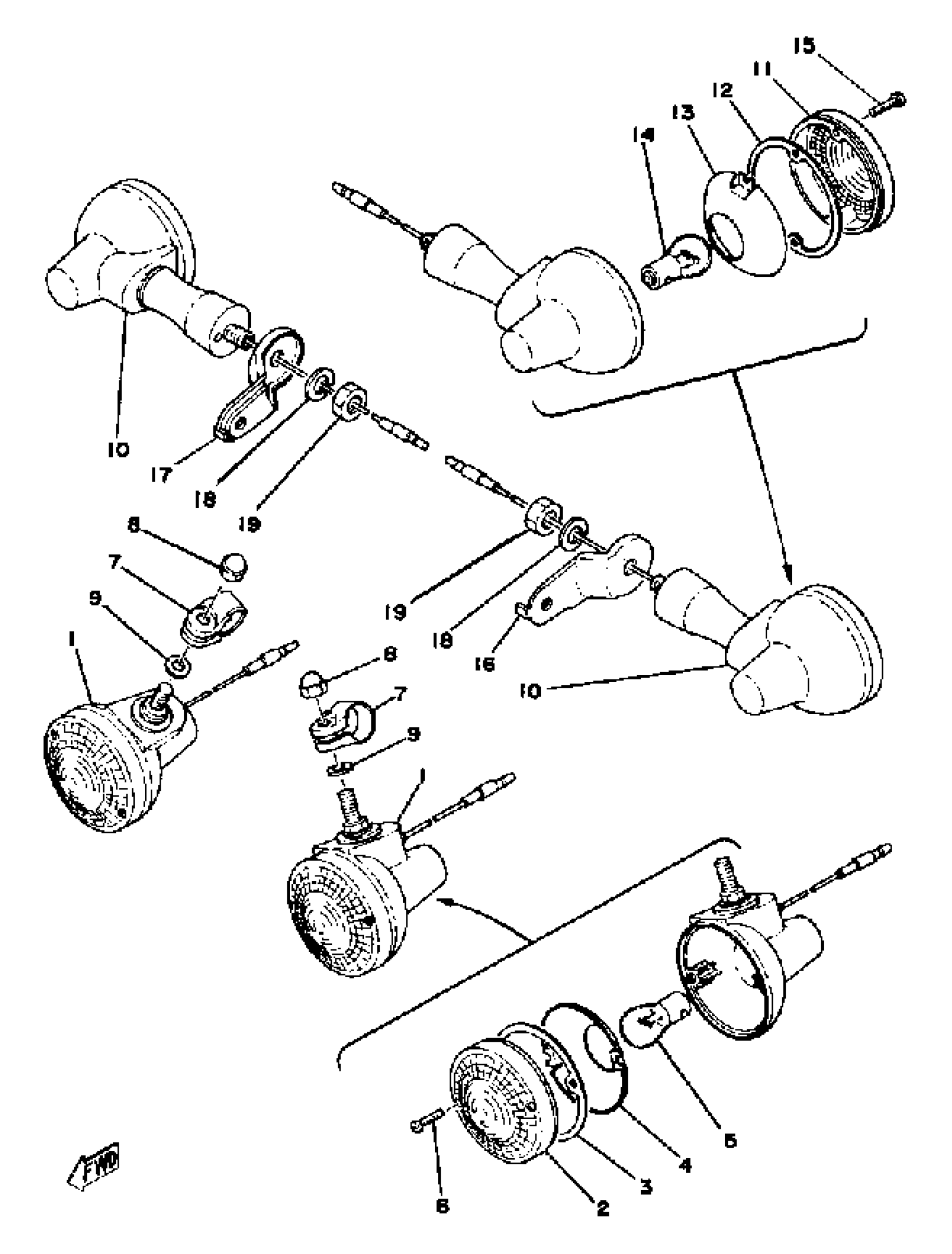

Yamaha XT500E (XT500) 1978 TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

1M1-83310-60-00

Unavailable

2

LENS, FLASHER

341-83312-70-00

Unavailable

3

. GASKET, FLASHER LENS

1M1-83313-60-00

Unavailable

4

. REFLECTOR

1M1-83309-60-00

Unavailable

5

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

6

YBS83-320 SCREW,PANH.TAPPING

97780-30120-00

Unavailable

7

STAY, FLASHER

1M1-83318-00-00

$8.99

8

NUT, CROWN

95303-08800-00

$9.49

9

WASHER (8A7)

90201-08452-00

$5.60

10

REAR FLASHER LAMP ASSY

1T9-83330-60-00

Unavailable

11

LENS, FLASHER

341-83312-70-00

Unavailable

12

. GASKET, FLASHER LENS

1M1-83313-60-00

Unavailable

13

. REFLECTOR

1M1-83309-60-00

Unavailable

14

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

15

YBS83-320 SCREW,PANH.TAPPING

97780-30120-00

Unavailable

16

STAY, REAR FLASHER (L.H)

1T2-83368-00-00

Unavailable

17

STAY, REAR FLASHER (R.H)

1T2-83369-00-00

Unavailable

18

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

19

NUT(3BM)

95314-10600-00

Unavailable
