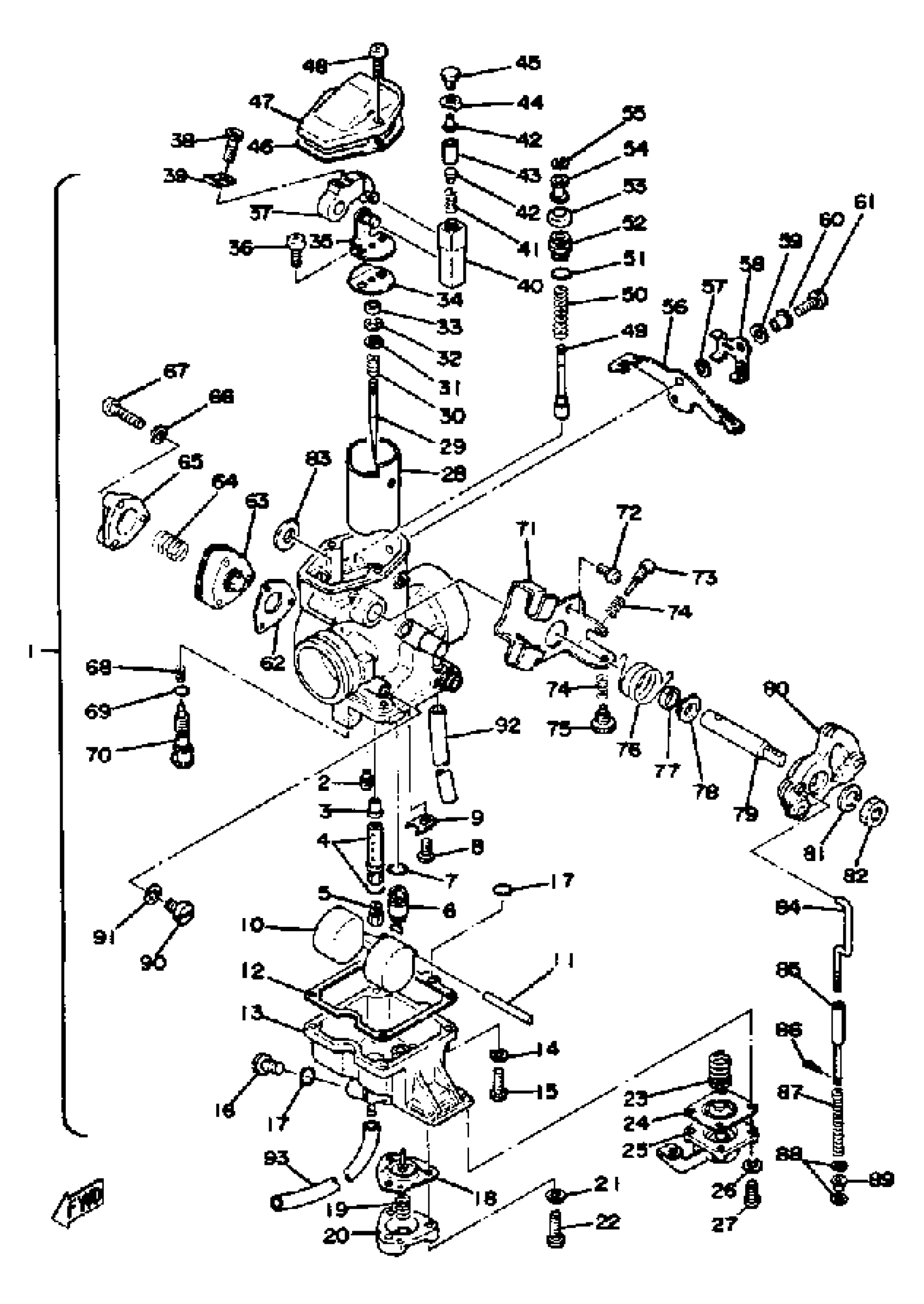

Yamaha XT500E (XT500) 1978 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

(2H0-14101-61-00)

Unavailable

1

O-RING

583-14561-00-00

$5.49

2

JET, PILOT (# 25)

193-14142-25-A0

$10.99

3

. NOZZLE, MAIN

2H0-14141-50-00

Unavailable

4

PIPE, JET NEEDLE

583-14148-00-00

Unavailable

5

JET, MAIN #220

137-14143-44-A1

$11.99

5

JET, MAIN #230

137-14143-46-A1

$13.49

5

JET, MAIN #240

137-14143-48-A1

$13.49

6

VALVE SEAT ASSY

2H0-14190-28-00

$42.99

7

O-RING

8F2-14147-00-00

$2.96

8

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

9

. PLATE

2H0-14146-00-00

Unavailable

10

. FLOAT

2H0-14185-00-00

Unavailable

11

PIN, FLOAT

537-14186-00-00

$7.99

12

GASKET, FLOAT CHAMBER

2H0-14184-00-00

$19.99

13

BODY, FLOAT CHMBR 1

(2H0-14181-11-00)

Unavailable

14

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

15

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

16

. PLUG, DRAIN

2H0-14191-00-00

Unavailable

17

O-RING

583-14561-00-00

$5.49

18

DIAPHRAGM ASSY, ACCELERATOR 2

2J2-14940-00-00

Unavailable

19

. SPRING, DIAPHRAGM

2J2-14933-00-00

Unavailable

20

COVER, DIAPHRAGM

(2J2-14958-00-00)

Unavailable

21

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

22

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

23

SPRING

(2H0-14589-00-00)

Unavailable

24

DIAPHRAGM ASSY, ACCELERATOR 1

2H0-14940-00-00

Unavailable

25

. LEVER, STARTER

2H0-14905-00-00

Unavailable

26

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

27

SCREW, PAN HEAD

98511-04012-00

Unavailable

28

VALVE, THROTTLE 1

(2H0-14112-35-00)

Unavailable

29

NEEDLE

(239-14116-24-00)

Unavailable

30

. SPRING, THRTL VALVE

2H0-14131-00-00

Unavailable

31

. WASHER, NEEDLE

2H0-14235-00-00

Unavailable

32

CLIP

3FA-14137-00-00

Unavailable

33

. RING

2H0-14194-00-00

Unavailable

34

SEAT, SPRING

(2H0-14936-00-00)

Unavailable

35

BRACKET 1

(2H0-14291-00-00)

Unavailable

36

SCREW, PAN HEAD

98511-04012-00

Unavailable

37

LEVER, THROTTL.VALV

(583-14292-00-00)

Unavailable

38

. SCREW

583-14592-00-00

Unavailable

39

WASHER

(583-14597-00-00)

Unavailable

40

CONNECTOR

(583-14274-00-00)

Unavailable

41

SPRING, DIAPHRAGM

(1T2-14933-00-00)

Unavailable

42

WASHER

(583-14558-00-00)

Unavailable

43

PIN, FLOAT

(583-14386-00-00)

Unavailable

44

WASHER

(583-14951-00-00)

Unavailable

45

SCREW

(583-14216-00-00)

Unavailable

46

GASKET, MIXING CHAMBER TOP

583-14536-00-00

Unavailable

47

TOP, MIXING CHAMBER

(583-14158-00-00)

Unavailable

48

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

49

. PLUNGER, STARTER

2H0-14171-00-00

Unavailable

50

. SPRING, PLUNGER

256-14135-00-00

Unavailable

51

. O-RING

583-14562-00-00

Unavailable

52

. CAP, PLUNGER

2H0-14174-00-00

Unavailable

53

. COVER, PLUNGER CAP

802-14173-00-00

Unavailable

54

. RING

583-14918-00-00

Unavailable

55

. CLIP

737-14137-00-00

Unavailable

56

. LEVER, STARTER 1

2H0-14175-00-00

Unavailable

57

. SPRING, CHOKE LEVER

2H0-14218-00-00

Unavailable

58

. PLATE, STARTER LVR

2H0-14178-00-00

Unavailable

59

. WASHER

2J2-14962-00-00

Unavailable

60

. RING

2J2-14194-00-00

Unavailable

61

SCREW, PAN

98507-06014-00

Unavailable

62

GASKET, ENRICHMENT PUMP

2H0-14198-00-00

Unavailable

63

ENRICHMENT PUMP BODY ASSY

2H0-14217-00-00

Unavailable

64

SPRING, DIAPHRAGM

(2H0-14933-00-00)

Unavailable

65

COVER, DIAPHRAGM

(2H0-14958-00-00)

Unavailable

66

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

67

SCREW, PAN HEAD

98517-04025-00

Unavailable

68

. SPRING, PILOT ADJUSTING

2H0-14212-00-00

Unavailable

69

O-RING, PILOT SCREW

2H0-14147-00-00

Unavailable

70

. SCREW, PILOT ADJUSTING

2H0-14211-00-00

Unavailable

71

BRACKET, THROTTLE

(583-14571-00-00)

Unavailable

72

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

73

. SCREW, GUIDE

583-14245-00-00

Unavailable

74

. SPRING, THRTL STOP

583-14133-00-00

Unavailable

75

SCREW, THRTL STOP

(583-14121-00-00)

Unavailable

76

. SPRING, THRTL VALVE

583-14131-01-00

Unavailable

77

. SEAL

583-14239-01-00

Unavailable

78

. COLLAR

583-14265-00-00

Unavailable

79

SHAFT, THRTL LEVER

(2H0-14215-00-00)

Unavailable

80

BRACKET

(2H0-14573-00-00)

Unavailable

81

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

82

NUT

812-14594-00-00

Unavailable

83

. SPACER

583-14264-00-00

Unavailable

84

. ROD

2J2-14992-00-00

Unavailable

85

. ROD

2H0-14992-00-00

Unavailable

86

. PIN, COTTER

91401-10015-00

Unavailable

87

. SPRING

2J2-14589-00-00

Unavailable

88

. WASHER

2H0-14227-00-00

Unavailable

89

. COLLAR

2H0-14534-00-00

Unavailable

90

. PLUG, SCREW

2F5-14115-00-00

Unavailable

91

.. WASHER, PLUG SCREW

584-14956-00-00

Unavailable

92

HOSE (L340)

90445-08684-00

Unavailable

93

. PIPE (43214-19700-00)

510-14197-00-00

Unavailable
