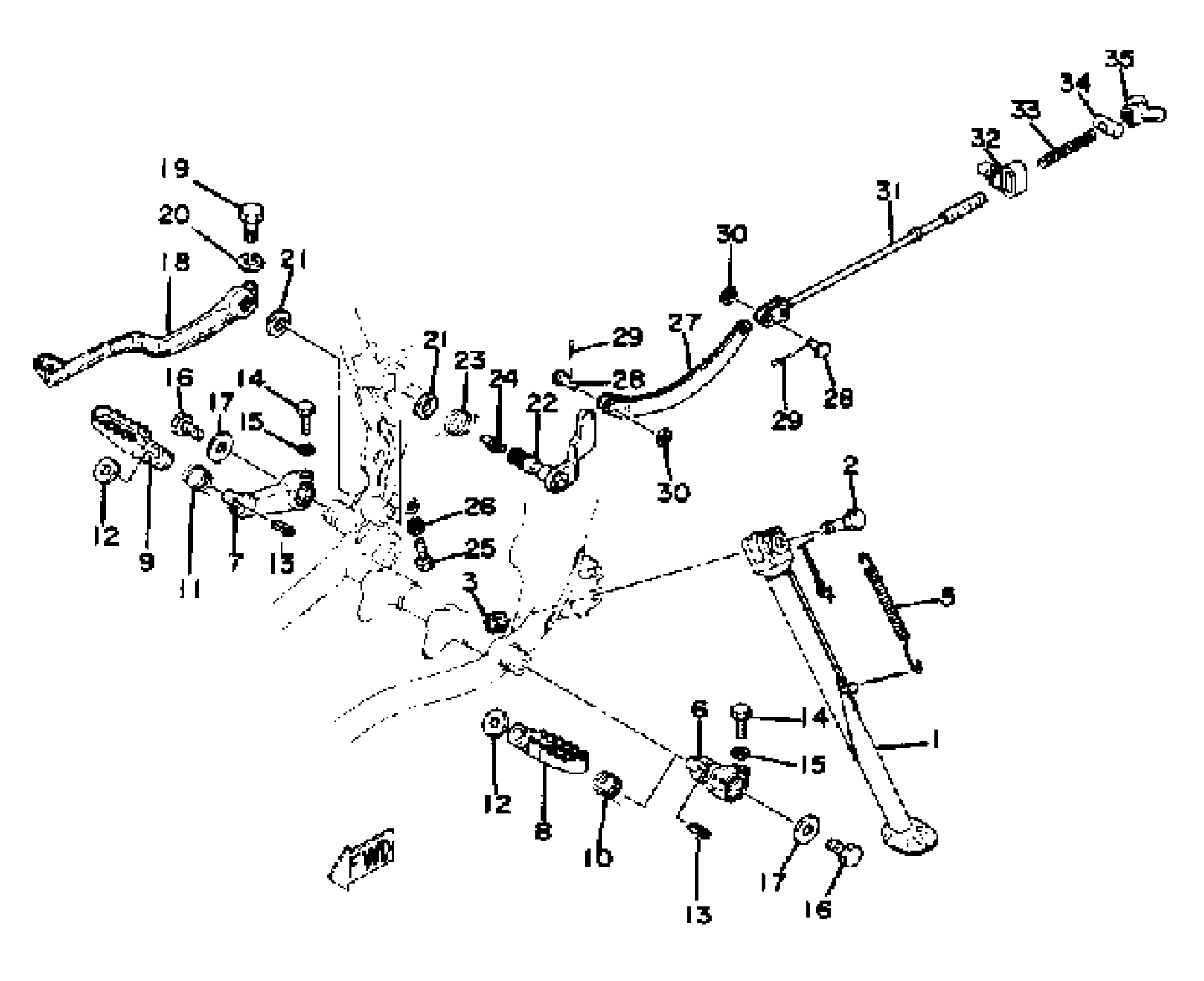

Yamaha XT500E_205001 (XT500E_205001) 1978 STAND - FOOTREST - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, SIDE (583-27311-00)

1T1-27311-00-33

Unavailable

2

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

3

NUT, CASTLE

95307-10900-00

Unavailable

4

PIN, COTTER

91490-20025-00

$1.99

5

SPRING, TENSION (498)

90507-29021-00

$23.99

6

BRACKET, FOOTREST 1

2Y0-27412-00-33

Unavailable

7

BRACKET, FOOTREST 2

2Y0-27422-00-33

Unavailable

8

FOOTREST 1

583-27411-00-00

Unavailable

9

FOOTREST 2

583-27421-00-00

Unavailable

10

SPRING, TORSION

90508-26277-00

Unavailable

11

SPRING, TORSION

90508-26276-00

Unavailable

12

WASHER, PLATE (583)

90201-12631-00

$9.49

13

PIN, SPRING (6H4)

91690-30020-00

Unavailable

14

BOLT, HEXAGON

97017-08025-00

$10.49

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

BOLT,HEXAGON

97017-10016-00

Unavailable

17

WASHER (583)

90201-10639-00

Unavailable

18

PEDAL, BRAKE

1U6-27211-00-93

Unavailable

19

BOLT (1T1)

90109-06470-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

COVER, DUST

498-27235-00-00

Unavailable

22

LEVER, BRAKE PEDAL

1E6-27252-00-00

Unavailable

23

SPRING, TORSION

90508-32278-00

Unavailable

24

NIPPLE, GREASE

93700-06M03-00

Unavailable

25

SCREW 341272170000

90153-06008-00

Unavailable

27

ROD, JOINT

583-27241-00-00

Unavailable

28

PIN, CLEVIS

90240-08051-00

Unavailable

29

PIN, COTTER

91490-20025-00

$1.99

30

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

31

ROD, BRAKE

583-27231-00-00

Unavailable

32

COVER

1E6-27244-00-00

Unavailable

33

SPRING, (180-27236-00)

90501-10245-00

Unavailable

34

PIN 1562723700

90249-12008-00

Unavailable

35

NUT (25K)

90179-06411-00

Unavailable
