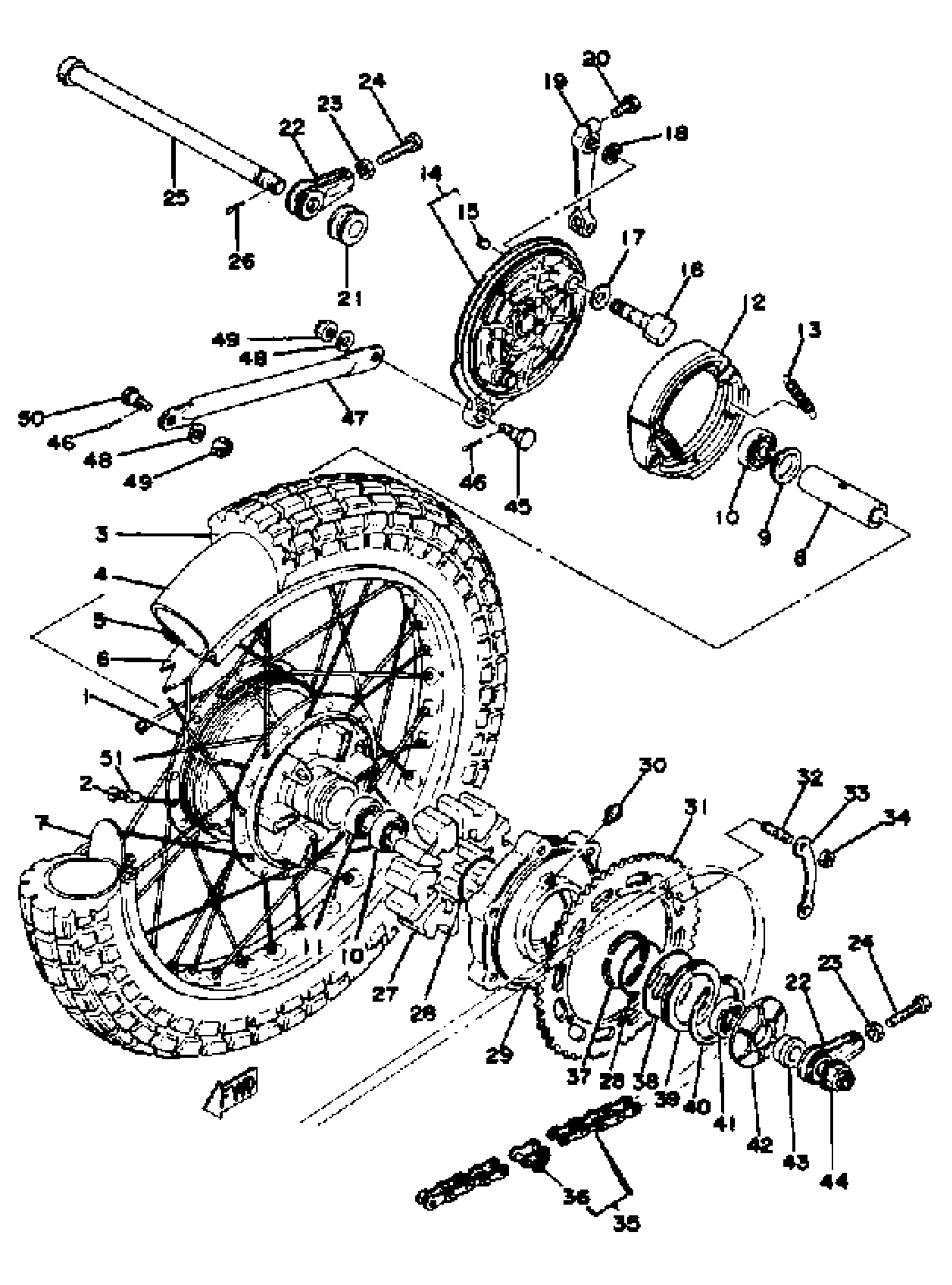

Yamaha XT500E_205001 (XT500E_205001) 1978 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(1E6-25311-00-98)

Unavailable

2

SPOKE SET (REAR)

1E6-25304-00-00

Unavailable

2

SPOKE SET, INNER 1

(1E6-25391-90-00)

Unavailable

2

SPOKE SET, OUTER 1

(1E6-25392-90-00)

Unavailable

3

400X18 BS TW5A

94140-18344-00

Unavailable

4

TUBE (5A8)

94212-18188-00

$35.99

5

RIM 1.85X18

94418-18199-00

Unavailable

6

BAND, RIM (2J4)

94340-18086-00

$17.99

7

SPACER, BEAD

1T2-25394-00-00

Unavailable

8

SPACER

90560-17311-00

Unavailable

9

FLANGE, SPACER

146-25315-00-00

$7.99

10

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

11

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

12

BRAKE SHOE KIT

3GW-W253A-00-00

$42.99

13

SPRING, TENSION 2462533300

90507-20002-00

$8.49

14

BRAKE SHOE PLT ASSEMBLY

1E6-25321-12-98

Unavailable

15

GROMMET (397)

90480-10068-00

Unavailable

16

CAMSHAFT

214-25351-01-00

Unavailable

17

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

18

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

19

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

Unavailable

20

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

21

COLLAR(3SX)

90387-170X9-00

Unavailable

22

PULLER, CHAIN 1

48U-25388-00-00

Unavailable

23

. NUT

95380-08700-00

Unavailable

24

BOLT

90101-08060-00

Unavailable

25

AXLE,WHEEL

150-25381-01-00

Unavailable

26

PIN, COTTER

91490-30030-00

Unavailable

27

DAMPER, CLUTCH

1E6-25364-00-00

Unavailable

28

O-RING (1E6)

93210-52312-00

Unavailable

29

CLUTCH, HUB

1E6-25366-00-98

Unavailable

30

NIPPLE, GREASE

93700-06M03-00

Unavailable

31

SPROCKET, DRIVEN 44T

38W-25444-20-00

Unavailable

32

BOLT, STUD (483)

90116-08218-00

Unavailable

33

WASHER

2XJ-25412-00-00

Unavailable

34

NUT (583)

90170-08193-00

Unavailable

35

520D5-100L DID (94515-20100)

9Y585-20099-00

Unavailable

36

JOINT, CHAIN

94681-68001-00

Unavailable

37

STOPPER, HUB

1E6-25318-01-00

Unavailable

38

O-RING (1E6)

93210-71311-00

Unavailable

39

SEAL, HUB DUST

1E6-25319-01-00

Unavailable

40

CIRCLIP (1E6)

93450-78080-00

Unavailable

41

OIL SEAL (25X40X8-248)

93102-25061-00

Unavailable

42

COVER, HUB DUST

1E6-25367-00-00

Unavailable

43

COLLAR (1E6)

90387-17530-00

Unavailable

44

NUT, CASTLE (2H6)

90171-16024-00

Unavailable

45

BOLT (537 TENSION BAR)

90109-08406-00

Unavailable

46

PIN, COTTER

91490-20025-00

Unavailable

47

BAR, TENSION

3H7-25371-00-00

Unavailable

48

WASHER, PLAIN

92990-08200-00

Unavailable

49

NUT

90185-08055-00

Unavailable

50

BOLT (183-25378-00)

90109-08368-00

Unavailable

51

BALANCER, WHEEL

3HT-25398-00-00

Unavailable
