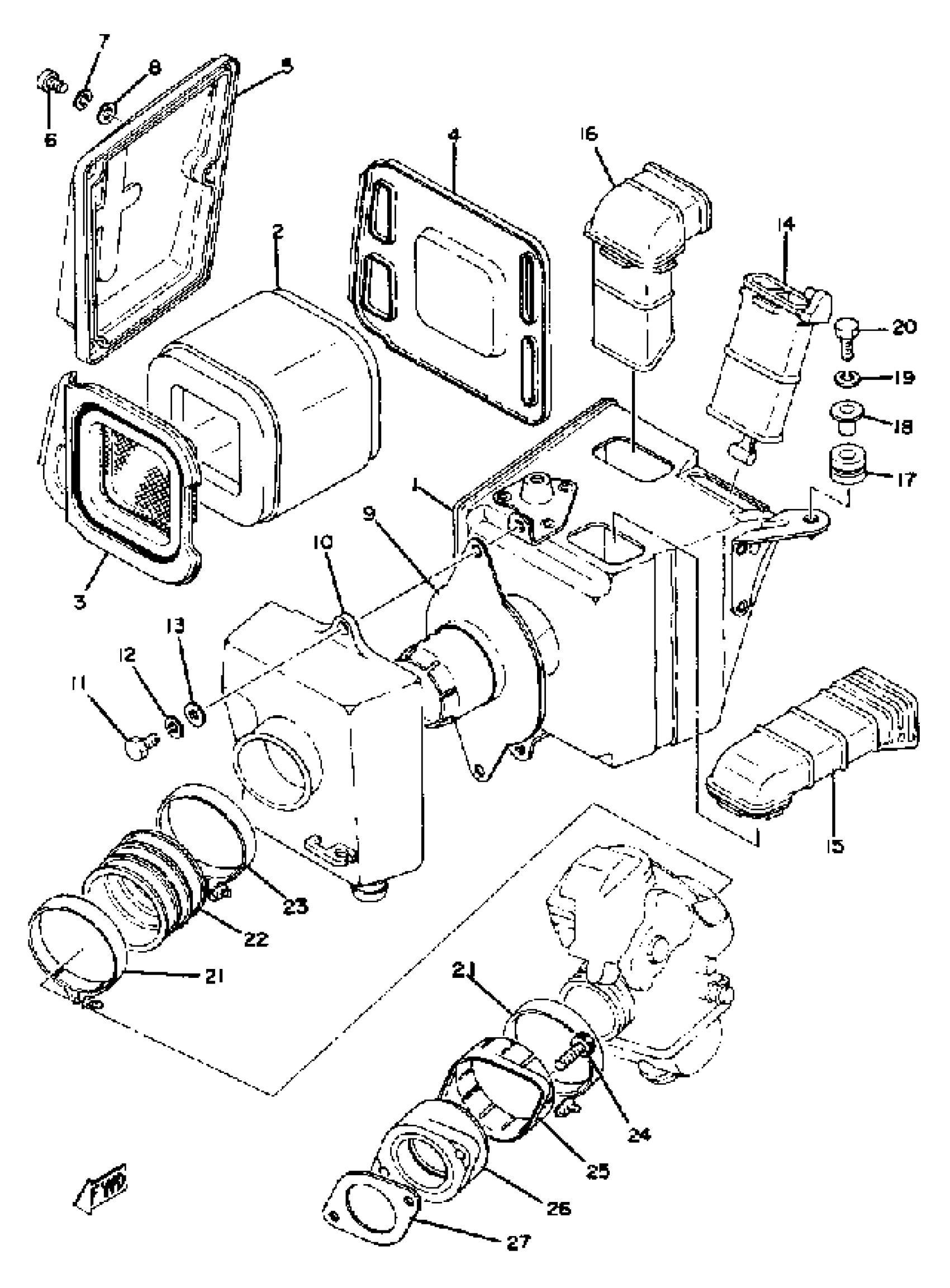

Yamaha XT500E_205001 (XT500E_205001) 1978 INTAKE Diagram

#

Description
Price

1

CASE, AIR CLEANER 1

583-14411-01-00

Unavailable

2

ELEMENT, AIR CLEANER

583-14451-08-00

$19.99

3

PLATE, ELEMENT FTNG

583-14468-01-00

Unavailable

4

PLATE, ELEMENT

583-14472-00-00

Unavailable

5

CAP, CLEANER CASE 2

583-14422-00-00

Unavailable

6

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

WASHER, PLAIN (646)

92990-05600-00

$0.80

9

PIPE, JOINT

583-14485-00-00

Unavailable

10

CASE, AIR CLEANER 2

583-14421-00-00

Unavailable

11

BOLT, HEXAGON

97017-06020-00

$4.06

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLAIN (646)

92990-06600-00

$2.80

14

DUCT

(583-14437-00-00)

Unavailable

15

SILENCER, INTAKE 1

583-14431-00-00

Unavailable

16

SILENCER, INTAKE 2

583-14441-00-00

Unavailable

17

GROMMET 839774310000

90480-14023-00

Unavailable

18

COLLAR 437216330000

90387-07391-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

BOLT, HEXAGON

97017-06025-00

Unavailable

21

HOSE CLAMP ASSY

90450-58002-00

Unavailable

22

JOINT, AIR CLEANER 1

583-14453-01-00

Unavailable

23

HOSE CLAMP ASSY

90450-62006-00

Unavailable

24

BOLT,SOCKET

91317-06020-00

Unavailable

25

COVER,JOINT

256-13564-00-00

Unavailable

26

JOINT, MANIFOLD

583-13565-01-00

Unavailable

27

GASKET, MANIFOLD

3HT-13556-00-00

Unavailable
