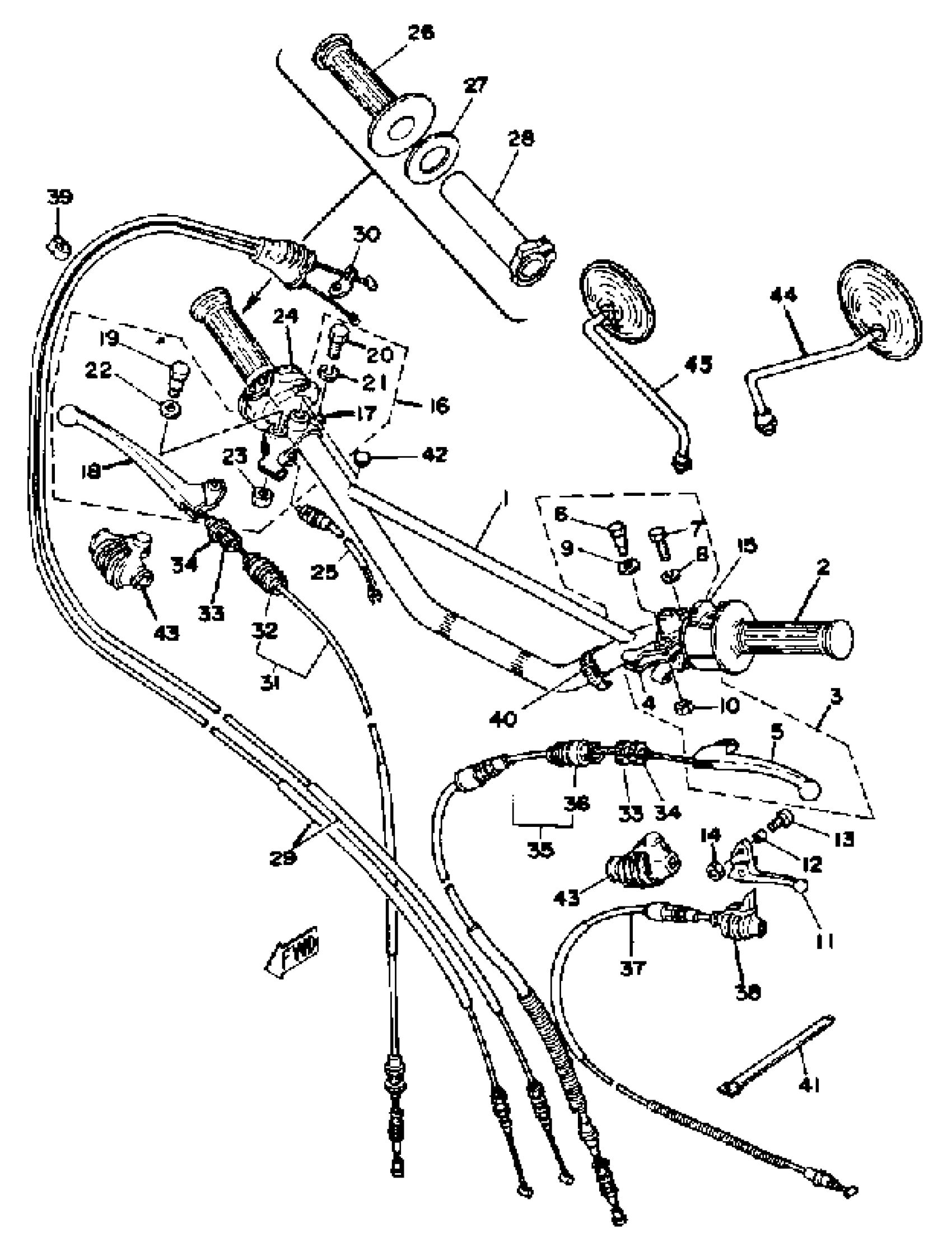

Yamaha XT500E_205001 (XT500E_205001) 1978 HANDLE - WIRE Diagram

#

Description
Price

1

HANDLEBAR

1T2-26111-00-00

Unavailable

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

$34.99

3

LEVER HOLDER ASSEMBLY 1

(583-82910-01-98)

Unavailable

4

HOLDER, LEVER (L.H)

583-82911-02-00

Unavailable

5

LEVER, HANDLE (L.H)

1J3-83912-20-00

$44.99

6

BOLT(3GB)

90109-061F3-00

$7.49

7

BOLT, HEXAGON

97013-06022-00

$0.90

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLATE 1562722600

90201-08083-00

$9.49

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

LEVER, DECOMPRESSION

583-83981-00-00

$25.99

12

COLLAR, LEVER 1

5BE-83913-00-00

$4.84

13

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

14

NUT, U

95617-05100-00

$9.49

15

SWITCH, HANDLE 3

1M1-83973-50-00

Unavailable

16

LEVER HOLDER ASSEMBLY 2

1E6-W8292-30-00

Unavailable

17

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

Unavailable

18

LEVER (R.H)

2A6-83922-00-00

Unavailable

19

BOLT(3GB)

90109-061F3-00

$7.49

20

BOLT, HEXAGON

97013-06022-00

$0.90

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLATE 1562722600

90201-08083-00

$9.49

23

NUT, SELF-LOCKING

95617-06100-00

$8.49

24

SWITCH, HANDLE 1

1E6-83976-00-00

Unavailable

25

FRONT STOP SWITCH ASSY

395-83980-09-00

Unavailable

26

GRIP (R.H)

583-26242-00-00

Unavailable

27

RING, LEAF

1W1-26249-00-00

Unavailable

28

TUBE, THRTL GUIDE

2H0-26243-00-00

Unavailable

29

THROTTLE CABLE ASSY

583-26301-01-00

Unavailable

30

WASHER

583-26398-00-00

Unavailable

31

WIRE, BRAKE FRONT

1E6-26341-00-00

Unavailable

32

BOOT, WIRE

1E6-26342-00-00

Unavailable

33

BOLT

90123-08002-00

Unavailable

34

NUT

90179-08030-00

Unavailable

35

WIRE, CLUTCH

1E6-26335-01-00

Unavailable

36

BOOT, WIRE

1E6-26342-00-00

Unavailable

37

WIRE, DECOMPRESSION

1E6-26331-00-00

Unavailable

38

COVER, DECOMPRESSION WIRE

583-26352-00-00

Unavailable

39

CLIP, WIRE 2072639100

90468-15009-00

Unavailable

40

BAND, SWITCH CORD

437-83936-01-00

Unavailable

41

BAND

341-26397-01-00

Unavailable

42

PLUG (341-26329-00)

90338-09012-00

Unavailable

43

COVER, LEVER

1E6-26372-00-00

Unavailable

44

MIRROR ASSEMBLY LH

341-26290-10-00

Unavailable

45

BACK MIRROR RH (341-26290-01)

341-26290-01-00

Unavailable
