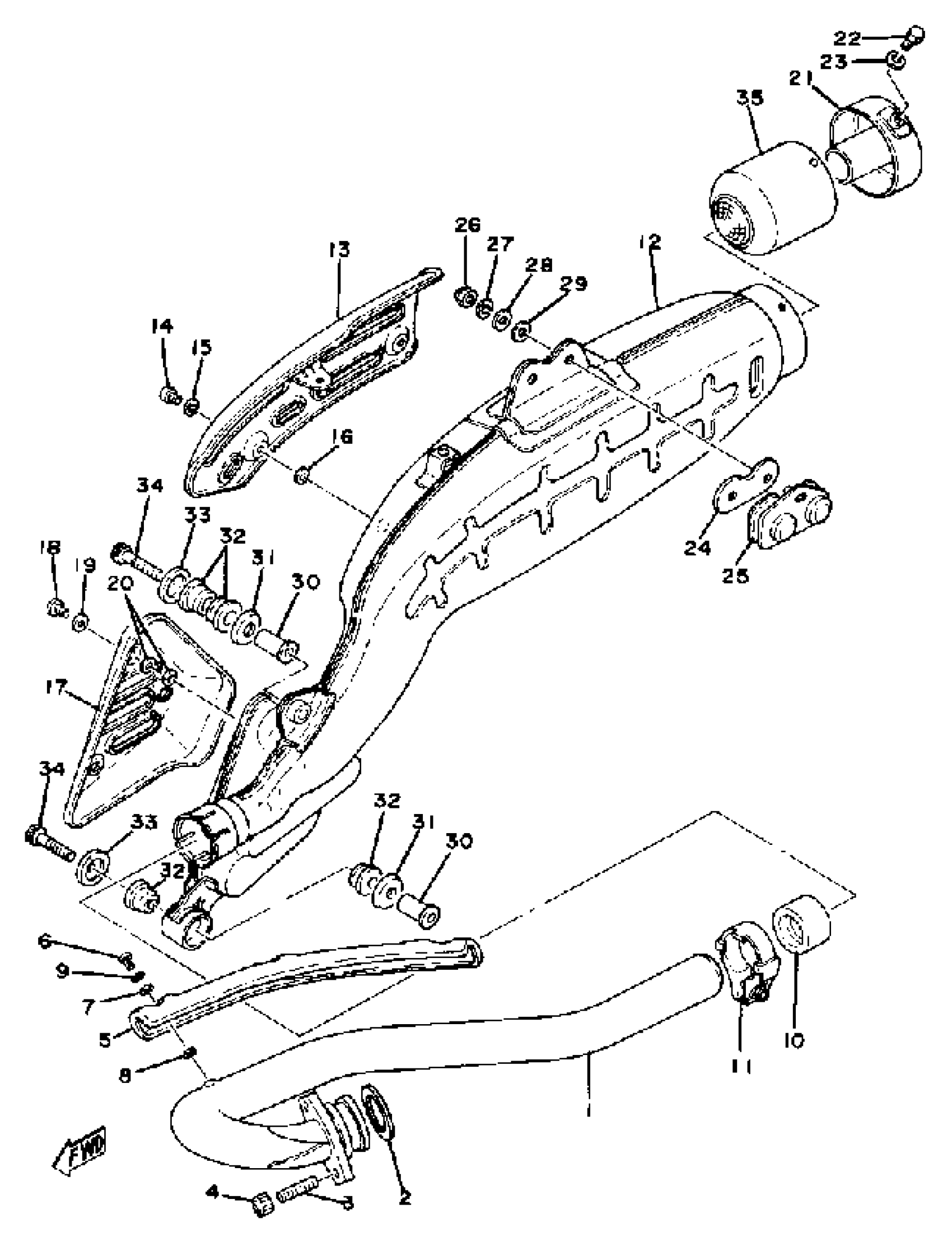

Yamaha XT500E_205001 (XT500E_205001) 1978 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST L

1T1-14611-03-00

Unavailable

2

GASKET, EXHAUST PIPE

3GD-14613-00-00

$14.49

3

BOLT, STUD 3

95617-08615-00

$5.60

4

NUT (371)

90179-08004-00

$9.49

5

PROTC, EXHAUST PIPE

1T1-14628-00-00

Unavailable

6

SCREW, BINDING

98907-06010-00

$1.65

7

WASHER, PLATE(3MB)

90202-05187-00

$1.38

8

WASHER, PROTECTOR

3WX-14766-00-00

$16.49

9

WASHER, WAVE(3RW)

90206-06090-00

$8.49

10

GASKET, MUFFLER

3EG-14714-00-00

$72.99

11

BAND, SILENCER

1T1-14788-00-00

Unavailable

12

MUFFLER

(1T2-14701-31-00)

Unavailable

13

PROTECTOR, MUFF 1

1T1-14718-00-00

Unavailable

14

SCREW, BINDING

98907-06010-00

$1.65

15

WASHER, PLATE(3MB)

90202-05187-00

$1.38

16

WASHER, PROTECTOR

3WX-14766-00-00

$16.49

17

PROTECTER, MUFF 2

1T2-14728-00-00

Unavailable

18

SCREW, BINDING

98907-06012-00

Unavailable

19

WASHER, PLATE(3MB)

90202-05187-00

$1.38

20

WASHER, PROTECTOR

3WX-14766-00-00

$16.49

21

PIPE, OUTLET

1T1-14752-01-00

Unavailable

22

BOLT(3JP)

97017-06010-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

GASKET,SILENCER

1T1-14755-02-00

Unavailable

25

STAY, MUFFLER

1T1-14791-02-00

Unavailable

26

NUT, U

95617-08100-00

Unavailable

27

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

28

WASHER (853)

90201-08326-00

Unavailable

29

WASHER (853)

90201-08326-00

Unavailable

30

COLLAR

90387-08572-00

Unavailable

31

WASHER

90209-08008-00

Unavailable

32

DAMPER, MUFFLER

1T1-14747-01-00

Unavailable

33

WASHER

90209-08008-00

Unavailable

34

BOLT, SOCKET

91317-08050-00

Unavailable

35

ARRESTER, SPARK

(1E6-14786-01-00)

Unavailable
