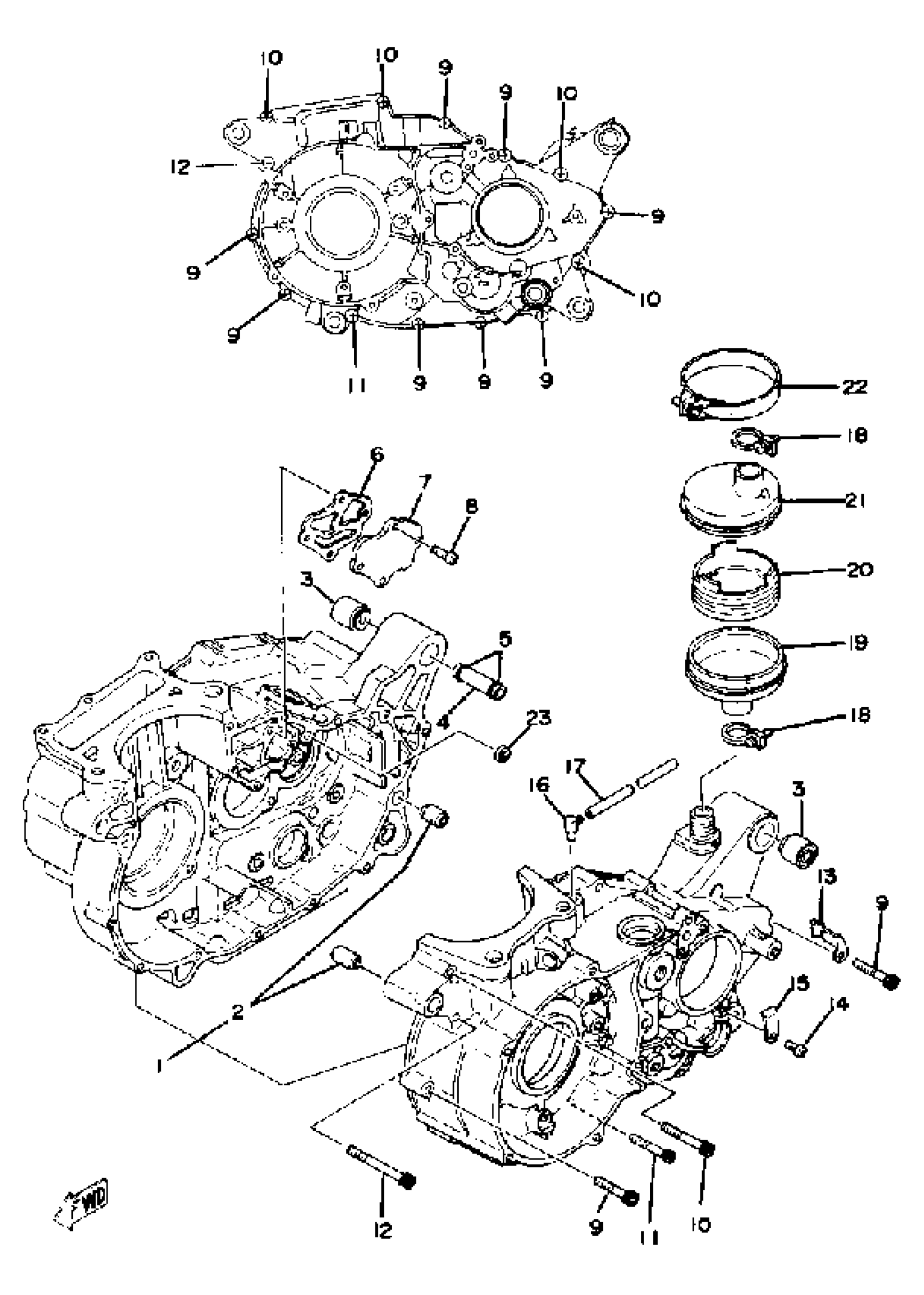

Yamaha XT500E_205001 (XT500E_205001) 1978 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSEMBLY (583-15100-00)
583-15100-03-00
Unavailable
3
DAMPER, ENG MOUNT 1
583-15316-00-00
Unavailable
4
SPACER, ENG MOUNT
583-15317-01-00
Unavailable
7
COVER, OIL PUMP 2
583-15426-10-00
Unavailable
8
SCREW, PAN HEAD(6E5)
97880-06018-00
Unavailable
9
BOLT,SOCKET
91317-06035-00
Unavailable
13
CLAMP(51Y)
90465-08277-00
Unavailable
14
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
15
CLAMP
(90465-05075-00)
Unavailable
16
BREATHER
583-15371-00-00
Unavailable
17
HOSE (L1050)
90445-072G8-00
Unavailable
18
CLAMP, HOSE (583)
90460-22083-00
Unavailable
19
BREATHER 2
583-15347-00-00
Unavailable
20
SEPARATOR, OIL
3HT-15358-00-00
Unavailable
21
BREATHER 1
583-15346-00-00
Unavailable
22
CLAMP, HOSE (90460-71017)
90460-71129-00
Unavailable
23
GASKET (583 CRANKCASE)
90430-09121-00
Unavailable
