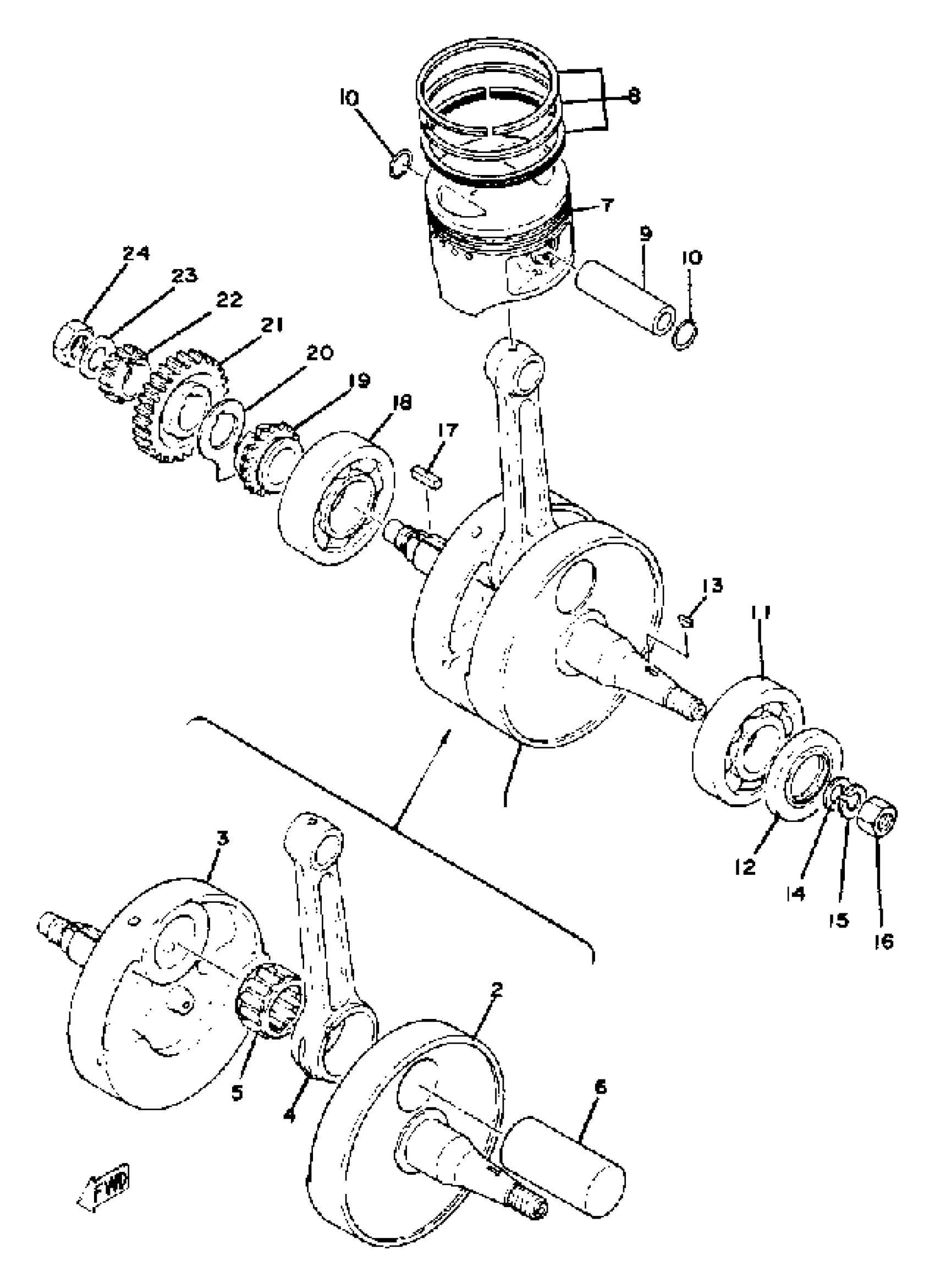

Yamaha XT500E_205001 (XT500E_205001) 1978 CRANK - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

(583-11400-00-00)

Unavailable

2

CRANK 1

(583-11412-00-00)

Unavailable

3

CRANK 2

(583-11422-00-00)

Unavailable

4

ROD, CONNECTING

583-11651-00-00

Unavailable

5

BRG,CYL-CAL ROLLER 46.8G TM

93310-635A5-00

$76.99

6

PISTON KIT STD (STD) (583-11630-00)

583-11630-02-00

Unavailable

6

PISTON (STD) 0.95

583-11631-02-95

$93.99

6

PISTON (1ST O/S)

583-11635-02-00

Unavailable

6

PISTON (2ND O/S)

583-11636-02-00

$187.99

6

PISTON 3 O/S 0.75

583-11637-02-00

Unavailable

6

PISTON 4 O/S 1.00

583-11638-02-00

Unavailable

6

PIN, CRANK 1

583-11681-01-00

$63.99

8

PISTON RING SET

583-11610-02-00

$73.99

8

PISTON RING SET (1ST O/S)

583-11610-12-00

Unavailable

8

PISTON RING SET (2ND O/S)

583-11610-22-00

Unavailable

8

PISTON RINGSET 3RD (583-11610-31)

583-11610-32-00

Unavailable

8

PISTON RINGSET 4TH (4TH O/S)

583-11610-42-00

Unavailable

9

PIN, PISTON

583-11633-00-00

Unavailable

10

CIRCLIP 341116340000

93450-22027-00

Unavailable

11

BEARING(3KW)

93306-30630-00

Unavailable

12

BEARING(3KW)

93306-30630-00

Unavailable

13

KEY, WOODRUFF

90280-05001-00

Unavailable

14

WASHER, PLATE (583)

90201-12593-00

Unavailable

15

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

16

NUT(55K)

90170-12347-00

Unavailable

17

KEY, STRAIGHT (583)

90282-07021-00

Unavailable

18

BEARING (3GV)

93306-30702-00

Unavailable

19

SPROCKET, CAM CHAIN DRIVE

583-11549-00-00

Unavailable

20

PLATE, CAM CHAIN SPROCKET

583-11533-00-00

Unavailable

21

GEAR, PRI DRIVE

583-16111-00-00

Unavailable

22

GEAR, DRIVE (21T)

583-11536-00-00

Unavailable

23

WASHER (517 CLUTCH)

90208-16019-00

Unavailable

24

NUT

90170-16425-00

Unavailable
