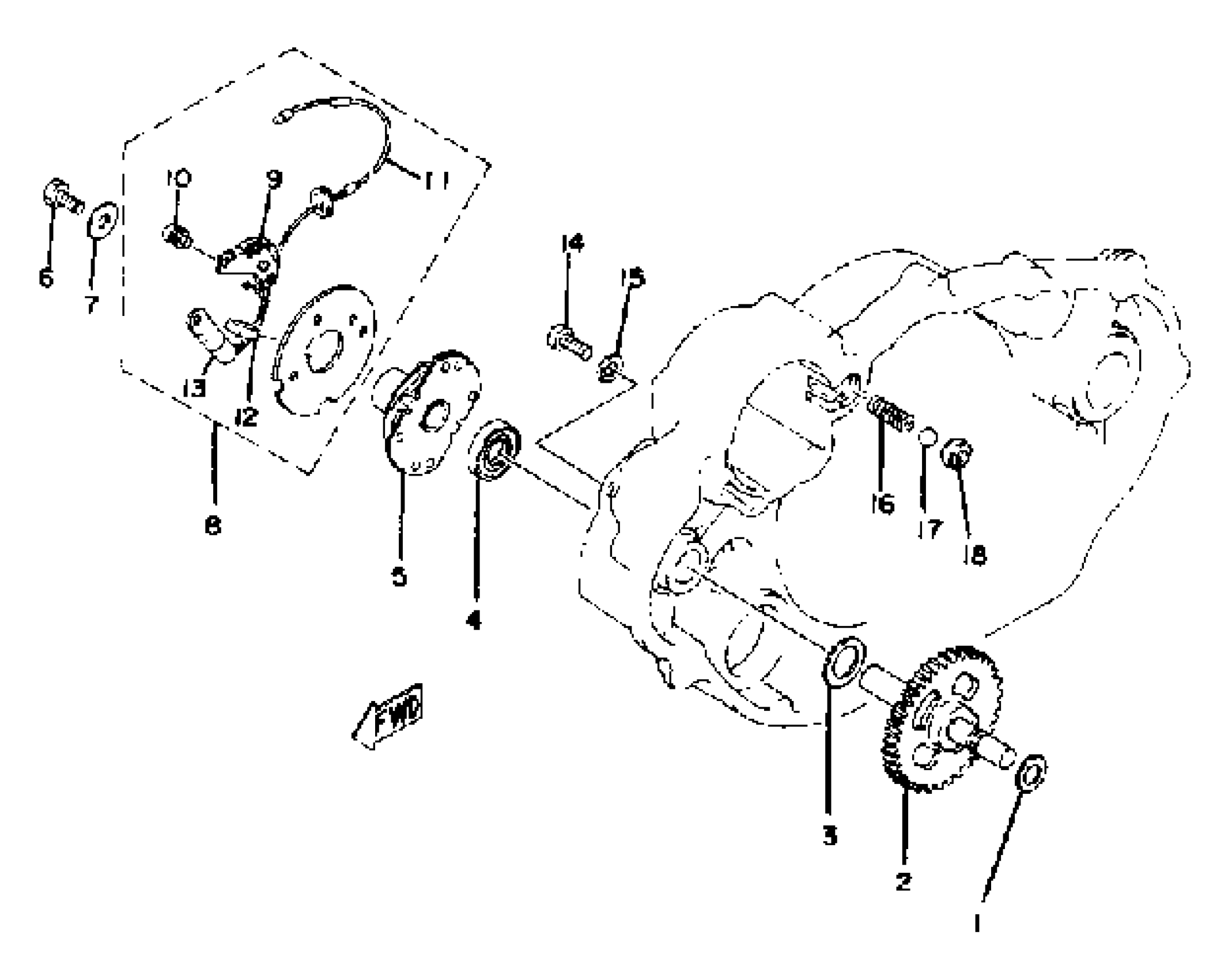

Yamaha XT500E_205001 (XT500E_205001) 1978 CONTACT BREAKER - GOVERNOR Diagram

#

Description
Price

1

WASHER, PLATE

90201-09572-00

Unavailable

2

BREAKER SHAFT ASSEMBLY

583-11150-00-00

Unavailable

3

WASHER PLATE 278156130000

90201-15234-00

$8.49

4

OIL SEAL (15X26X5-583)

93102-15147-00

$10.49

5

GOVERNOR ASSEMBLY

583-81653-50-00

Unavailable

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

7

WASHER, PLATE

90201-06020-00

$9.49

8

BREAKER PLATE ASSEMBLY

583-81620-50-00

Unavailable

9

. UNAVAILABLE IN PRICE BOOK

(1J7-28121-00-)

Unavailable

9

CONTACT BREAKER ASSY

583-81621-50-00

$83.99

9

CONTACT BREAKER ASSY

583-81621-50-00

$83.99

9

CONDENSER

583-81625-50-00

$44.99

9

TUNE KIT XT/TT500

ACC-01100-57-10

Unavailable

9

BPR7ES NGK - 4/PACK

BPR-7ES00-40-00

Unavailable

10

. SCREW, PAN HEAD

98580-04006-00

Unavailable

11

. WIRE, LEAD

583-81615-50-00

Unavailable

12

. LUBRICATOR

1L9-81631-50-00

Unavailable

13

CONDENSER

583-81625-50-00

$44.99

14

SCREW, PAN

98507-06014-00

Unavailable

15

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

16

SPRING (583 OIL CLEANER)

90501-05378-00

Unavailable

17

BALL

93503-08007-00

Unavailable

18

SEAT, CHECK BALL

583-13113-00-00

Unavailable
