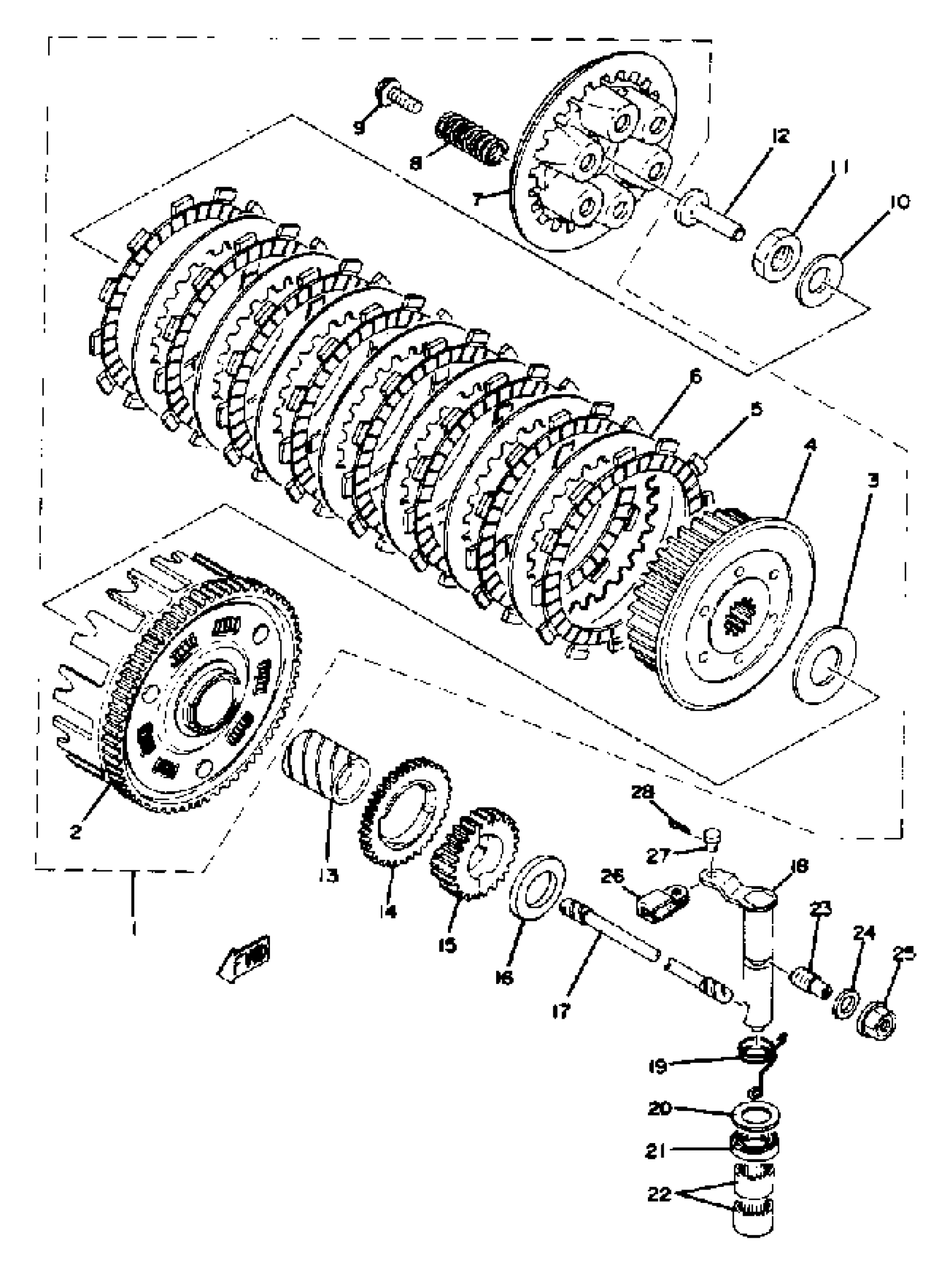

Yamaha XT500E_205001 (XT500E_205001) 1978 CLUTCH Diagram

#

Description
Price

1

CLUTCH ASSEMBLY

(583-16301-00-00)

Unavailable

2

PRIMARY DRIVEN GEAR COMP

2J2-16150-00-00

Unavailable

3

PLATE, THRUST (2)

170-16164-00-00

$9.99

4

BOSS, CLUTCH

583-16371-00-00

$180.99

5

PLATE, FRICTION 1

5Y1-16321-00-00

$18.49

6

PLATE, CLUTCH 2

360-16325-10-00

$35.99

7

PLATE, PRESSURE

498-16351-00-00

Unavailable

8

SPRING (583 CLUTCH)

90501-23391-00

$7.49

9

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

10

SPRING

214-16119-00-00

Unavailable

11

NUT HEXAGON 363115550000

90170-18086-00

$11.49

12

ROD, PUSH

174-16356-00-00

$20.99

13

SPACER (583)

90560-25153-00

Unavailable

14

GEAR, DRIVE

583-13324-00-00

Unavailable

15

GEAR, KICK PINION

583-15631-00-00

Unavailable

16

PLATE, THRUST

363-16154-00-00

Unavailable

17

ROD, PUSH

583-16357-01-00

Unavailable

18

PUSH LEVER COMP.

583-16381-00-00

Unavailable

19

SPRING, TORSION (583 CLUTCH)

90508-12279-00

Unavailable

20

WASHER PLATE 168217580000

90201-18262-00

Unavailable

21

OIL SEAL (48U)

93102-17357-00

Unavailable

22

BRG,CYL-CAL ROLLER 10G KY

93315-11720-00

Unavailable

23

SCREW, ADJUSTING

364-16343-00-00

Unavailable

24

WASHER, PLATE 3412175700

90201-12172-00

Unavailable

25

NUT, CLUTCH ADJUSTING

583-16344-00-00

Unavailable

26

JOINT

214-16389-00-00

Unavailable

27

PIN W/HOLE 214163790000

90240-06005-00

Unavailable

28

. PIN, COTTER

91401-10015-00

Unavailable
