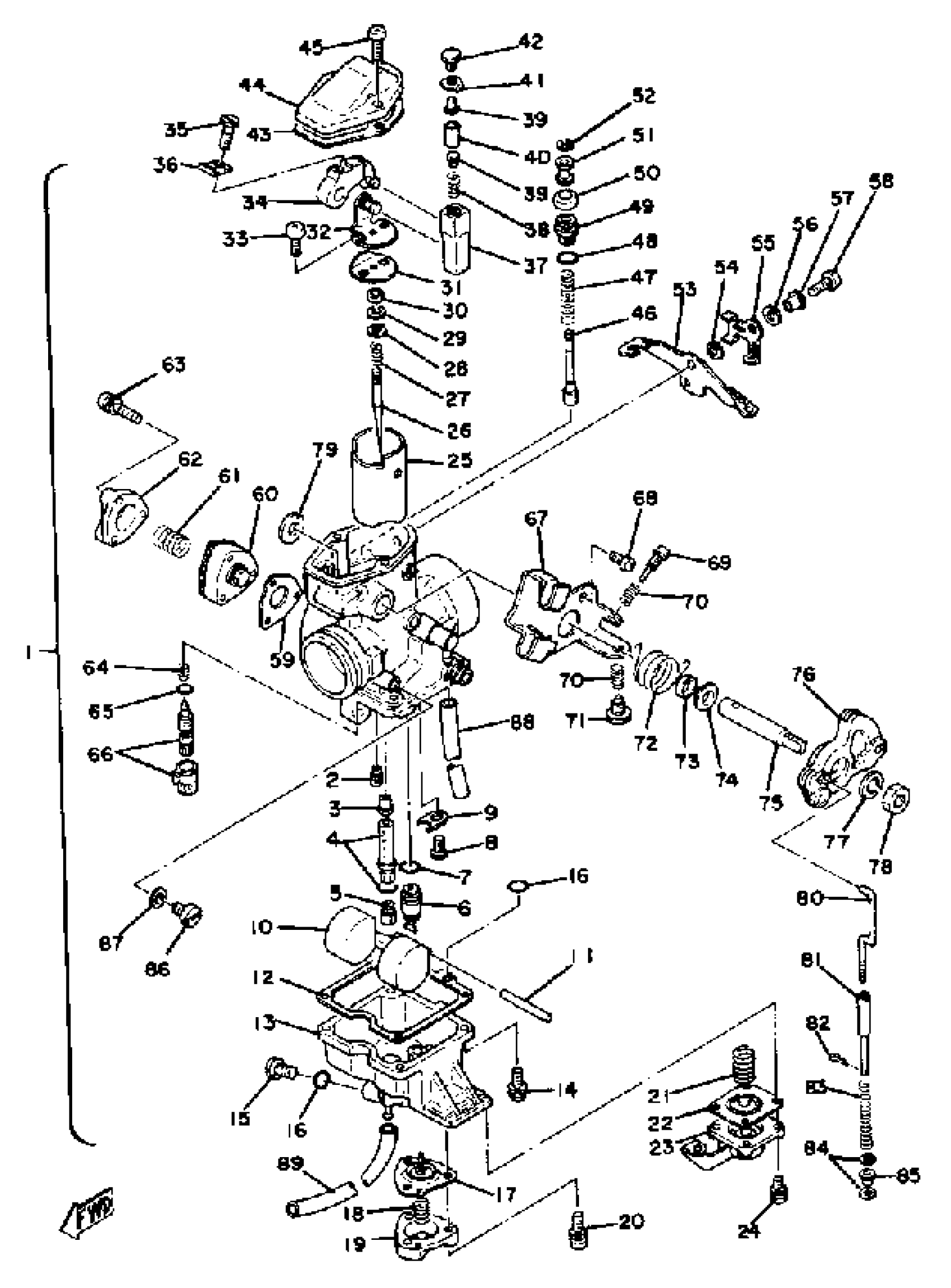

Yamaha XT500E_205001 (XT500E_205001) 1978 CARBURETOR Diagram
#
1
NO LONGER AVAILABLE
2H0-14101-61-00
Unavailable
3
. NOZZLE, MAIN
2H0-14141-50-00
Unavailable
4
PIPE, JET NEEDLE
583-14148-00-00
Unavailable
5
JET, MAIN #180
137-14143-36-A1
Unavailable
8
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
9
. PLATE
2H0-14146-00-00
Unavailable
10
. FLOAT
2H0-14185-00-00
Unavailable
12
GASKET, FLOAT CHAMBER
2H0-14184-00-00
Unavailable
13
BODY, FLOAT CHMBR 1
(2H0-14181-11-00)
Unavailable
14
SCREW, PN/HD.W/WSHR
(97602-04114-00)
Unavailable
15
. PLUG, DRAIN
2H0-14191-00-00
Unavailable
16
O-RING
583-14561-00-00
Unavailable
17
DIAPHRAGM ASSY, ACCELERATOR 2
2J2-14940-00-00
Unavailable
18
. SPRING, DIAPHRAGM
2J2-14933-00-00
Unavailable
19
COVER, DIAPHRAGM
(2J2-14958-00-00)
Unavailable
20
SCREW, PN/HD.W/WSHR
(97602-04114-00)
Unavailable
21
SPRING
(2H0-14589-00-00)
Unavailable
22
DIAPHRAGM ASSY, ACCELERATOR 1
2H0-14940-00-00
Unavailable
23
. LEVER, STARTER
2H0-14905-00-00
Unavailable
24
SCREW, PAN HEAD
98517-04012-00
Unavailable
25
VALVE, THROTTLE 1
(2H0-14112-35-00)
Unavailable
26
NEEDLE
(239-14116-24-00)
Unavailable
27
. SPRING, THRTL VALVE
2H0-14131-00-00
Unavailable
28
. WASHER, NEEDLE
2H0-14235-00-00
Unavailable
29
CLIP
3FA-14137-00-00
Unavailable
30
. RING
2H0-14194-00-00
Unavailable
31
SEAT, SPRING
(2H0-14936-00-00)
Unavailable
32
BRACKET 1
(2H0-14291-00-00)
Unavailable
33
SCREW, PAN HEAD
98511-04012-00
Unavailable
34
LEVER, THROTTL.VALV
(583-14292-00-00)
Unavailable
35
. SCREW
583-14592-00-00
Unavailable
36
WASHER
(583-14597-00-00)
Unavailable
37
CONNECTOR
(583-14274-00-00)
Unavailable
38
SPRING, DIAPHRAGM
(1T2-14933-00-00)
Unavailable
39
WASHER
(583-14558-00-00)
Unavailable
40
PIN, FLOAT
(583-14386-00-00)
Unavailable
41
WASHER
(583-14951-00-00)
Unavailable
42
SCREW
(583-14216-00-00)
Unavailable
43
GASKET, MIXING CHAMBER TOP
583-14536-00-00
Unavailable
44
TOP, MIXING CHAMBER
(583-14158-00-00)
Unavailable
45
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
46
. PLUNGER, STARTER
2H0-14171-00-00
Unavailable
47
. SPRING, PLUNGER
256-14135-00-00
Unavailable
48
. O-RING
583-14562-00-00
Unavailable
49
. CAP, PLUNGER
2H0-14174-00-00
Unavailable
50
. COVER, PLUNGER CAP
802-14173-00-00
Unavailable
51
. RING
583-14918-00-00
Unavailable
52
. CLIP
737-14137-00-00
Unavailable
53
. LEVER, STARTER 1
2H0-14175-00-00
Unavailable
54
. SPRING, CHOKE LEVER
2H0-14218-00-00
Unavailable
55
. PLATE, STARTER LVR
2H0-14178-00-00
Unavailable
56
. WASHER
2J2-14962-00-00
Unavailable
57
. RING
2J2-14194-00-00
Unavailable
58
SCREW, PAN
98507-06014-00
Unavailable
59
GASKET, ENRICHMENT PUMP
2H0-14198-00-00
Unavailable
60
ENRICHMENT PUMP BODY ASSY
2H0-14217-00-00
Unavailable
61
SPRING, DIAPHRAGM
(2H0-14933-00-00)
Unavailable
62
COVER, DIAPHRAGM
(2H0-14958-00-00)
Unavailable
63
SCREW, PN/HD.W/WSHR
(97601-04125-00)
Unavailable
64
. SPRING, PILOT ADJUSTING
2H0-14212-00-00
Unavailable
65
O-RING, PILOT SCREW
2H0-14147-00-00
Unavailable
66
. SCREW, PILOT ADJUSTING
2H0-14211-00-00
Unavailable
67
BRACKET, THROTTLE
(583-14571-00-00)
Unavailable
68
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
69
. SCREW, GUIDE
583-14245-00-00
Unavailable
70
. SPRING, THRTL STOP
583-14133-00-00
Unavailable
71
SCREW, THRTL STOP
(583-14121-00-00)
Unavailable
72
. SPRING, THRTL VALVE
583-14131-01-00
Unavailable
73
. SEAL
583-14239-01-00
Unavailable
74
. COLLAR
583-14265-00-00
Unavailable
75
SHAFT, THRTL LEVER
(2H0-14215-00-00)
Unavailable
76
BRACKET
(2H0-14573-00-00)
Unavailable
77
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
78
NUT
812-14594-00-00
Unavailable
79
. SPACER
583-14264-00-00
Unavailable
80
. ROD
2J2-14992-00-00
Unavailable
81
. ROD
2H0-14992-00-00
Unavailable
82
. PIN, COTTER
91401-10015-00
Unavailable
83
. SPRING
2J2-14589-00-00
Unavailable
84
. WASHER
2H0-14227-00-00
Unavailable
85
. COLLAR
2H0-14534-00-00
Unavailable
86
. PLUG, SCREW
2F5-14115-00-00
Unavailable
87
.. WASHER, PLUG SCREW
584-14956-00-00
Unavailable
88
HOSE (L340)
90445-08684-00
Unavailable
89
. PIPE (43214-19700-00)
510-14197-00-00
Unavailable
