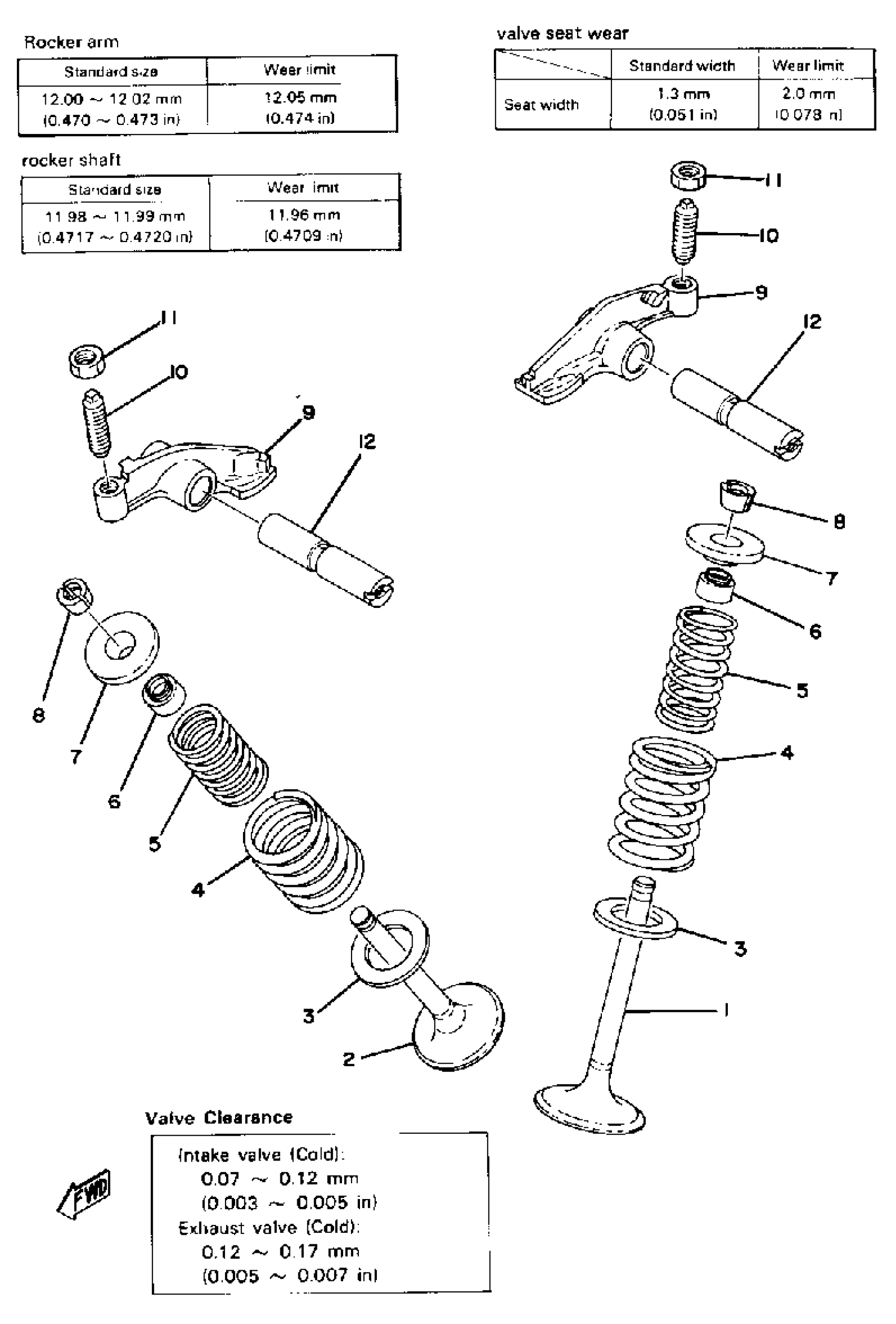

Yamaha XT500D (XT500) 1977 VALVE - ROCKER ARM Diagram

VALVE, INTAKE

583-12111-00-00

Unavailable

VALVE, EXHAUST

583-12121-00-00

Unavailable

SEAT, VALVE SPRING

256-12116-01-00

Unavailable

SPRING, COMPRESSION (1T1)

90501-44455-00

$16.99

SPRING, COMPRESSION (1T1)

90501-31454-00

$14.99

SEAL, VALVE STEM OIL

341-12119-02-00

$18.49

RETAINER, VALVE SPRING

256-12117-02-00

$15.49

LOCK, VALVE SPRING (447)

341-12118-00-00

$9.99

ARM, VALVE ROCKER

583-12151-00-00

Unavailable

SCREW, VALVE ADJUSTING

3HT-12159-R0-00

$16.49

NUT, HEXAGON

90170-08173-00

$8.49

SHAFT, ROCKER 2

583-12156-02-00

$46.99
