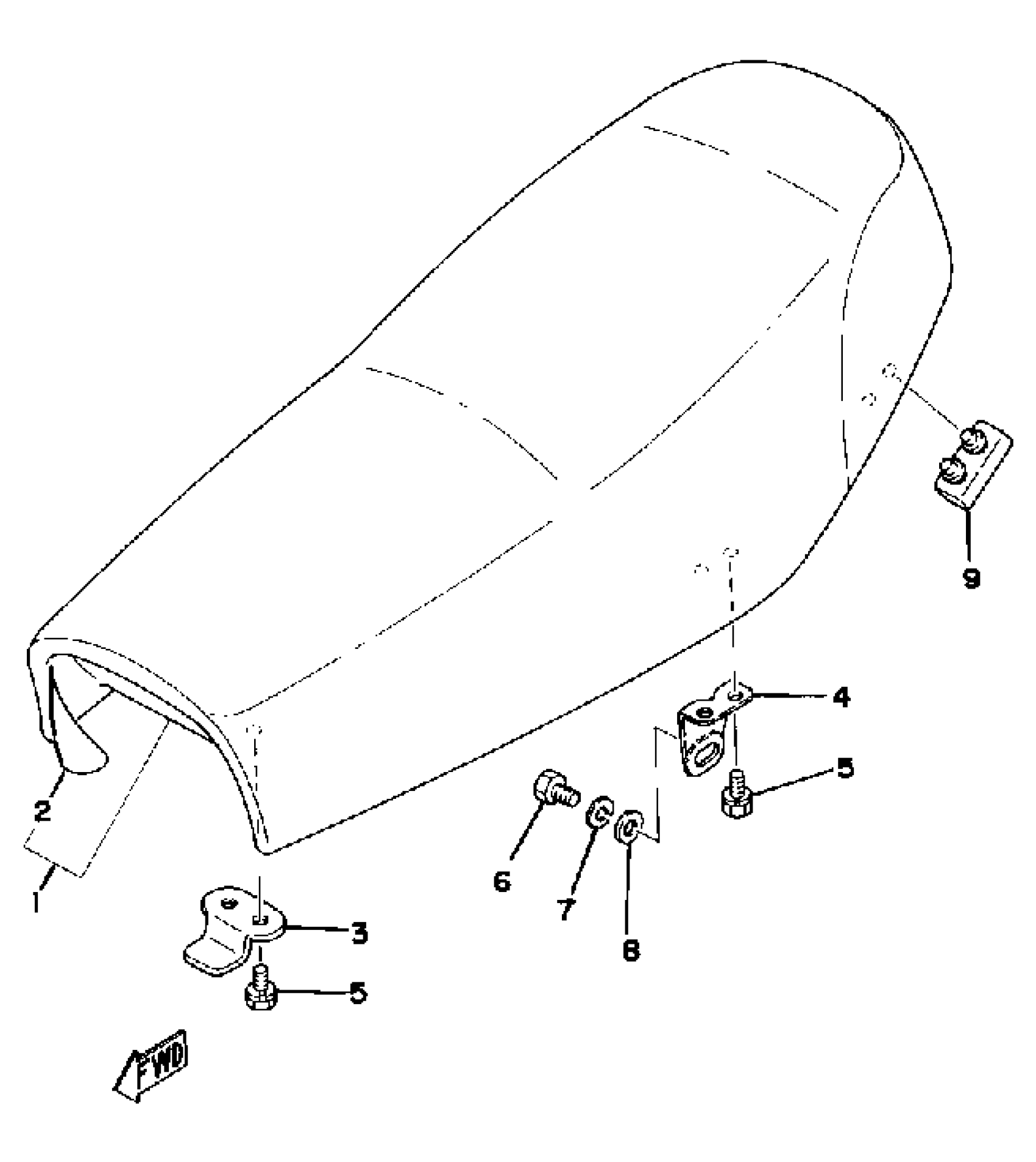

Yamaha XT500D (XT500) 1977 SEAT Diagram

#

Description

Price

1

DOUBLE SEAT ASSEMBLY

(1E6-24730-00-00)

Unavailable

2

. COVER, DOUBLE SEAT (1E6-24731-00)

2H0-24731-00-00

Unavailable

3

BRACKET, SEAT

2Y0-24748-00-00

Unavailable

4

BRACKET, SEAT

(583-24738-00-00)

Unavailable

5

BOLT (583)

90101-06304-00

$7.49

6

BOLT, HEXAGON

97013-08016-00

$1.01

7

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

.. WASHER, PLATE

92990-08600-00

Unavailable

9

DAMPER, SEAT

583-24724-00-00

Unavailable
