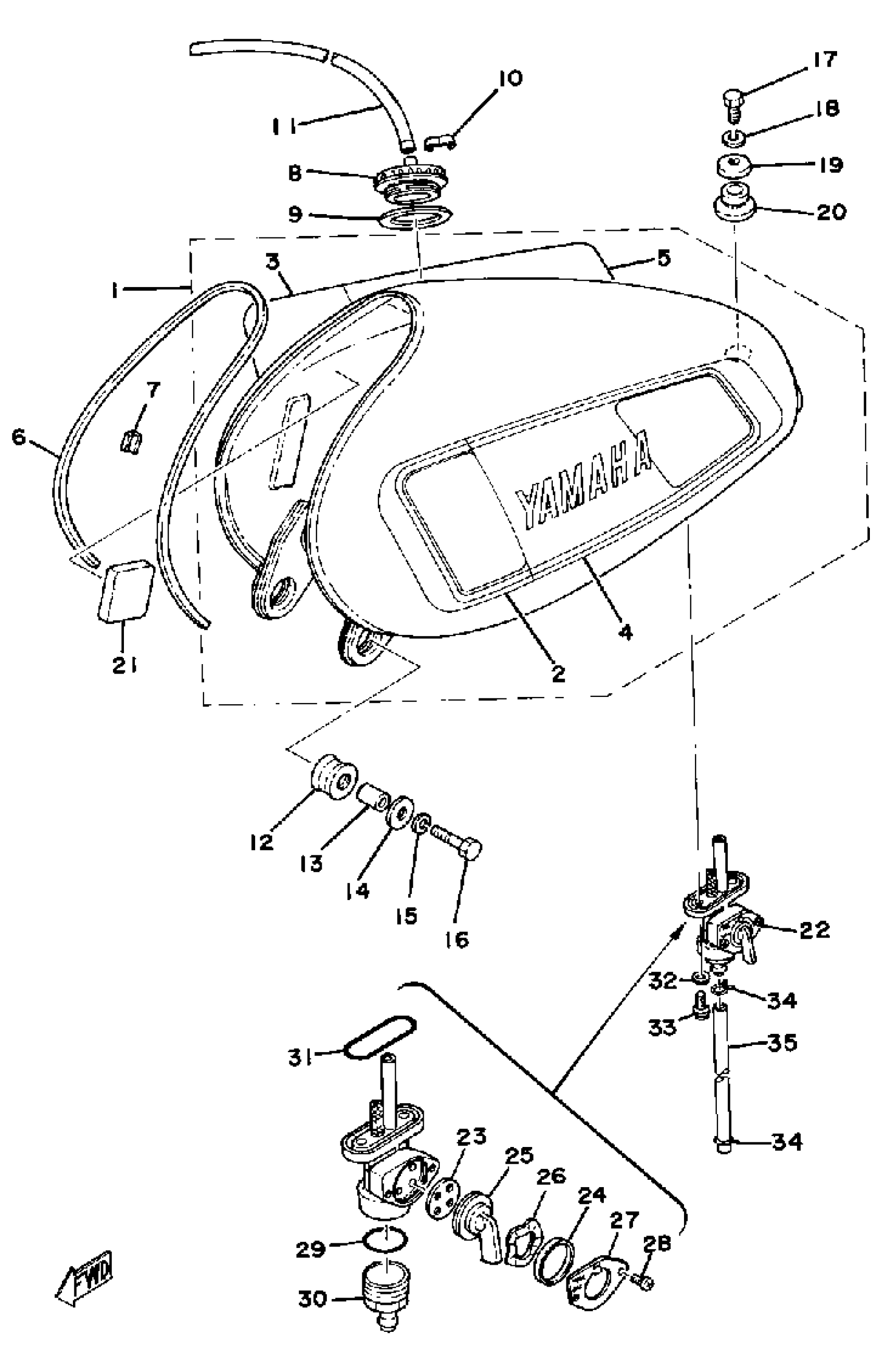

Yamaha XT500D (XT500) 1977 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(1E6-24110-00-03)

Unavailable

2

GRAPHIC, FUEL TNK 1

(1E6-24244-00-00)

Unavailable

3

GRAPHIC, FUEL TNK 3

(1E6-24246-00-00)

Unavailable

4

GRAPHIC, FUEL TNK 2

(1E6-24245-00-00)

Unavailable

5

GRAPHIC, FUEL TNK 4

(1E6-24247-00-00)

Unavailable

6

PLATE, MOLD

(1E6-24189-00-00)

Unavailable

7

CLIP

90468-03063-00

Unavailable

8

BODY, CAP

322-24611-02-00

$57.99

9

GASKET (583 FUEL TANK CAP)

90430-35122-00

Unavailable

10

CLIP (1E6)

90468-15064-00

Unavailable

11

HOSE (L1500)

90445-090F6-00

$31.99

12

GROMMET (583 FUEL TANK)

90480-22177-00

$18.99

13

COLLAR(1NL)

90387-086N4-00

$9.49

14

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

$10.49

15

WASHER, SPRING

92995-06100-00

Unavailable

16

BOLT, HEXAGON

97017-06030-00

Unavailable

17

BOLT(JA9)

90101-08691-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

19

WASHER, PLATE

90209-08150-00

Unavailable

20

DAMPER, FUEL TANK (434)

90480-22054-00

Unavailable

21

DAMPER, TANK LOCATING

583-24182-00-00

Unavailable

22

FUEL COCK ASSY

498-24500-01-00

Unavailable

23

VALVE, COCK

498-24523-00-00

Unavailable

24

GASKET

(498-24528-00-00)

Unavailable

25

. LEVER, COCK

498-24524-01-00

Unavailable

26

WASHER WAVE 137245180000

90206-18025-00

Unavailable

27

. PLATE, LEVER FITTING

498-24525-00-00

Unavailable

28

SCREW, LEVER FITTING

214-24535-00-00

Unavailable

29

GASKET, FILTER

498-24522-00-00

Unavailable

30

CUP, FILTER

(498-24521-00-00)

Unavailable

31

GASKET, BODY

214-24512-00-00

Unavailable

32

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

33

SCREW 256241430000

90149-06011-00

Unavailable

34

CLIP

90467-100A1-00

Unavailable

35

HOSE (L210)

90445-110F5-00

Unavailable
