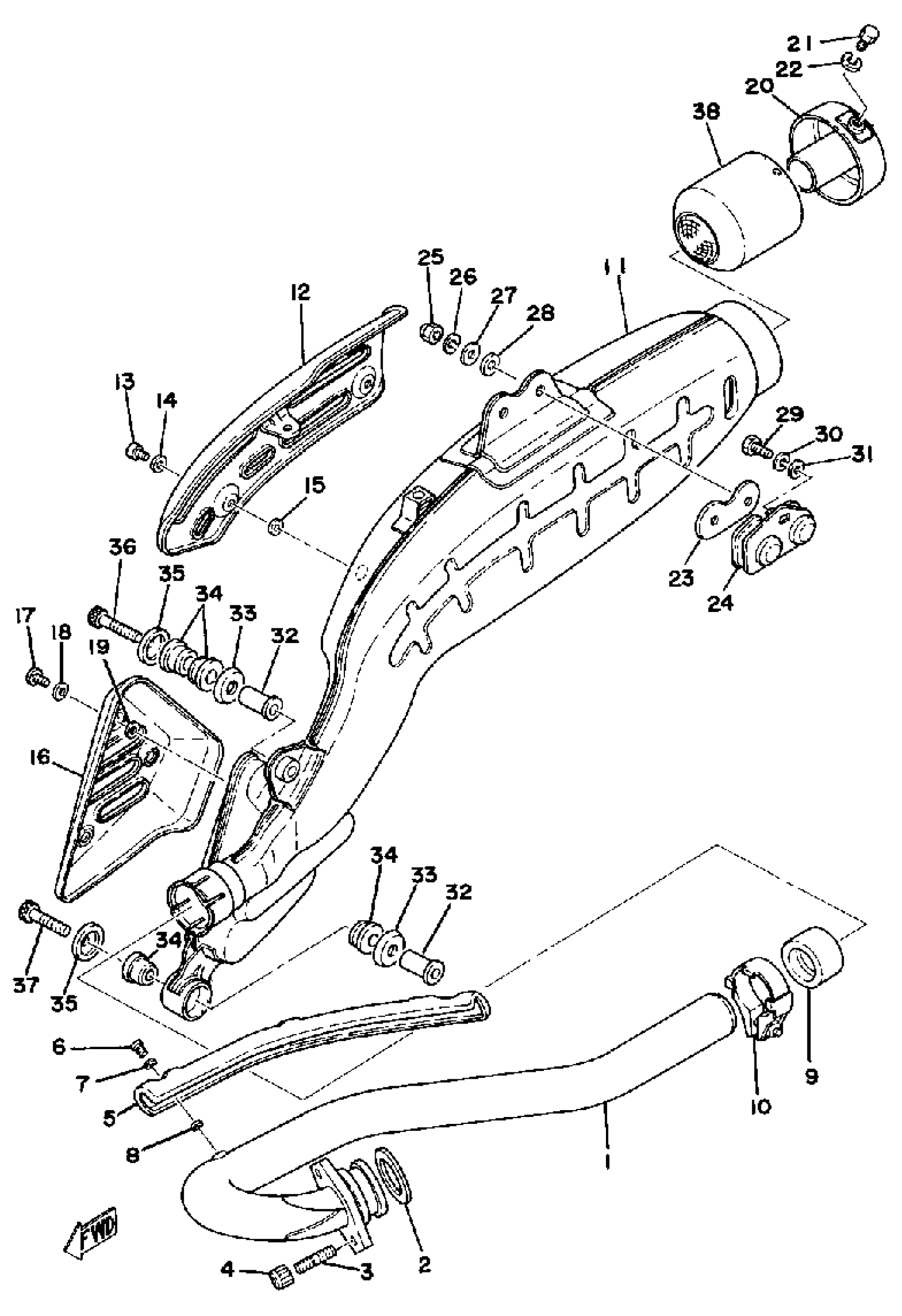

Yamaha XT500D (XT500) 1977 EXHAUST Diagram
#
Description
Price
1
PIPE, EXHAUST L
1T1-14611-03-00
Unavailable
5
PROTC, EXHAUST PIPE
1T1-14628-00-00
Unavailable
10
BAND, SILENCER
1T1-14788-00-00
Unavailable
11
MUFFLER
(1T2-14701-31-00)
Unavailable
12
PROTECTOR, MUFF 1
1T1-14718-00-00
Unavailable
16
PROTECTER, MUFF 2
1T2-14728-00-00
Unavailable
20
PIPE, OUTLET
1T1-14752-01-00
Unavailable
21
BOLT(3JP)
97017-06010-00
Unavailable
22
WASHER, SPRING
92995-06100-00
Unavailable
23
GASKET,SILENCER
1T1-14755-02-00
Unavailable
24
STAY, MUFFLER
1T1-14791-02-00
Unavailable
25
NUT, U
95617-08100-00
Unavailable
26
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
27
WASHER (853)
90201-08326-00
Unavailable
28
WASHER, PLATE
90202-08103-00
Unavailable
29
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
30
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
31
.. WASHER, PLATE
92990-08600-00
Unavailable
32
COLLAR
90387-08572-00
Unavailable
33
WASHER, SPEC''L SHAP
90209-12163-00
Unavailable
34
DAMPER, MUFFLER
1T1-14747-01-00
Unavailable
35
WASHER
90209-08008-00
Unavailable
36
BOLT, SOCKET
91317-08050-00
Unavailable
37
BOLT, SOCKET
91317-08050-00
Unavailable
38
ARRESTER, SPARK
(1E6-14786-01-00)
Unavailable
