CYLINDER HEAD - CYLINDER HEAD COVER

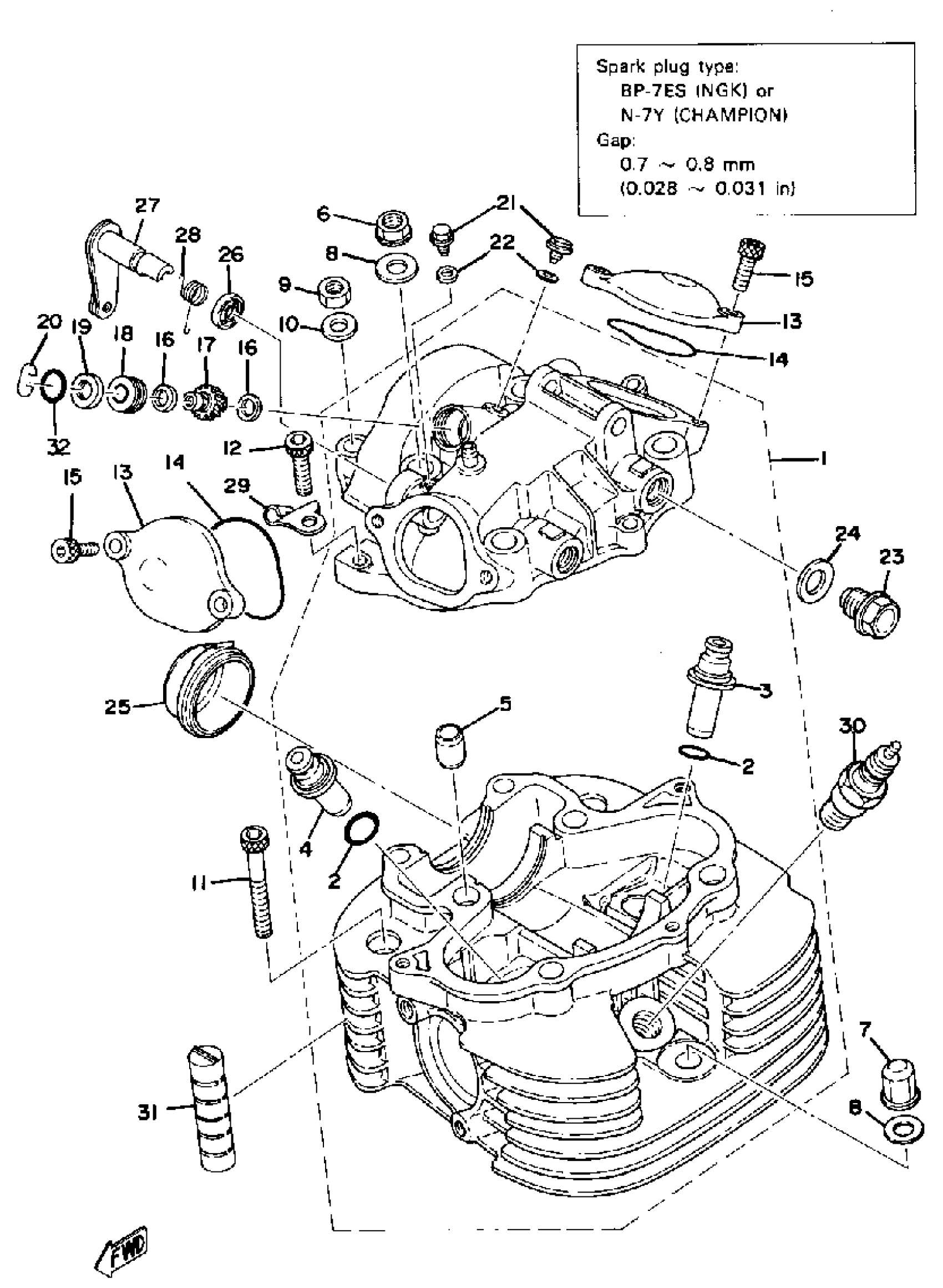

Yamaha XT500D (XT500) 1977 CYLINDER HEAD - CYLINDER HEAD COVER Diagram
#
Description
Price
1
. UNAVAILABLE IN PRICE BOOK
2H0-11110-00-00
Unavailable
1
CYLINDER HEAD ASSEMBLY
(99999-00953-00)
Unavailable
2
PIPE, DELIVERY 1
583-13161-01-00
Unavailable
4
. GDE, EXST VLV 1 O/S (1ST OS)
583-11134-11-00
Unavailable
5
CYLINDER HEAD ASSEMBLY
(99999-00953-00)
Unavailable
10
.. WASHER, PLATE
92990-08600-00
Unavailable
13
COVER, CYLINDER. HEAD 2
583-11186-00-00
Unavailable
14
O-RING (583 CYL. HEAD SIDE COV
93210-49296-00
Unavailable
15
BOLT,SOCKET
91317-06018-00
Unavailable
16
WASHER PLATE 141181390000
90201-08085-00
Unavailable
17
GEAR, DRIVEN
1E6-17841-00-00
Unavailable
18
BUSHING, TACHOMETER GEAR
1E6-17843-00-00
Unavailable
19
OIL SEAL (30X)
93102-08307-00
Unavailable
20
RING, STOP
102-25137-00-00
Unavailable
21
BOLT (583 TACHOMETER)
90109-06418-00
Unavailable
22
GASKET 256113960000
90430-06014-00
Unavailable
23
PLUG (583 ROCKER SHAFT)
90340-14038-00
Unavailable
24
GASKET 256131670000
90430-14043-00
Unavailable
25
PLUG, VIEWER
2J2-11197-00-00
Unavailable
26
OIL SEAL (1.2X17X2.5-583)
93104-12054-00
Unavailable
27
CAM, DECOMPRESSION
583-12288-01-00
Unavailable
28
SPRING, TORSION (583)
90508-16303-00
Unavailable
29
BRACKET, DECOMPRESSION
583-12283-00-00
Unavailable
30
BPR7ES NGK - 4/PACK
BPR-7ES00-40-00
Unavailable
31
ABSORBER
583-11127-00-00
Unavailable
32
O-RING (26H)
93210-14579-00
Unavailable
