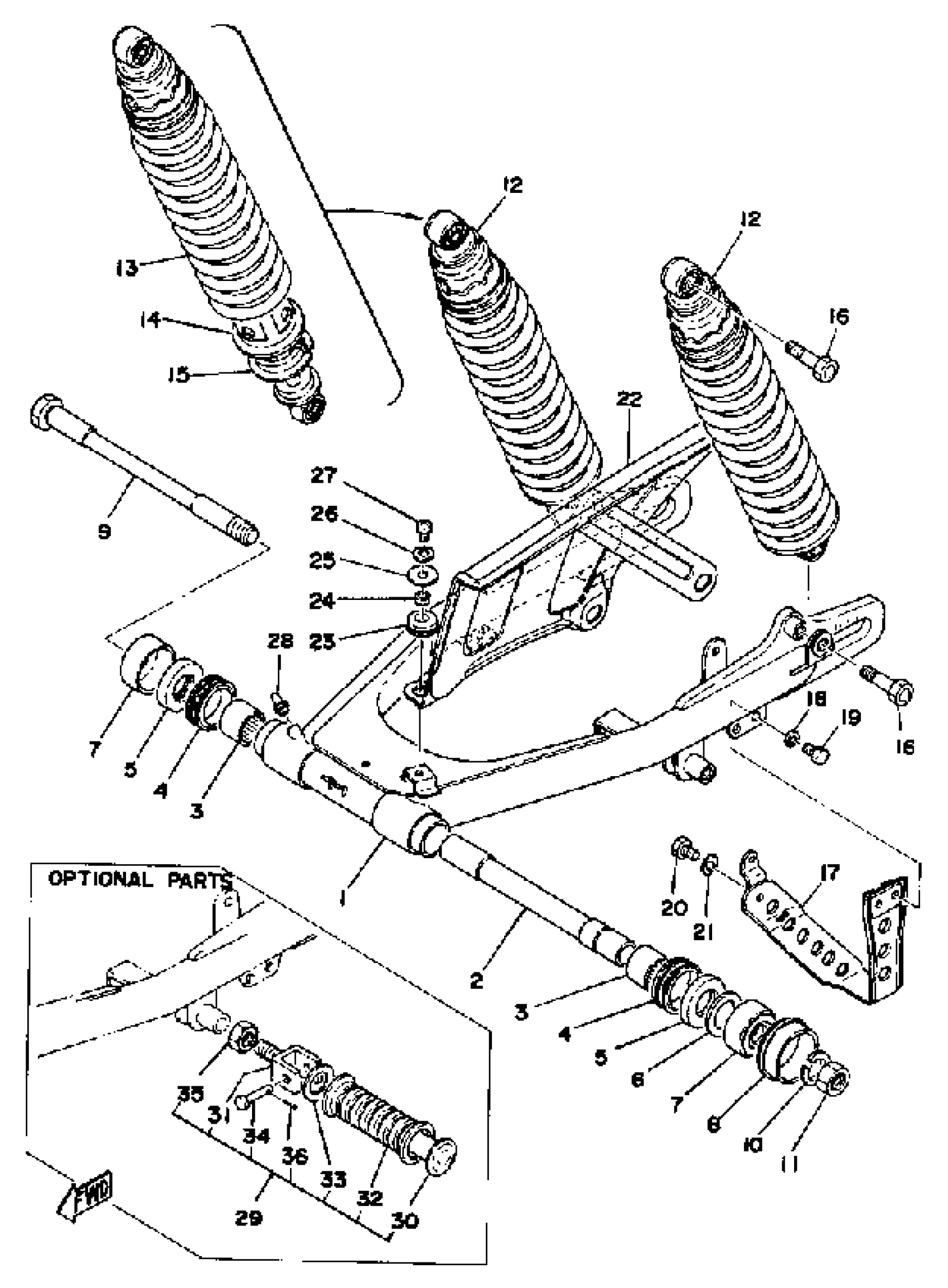

Yamaha XT500C (XT500) 1976 REAR ARM - REAR CUSHION - CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

(1E6-22110-00-33)

Unavailable

2

BUSH 2

483-22124-00-00

Unavailable

3

BRG,CYL-CAL ROLLER 28.5G NT

93317-22208-00

$46.99

4

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

5

BEARING, THRUST

93342-22205-00

$70.99

6

SHIM (90201-22284)

648-45533-00-02

Unavailable

7

COVER, THRUST 2

2K8-22129-00-00

$37.99

7

SEAL, GUARD

431-22151-03-00

$27.99

7

THRUST COVER (483-22129-00)

99999-00938-00

Unavailable

8

SEAL, GUARD

431-22151-03-00

$27.99

9

SHAFT, PIVOT

583-22141-01-00

Unavailable

10

WASHER(JN5)

92907-16100-00

$14.99

11

NUT

90170-16111-00

Unavailable

12

SHK/ABS ASSEMBLY, REAR

(1E6-22210-00-00)

Unavailable

13

SPRING

(583-22212-00-00)

Unavailable

14

COVER

(583-22211-00-00)

Unavailable

15

. GUIDE, SPRING 1

583-22214-00-00

Unavailable

16

BOLT (583 REAR CUSHION)

90109-10420-00

Unavailable

17

GUARD, CHAIN

(438-22318-00-33)

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

BOLT, HEXAGON

97017-06020-00

Unavailable

20

BOLT(JA9)

90101-08691-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

CASE, CHAIN

(1E6-22311-00-33)

Unavailable

23

GROMMET

90480-12529-00

Unavailable

24

SPACER

90560-05001-00

Unavailable

25

WASHER, PLATE

90201-06747-00

Unavailable

26

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

27

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

28

NIPPLE, GREASE

93700-06M03-00

Unavailable

29

REAR FOOTREST ASSY

120-27430-02-00

Unavailable

30

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

31

. BRACKET 1

120-27432-02-00

Unavailable

32

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

33

WASHER, PLATE (888)

90201-20279-00

Unavailable

34

PIN, CLEVIS

(90240-06052-00)

Unavailable

35

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

36

PIN, COTTER

91490-16020-00

Unavailable
