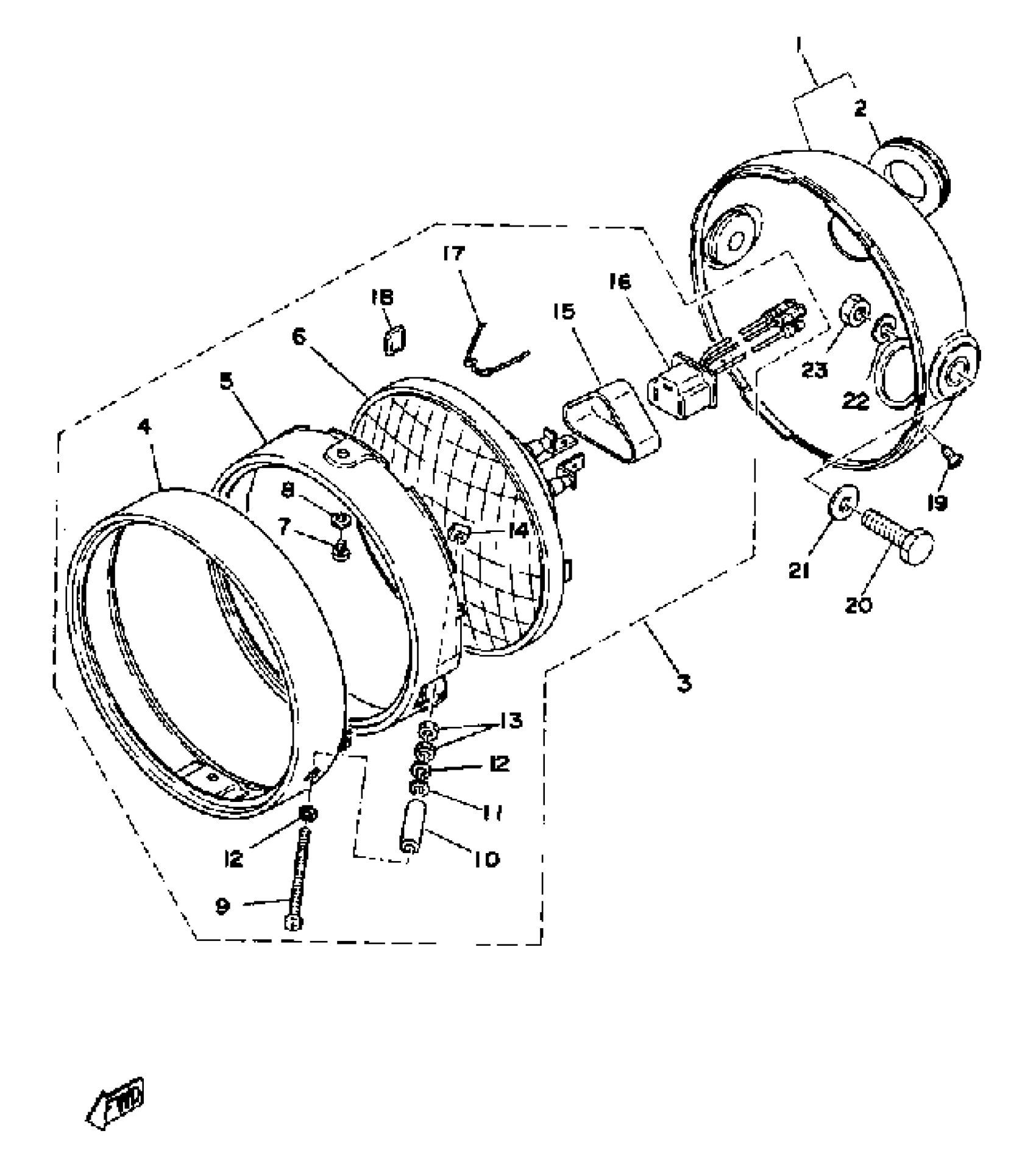

Yamaha XT500C (XT500) 1976 HEADLIGHT Diagram

#

Description
Price

1

BODY ASSEMBLY, HEADLIGHT

(1E6-84130-60-33)

Unavailable

2

GROMMET, WIREHARNESS

214-84153-60-00

$7.99

4

. RIM, HEADLIGHT

498-84115-60-00

Unavailable

5

. RING, RETAINING

498-84195-60-00

Unavailable

6

. LENS ASSEMBLY

498-84120-61-00

Unavailable

7

. SCREW

438-84194-60-00

Unavailable

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

SCREW 214841316100

90157-04001-00

$8.49

10

COLLAR, SCREW

438-84133-60-00

Unavailable

11

WASHER, PLAIN (646)

92990-04600-00

$5.99

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

NUT(6TA)

95307-04600-00

$8.49

14

NUT, ADJUST

198-84334-60-00

$7.99

15

. COVER, SOCKET

341-84397-61-00

Unavailable

16

SOCKET

371-84312-60-00

Unavailable

17

SPRING, SET

1UY-84124-00-00

Unavailable

18

. SPACER

498-84128-60-00

Unavailable

19

SCREW, OVAL HEAD (1A0)

90152-05005-00

Unavailable

20

BOLT

97013-08035-00

Unavailable

21

WASHER, PLAIN

92990-08200-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

23

NUT(6L2)

95333-08600-00

Unavailable
