- XT500C (XT500) 1976
FUEL TANK

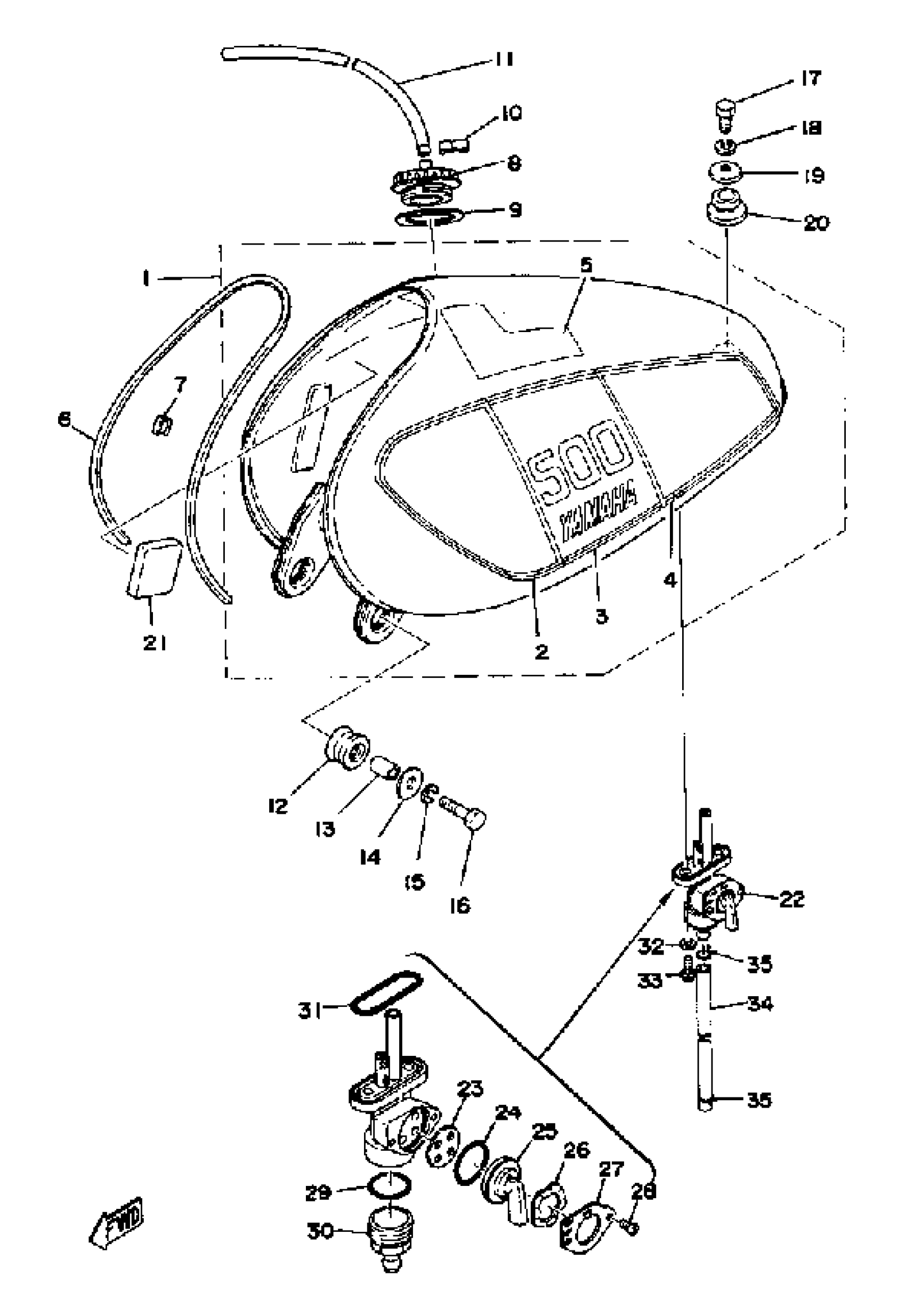

Yamaha XT500C (XT500) 1976 FUEL TANK Diagram
#
1
FUEL TANK
(1E6-24110-00-01)
Unavailable
2
GRAPHIC, FUEL TNK 1
(583-24244-00-00)
Unavailable
2
GRAPHIC, FUEL TNK 5
(583-24248-00-00)
Unavailable
3
. GRAPHIC, FUEL TNK 2 (LEFT)
583-24245-00-00
Unavailable
3
. GRAPHIC, FUEL TNK 6 (RIGHT)
583-24249-00-00
Unavailable
4
GRAPHIC, FUEL TNK 3
(583-24246-00-00)
Unavailable
4
. GRAPHIC, FUEL TNK 7 (RIGHT)
583-24254-00-00
Unavailable
5
GRAPHIC, FUEL TNK 4
(583-24247-00-00)
Unavailable
5
. GRAPHIC, FUEL TNK 8 (RIGHT)
583-24255-00-00
Unavailable
6
PLATE, MOLD
(1E6-24189-00-00)
Unavailable
7
CLIP
90468-03063-00
Unavailable
9
GASKET (583 FUEL TANK CAP)
90430-35122-00
Unavailable
10
CLIP (1E6)
90468-15064-00
Unavailable
12
GROMMET (583 FUEL TANK)
90480-22177-00
Unavailable
13
COLLAR(1NL)
90387-086N4-00
Unavailable
14
WASHER, PLATE (583 FUEL TANK)
90201-06570-00
Unavailable
15
WASHER, SPRING
92995-06100-00
Unavailable
16
BOLT, HEXAGON
97017-06030-00
Unavailable
17
BOLT(JA9)
90101-08691-00
Unavailable
18
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
19
WASHER, PLATE
90209-08150-00
Unavailable
20
DAMPER, FUEL TANK (434)
90480-22054-00
Unavailable
21
DAMPER, TANK LOCATING
583-24182-00-00
Unavailable
22
FUEL COCK ASSY
498-24500-01-00
Unavailable
23
VALVE, COCK
498-24523-00-00
Unavailable
24
. GASKET
214-24513-00-00
Unavailable
25
. LEVER, COCK
498-24524-01-00
Unavailable
26
WASHER WAVE 137245180000
90206-18025-00
Unavailable
27
. PLATE, LEVER FITTING
498-24525-00-00
Unavailable
28
SCREW, LEVER FITTING
214-24535-00-00
Unavailable
29
GASKET, FILTER
498-24522-00-00
Unavailable
30
CUP, FILTER
(498-24521-00-00)
Unavailable
31
GASKET, BODY
214-24512-00-00
Unavailable
32
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
33
SCREW 256241430000
90149-06011-00
Unavailable
34
CLIP
90467-100A1-00
Unavailable
35
HOSE (L210)
90445-110F5-00
Unavailable
