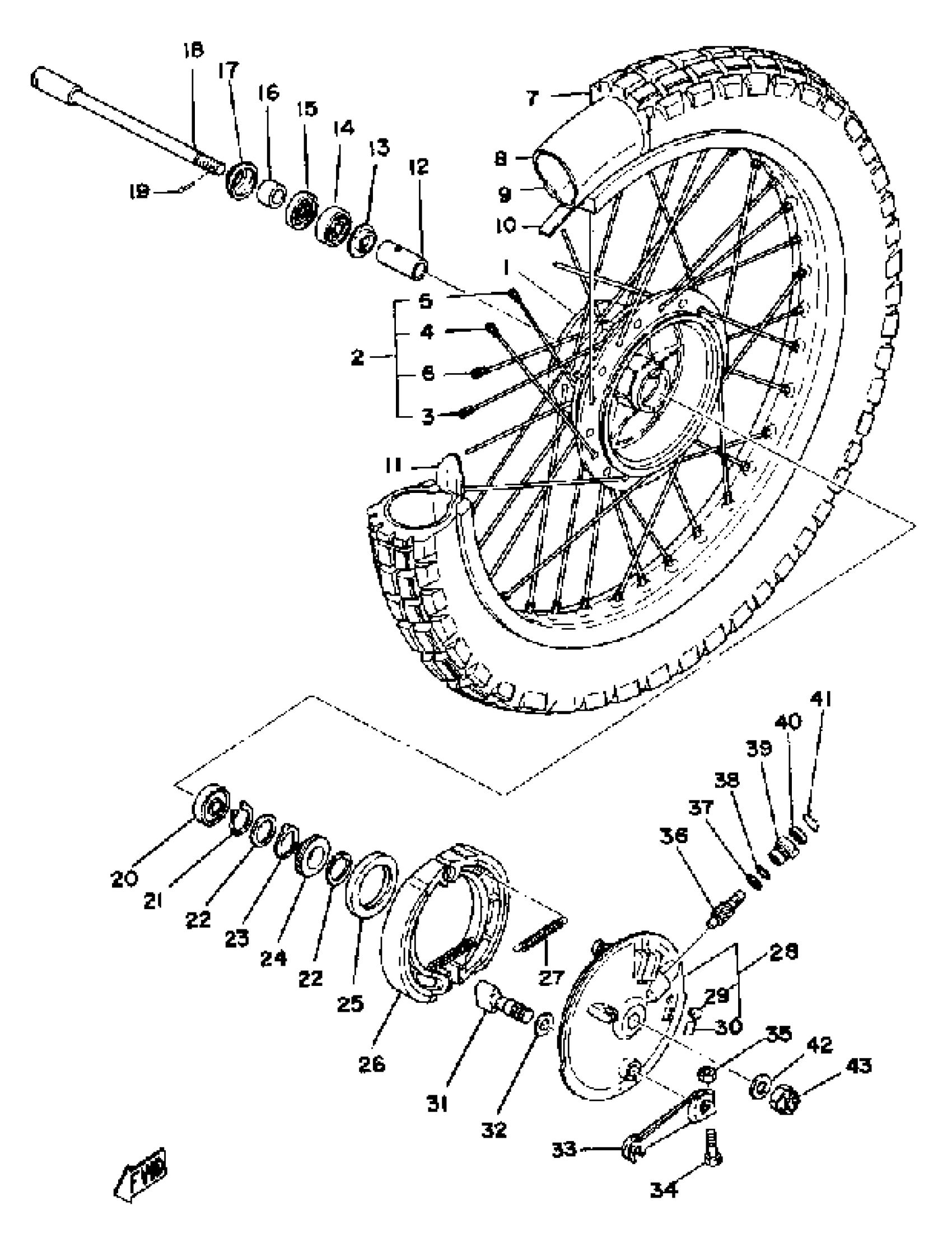

Yamaha XT500C (XT500) 1976 FRONT WHEEL Diagram

#

Description

Price

1

HUB, FRONT

1E6-25111-00-98

Unavailable

2

SPOKE SET, FRONT

1E6-25104-01-00

Unavailable

3

SPOKE SET, INNER 1

(1E6-25196-91-00)

Unavailable

4

SPOKE SET, OUTER 1

(1E6-25197-91-00)

Unavailable

5

SPOKE SET, OUTER 1

(1E6-25197-91-00)

Unavailable

6

SPOKE SET, OUTER 2

(1E6-25189-91-00)

Unavailable

7

300X21 BS TW5A

(94130-21350-00)

Unavailable

8

TUBE, FRONT (2A6)

94227-21123-00

$47.99

9

RIM 1.60X21

94416-21326-00

Unavailable

10

BAND, RIM

(94327-21024-00)

Unavailable

11

SPACER, BEAD

1T1-25194-00-00

Unavailable

12

SPACER(1EE)

90560-15293-00

Unavailable

13

FLANGE, SPACER

146-25116-00-00

$8.99

14

BEARING

93306-20205-00

$38.99

15

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

16

COLLAR

90387-15529-00

Unavailable

17

COVER, HUB DUST

322-25118-00-00

Unavailable

18

AXLE, WHEEL

583-25181-00-00

Unavailable

19

PIN, COTTER

91490-30030-00

Unavailable

20

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

Unavailable

21

CIRCLIP(1EY)

99009-22400-00

Unavailable

22

WASHER PLATE 214251470000

90201-22283-00

Unavailable

23

CLUTCH, METER

214-25149-01-00

Unavailable

24

GEAR, DRIVE

308-25135-00-00

Unavailable

25

OIL SEAL (50X62X7-214)

93105-50010-00

Unavailable

26

BRAKE SHOE SET-2PCS

431-W2536-00-00

Unavailable

27

SPRING, TENSION 2462533300

90507-20002-00

Unavailable

28

BRAKE SHOE PLATE ASSEMBLY

(1E6-25016-10-98)

Unavailable

29

GROMMET (397)

90480-10068-00

Unavailable

30

LABEL, INDICATOR

(437-25134-00-00)

Unavailable

31

CAMSHAFT

1E6-25151-00-00

Unavailable

32

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

33

LEVER, CAM SHAFT

2N6-25155-00-00

Unavailable

34

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

35

NUT, HEXAGON

95380-06600-00

Unavailable

36

GEAR, METER

308-25138-00-00

Unavailable

37

WASHER, PLATE 1832514600

90201-07076-00

Unavailable

38

O-RING (26H)

93210-14579-00

Unavailable

39

BUSHING

109-25136-00-00

Unavailable

40

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

41

RING, STOP

102-25137-00-00

Unavailable

42

WASHER, PLAIN

92990-14200-00

Unavailable

43

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable
