FRONT FORK

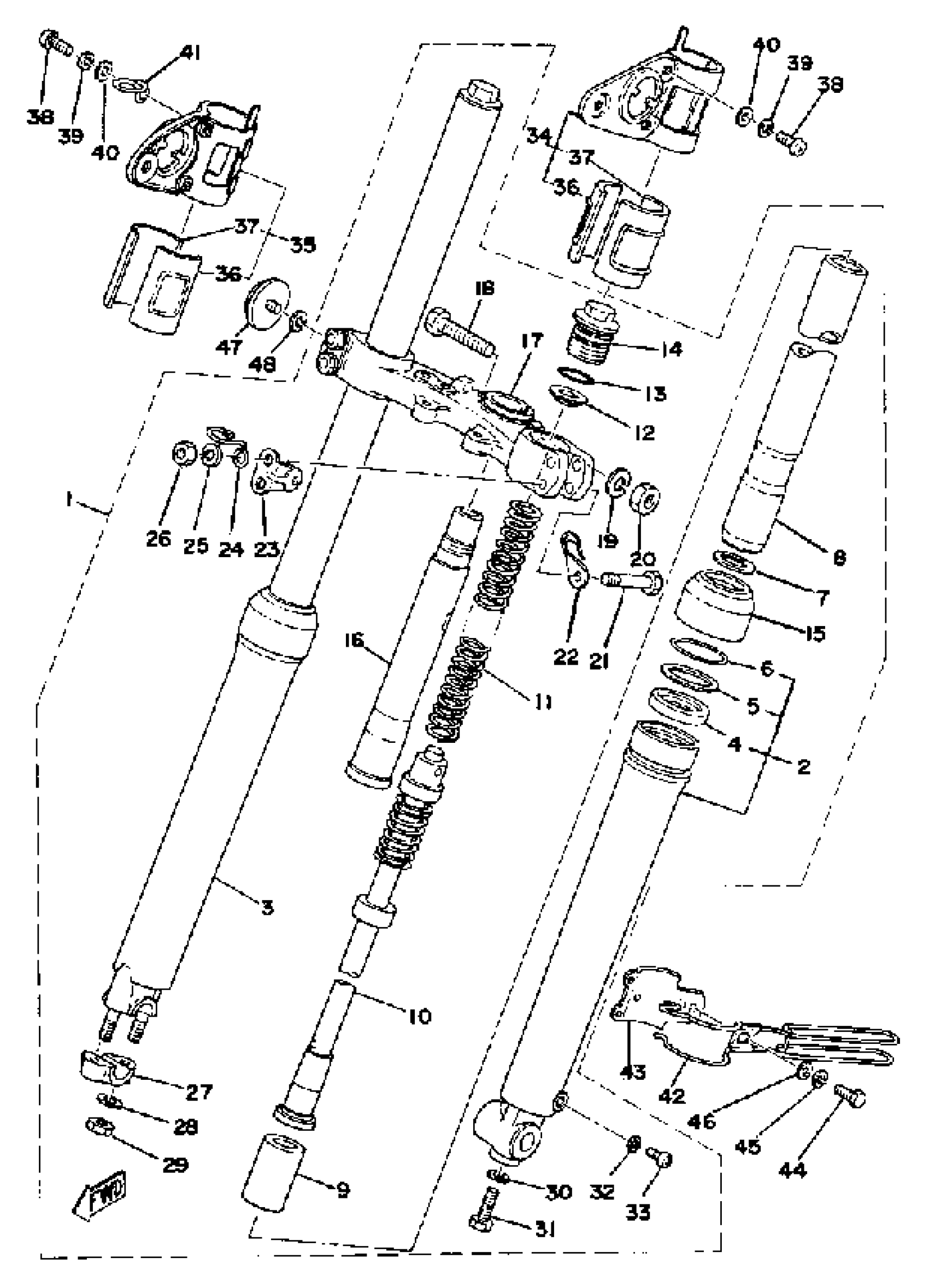

1976 Yamaha XT500 (XT500C) Front Fork Diagram
Find the part on the Front Fork diagram for your 1976 Yamaha XT500 (XT500C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FORK ASSEMBLY
(1E6-23101-00-00)
2
TUBE, OUTER 1
(583-23126-01-00)
3
TUBE, OUTER 2
(583-23136-00-00)
4
OIL SEAL
48Y-23145-00-00
7
CIRCLIP, INNER
(93450-30039-00)
8
TUBE, INNER 1
(583-23124-00-00)
9
PISTON, FRONT FORK
(583-23171-00-00)
10
CYLINDER, FRTFRK
(583-23170-00-00)
11
SPRING, FRONT FORK
(583-23141-00-00)
12
. SEAT, SPRING UPPER
583-23142-00-00
14
. BOLT, CAP (583-23111-00)
2W6-23111-00-00
15
. SEAL, DUST
583-23144-00-00
16
SHAFT, STEERING
(1E6-23341-00-00)
17
UNDER BRACKET
(2H1-23340-00-33)
18
BOLT 2
(322-23356-00-00)
20
NUT
(322-23357-00-00)
22
CLAMP
(90462-08024-00)
23
COVER, OUTER 1
(1E6-23122-00-33)
24
HOLDER, CABLE
4H7-23317-00-00
26
NUT, HEXAGON
(90170-08180-00)
27
. HOLDER, AXLE (291-23167-60)
291-23167-61-00
34
COVER, UPPER 1
(1N5-23121-00-33)
35
COVER, UPPER 2
(1N5-23131-00-33)
36
GASKET, UPPER CVR 1
(1N5-23137-00-00)
37
GASKET, UPPER CVR 2
(1E6-23138-00-00)
41
GUIDE, CABLE
(1E6-23389-00-00)
42
HOLDER, CABLE 1
(1E6-23318-00-00)
43
HOLDER, CABLE 2
(1E6-23319-00-00)
47
REFLECTOR, FRONT 1
355-85111-01-00
48
YBS67-5 WASHER, SPRING
92990-05100-00
