Description

Price

1

FENDER, FRONT (583-21511-00)

583-21511-00-36

Unavailable

2

DAMPER, FENDER

322-21541-00-00

$7.99

3

COLLAR

90387-06158-00

$8.49

4

WASHER, PLATE

90201-06380-00

$0.60

5

WASHER, SPRING

92995-06100-00

Unavailable

6

BOLT, HEXAGON

97017-06030-00

$3.61

7

REAR FENDER COMP.

1U6-21610-00-36

$212.99

8

BOLT

97013-08035-00

$5.60

9

BOLT

97013-08045-00

Unavailable

10

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

11

DAMPER, REAR

168-21639-00-00

$10.99

12

COLLAR

(90387-09258-00)

Unavailable

13

WASHER, PLAIN

92990-08200-00

Unavailable

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

NUT, CROWN

95303-08800-00

$9.49

16

. NUT

95380-08700-00

Unavailable

17

BOLT, HEXAGON

97017-06025-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

COLLAR 437216330000

90387-07391-00

Unavailable

20

DAMPER, FENDER

322-21541-00-00

$7.99

21

GUARD, MUD

583-21629-00-00

Unavailable

22

DAMPER

583-21746-00-00

Unavailable

23

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

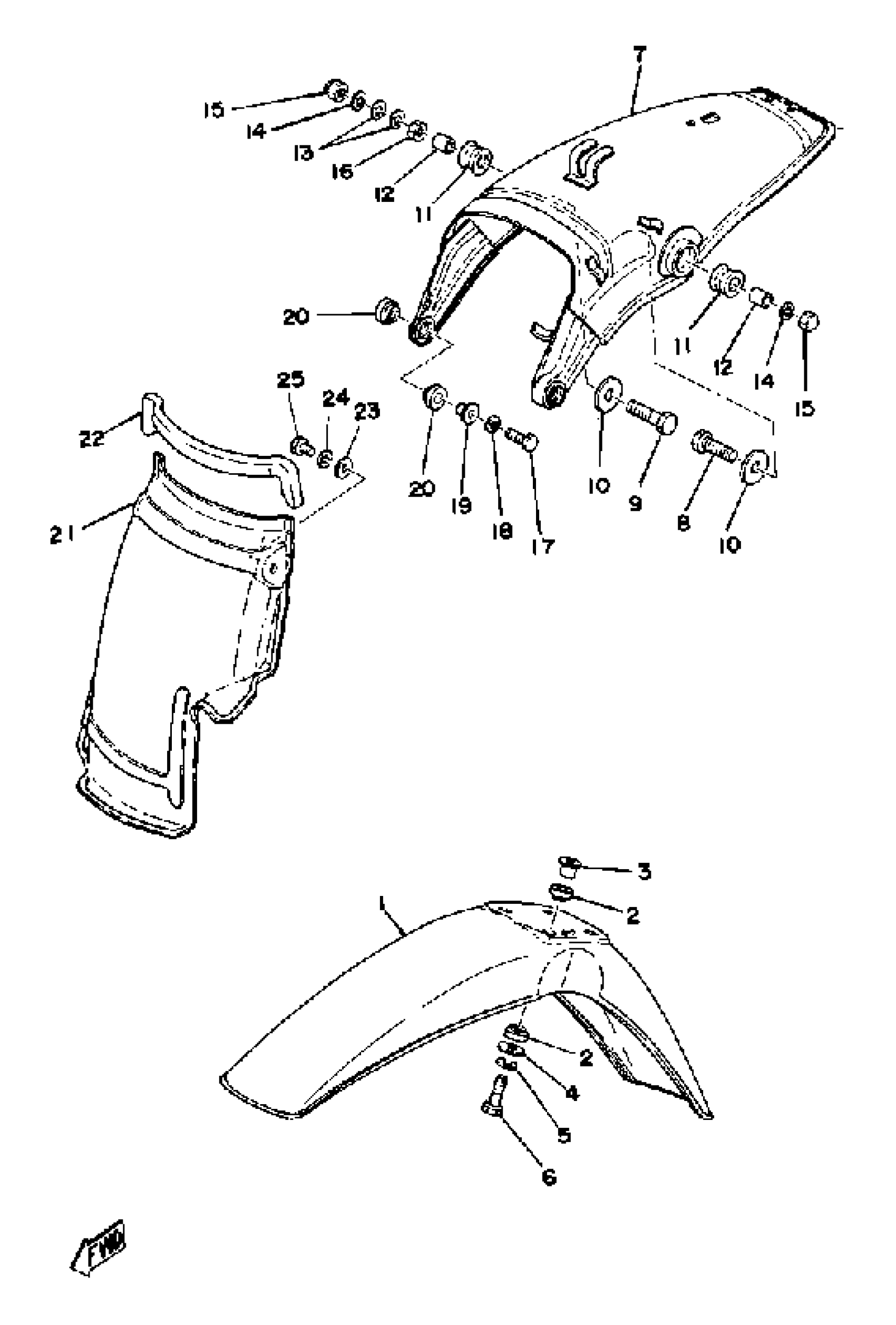

Yamaha XT500C (XT500) 1976 FRONT FENDER - REAR FENDER Diagram

FENDER, FRONT (583-21511-00)

DAMPER, FENDER

COLLAR

WASHER, PLATE

WASHER, SPRING

BOLT, HEXAGON

REAR FENDER COMP.

BOLT

BOLT

WASHER, PLATE(8AT)

DAMPER, REAR

COLLAR

WASHER, PLAIN

YBS67-8 WASHER, SPRING

NUT, CROWN

. NUT

BOLT, HEXAGON

WASHER, SPRING

COLLAR 437216330000

DAMPER, FENDER

GUARD, MUD

DAMPER

WASHER, PLATE (583 REAR FENDER

WASHER, SPRING

BOLT, HEXAGON DEEP RECESS
