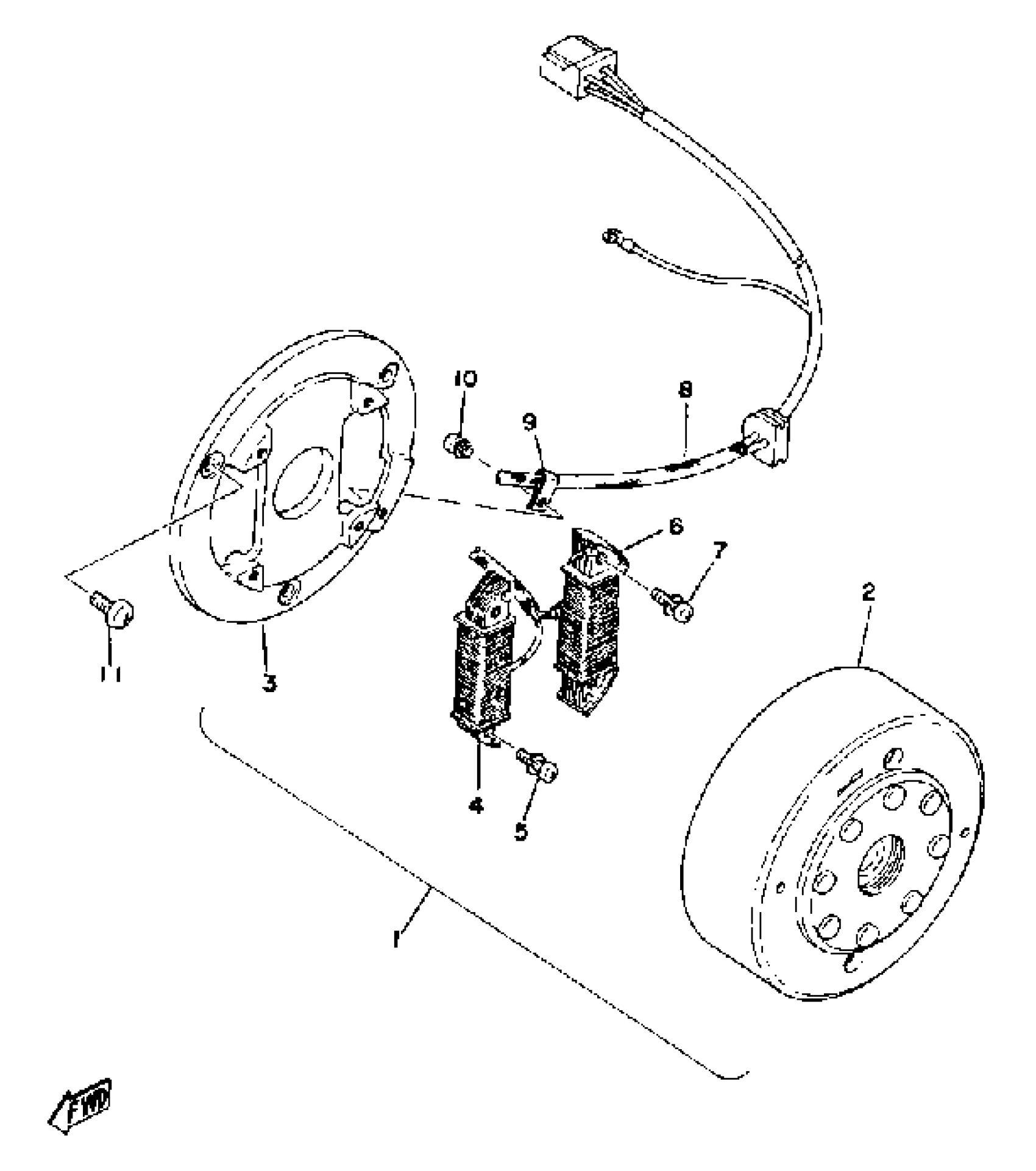

Yamaha XT500C (XT500) 1976 FLYWHEEL MAGNETO Diagram

#

Description

Price

1

FLYWHL MAGNETO ASSEMBLY

(2H0-81300-50-00)

Unavailable

2

ROTOR ASSEMBLY

(583-81350-50-00)

Unavailable

3

BASE, MAGNETO

(583-81309-50-00)

Unavailable

4

. COIL, IGNITION 1

583-81311-50-00

Unavailable

5

. SCREW, PAN HEAD (522)

583-81345-50-00

Unavailable

6

. COIL, LIGHTING 1

1E6-81313-51-00

Unavailable

7

. SCREW, PAN HEAD (522)

583-81345-50-00

Unavailable

8

LEAD WIRE ASSEMBLY

(1E6-81315-50-00)

Unavailable

9

CLAMP

(1E6-81328-50-00)

Unavailable

10

SCREW, PAN HEAD

(583-81346-50-00)

Unavailable

11

SCREW, PAN

98507-06014-00

$8.49
