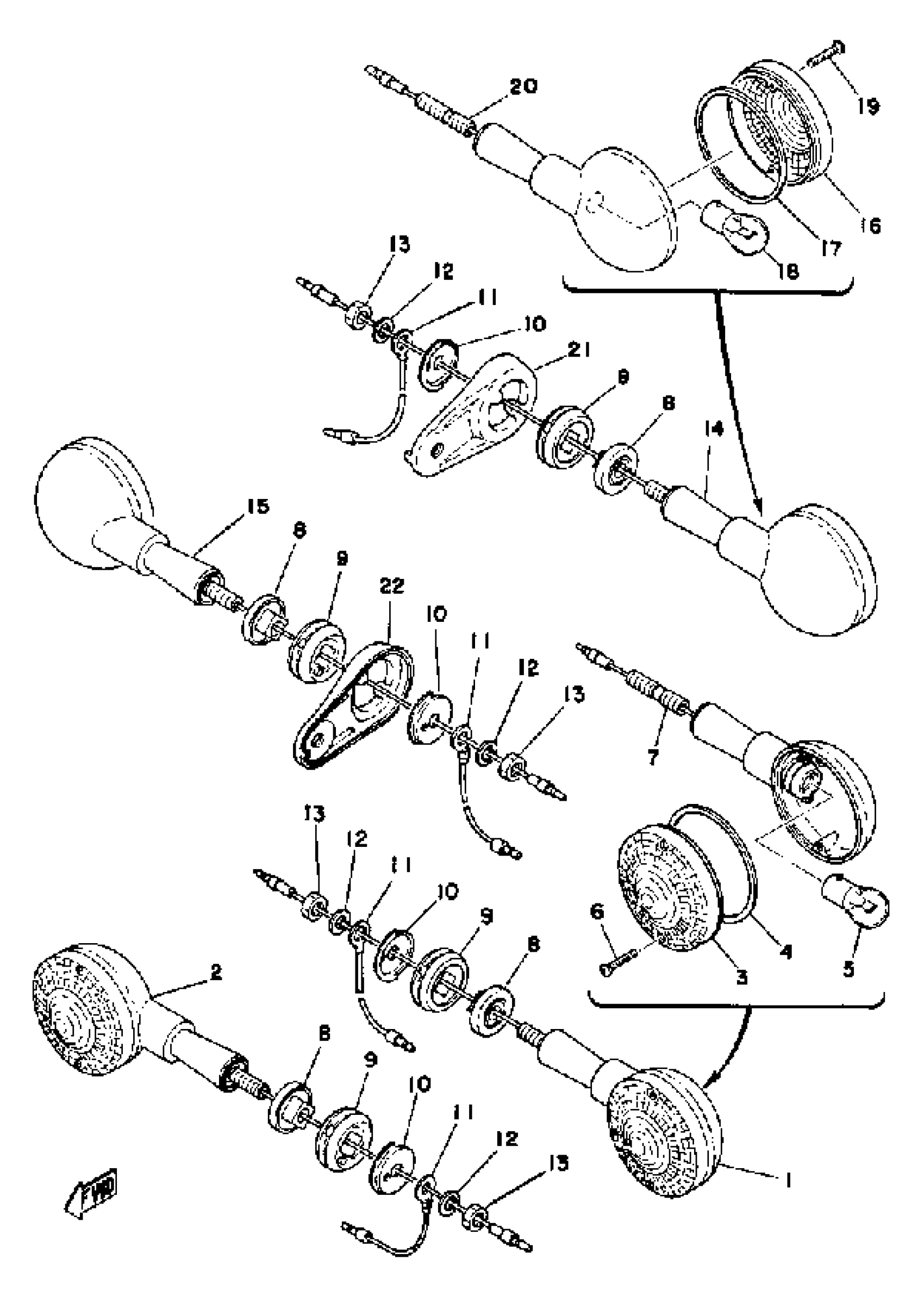

Yamaha XT500C (XT500) 1976 FLASHER LIGHT Diagram

#

Description
Price

1

FRT FLSHR LITE ASSEMBLY

1E6-83310-60-93

Unavailable

2

FRT FLSHR LITE ASSEMBLY

1E6-83310-60-93

Unavailable

3

LENS, FLASHER

341-83312-70-00

Unavailable

4

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

5

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

. BOLT, STUD

360-83367-09-00

Unavailable

8

COLLAR, FLASHER 1

341-83316-02-00

$6.99

9

DAMPER, FLASHER

1E6-83321-00-00

$7.99

10

WASHER

1E6-83348-00-00

Unavailable

11

CORD

(1E6-83336-00-00)

Unavailable

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

NUT(6L2)

95333-08600-00

$2.49

14

R FLSHR LITE ASSEMBLY

1E6-83330-60-93

Unavailable

15

R FLSHR LITE ASSEMBLY

1E6-83330-60-93

Unavailable

16

. LENS, FLASHER

341-83332-70-00

Unavailable

17

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

18

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

19

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

20

. BOLT, STUD

360-83367-09-00

Unavailable

21

STAY, FLASHER

(1E6-83368-00-00)

Unavailable

22

STAY, FLASHER

(1E6-83369-00-00)

Unavailable
