1976 Yamaha XT500 (XT500C) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1976 Yamaha XT500 (XT500C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

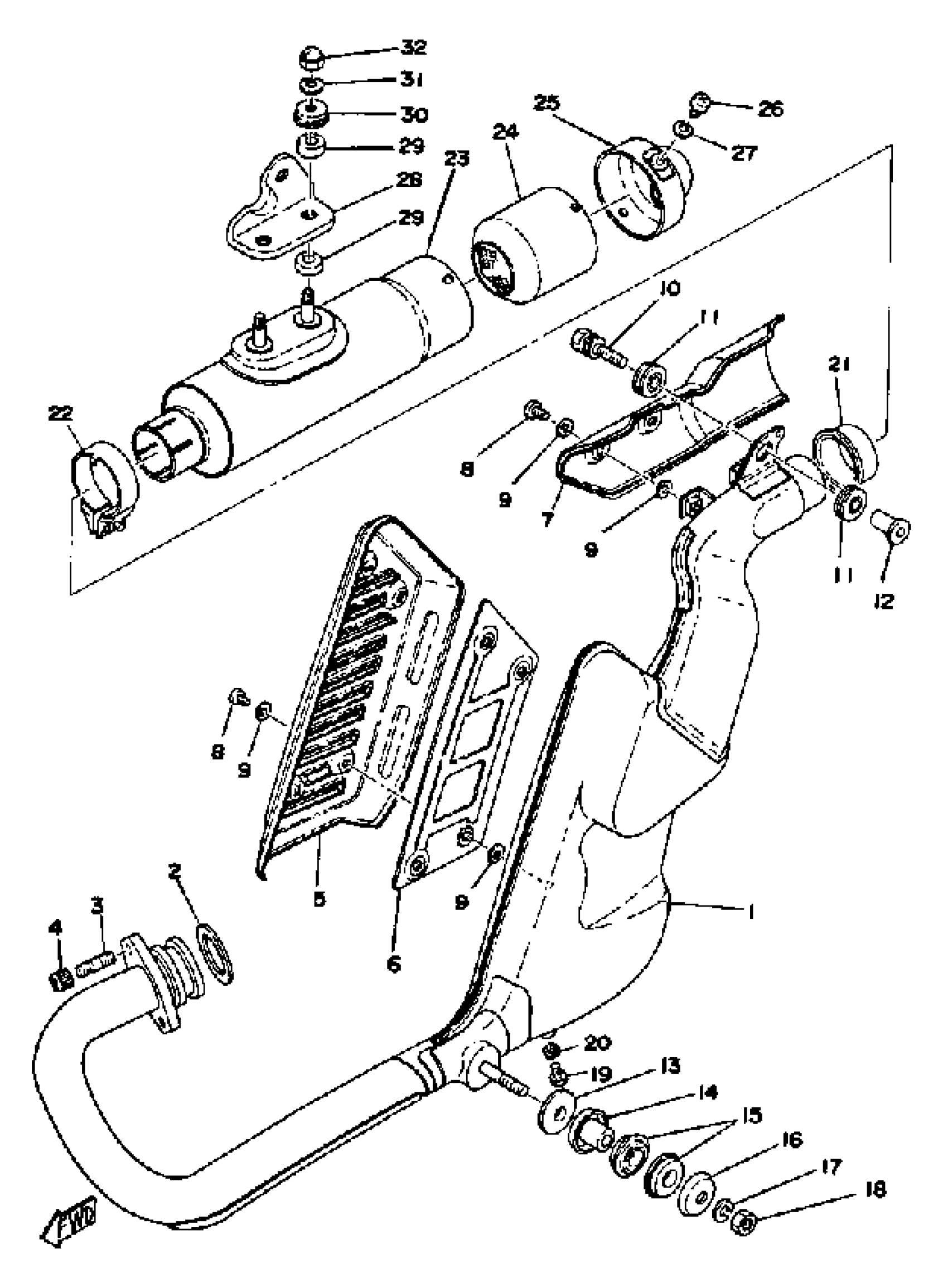

1976 Yamaha XT500 (XT500C) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(1E6-14610-00-00)

1
Out of stock

2

GASKET, EXHAUST PIPE

3GD-14613-00-00

1

$12.38

In stock

3

BOLT, STUD 3

95617-08615-00

1

$3.83

In stock

4

NUT (371)

90179-08004-00

1
Out of stock

5

PROTECTOR, MUFF 1

(1E6-14718-00-00)

1
Out of stock

6

PROTECTER, MUFF 3

(1E6-14738-00-00)

1
Out of stock

7

PROTECTER, MUFF 2

(1E6-14728-00-00)

1
Out of stock

8

SCREW, BINDING

98907-06010-00

1

$1.49

In stock

9

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

10

BOLT, WITH WASHER

90119-08014-00

1
Out of stock

11

DAMPER, MUFFLER 2

(583-14757-00-00)

1
Out of stock

12

COLLAR

(90387-08527-00)

1
Out of stock

13

WASHER, PLATE

90202-10098-00

1
Out of stock

14

SPACER

(583-14763-00-00)

1
Out of stock

15

DAMPER, MUFFLER

(583-14747-00-00)

1
Out of stock

16

WASHER, SPEC''L SHAP

90209-10140-00

1
Out of stock

17

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

18

NUT(3BM)

95314-10600-00

—

$1.74

In stock

19

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

20

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

21

GASKET, MUFFLER (583-14714-00)

583-14714-02-00

1
Out of stock

22

BAND, SILENCER

2J2-14788-01-00

—
Out of stock

23

SILENCER, EXHAUST

(1E6-14753-00-00)

1
Out of stock

24

ARRESTER, SPARK

(1E6-14786-01-00)

1
Out of stock

25

PIPE, OUTLET

(1E6-14752-00-00)

1
Out of stock

26

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

STAY, MUFFLER 2

1E6-14781-00-00

1
Out of stock

29

DAMPER, MUFFLER

438-14757-00-00

1
Out of stock

30

WASHER

90209-06061-00

1
Out of stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

NUT (J17)

95380-06800-00

—

$6.74

In stock
