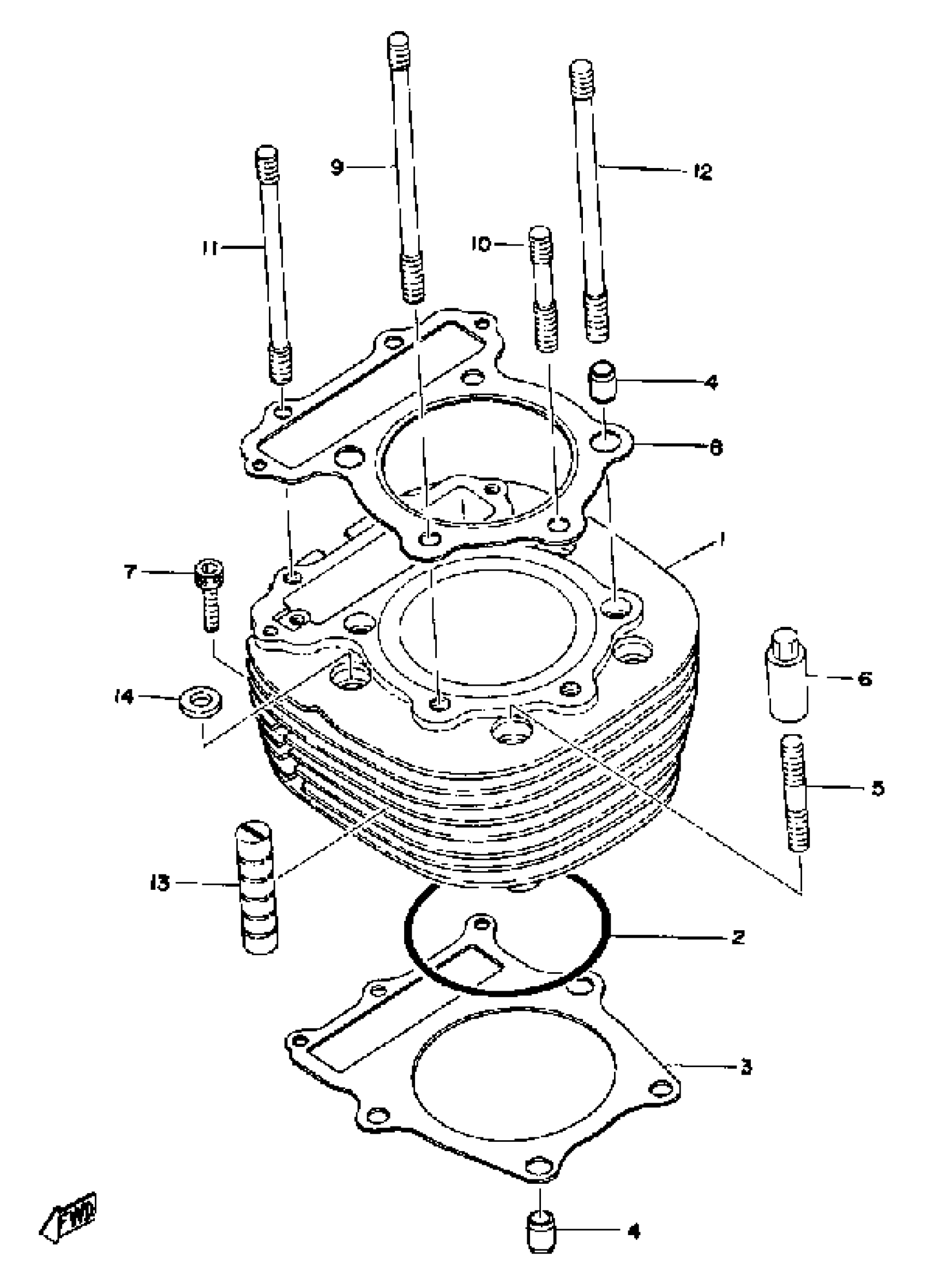

Yamaha XT500C (XT500) 1976 CYLINDER Diagram

CYLINDER

583-11310-00-00

Unavailable

O-RING (583 CYLINDER)

93210-92295-00

$12.49

GASKET, CYLINDER

3HT-11351-00-00

$29.99

PIN, DOWEL

99530-14016-00

$3.80

BOLT (363-11361-00)

90116-10087-00

$17.99

NUT

90179-10021-00

$25.99

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

GASKET, CYLINDER HEAD

2J2-11181-09-00

Unavailable

BOLT, STUD (583 CYLINDER)

90116-10222-00

$16.99

BOLT, STUD (583 CYLINDER)

90116-10223-00

$10.49

BOLT, STUD (583 CYLINDER)

90116-08190-00

$5.60

BOLT, STUD (583)

90116-10225-00

$18.99

ABSORBER

583-11127-00-00

$7.99

WASHER, PLATE (583)

90201-10590-00

$5.60
