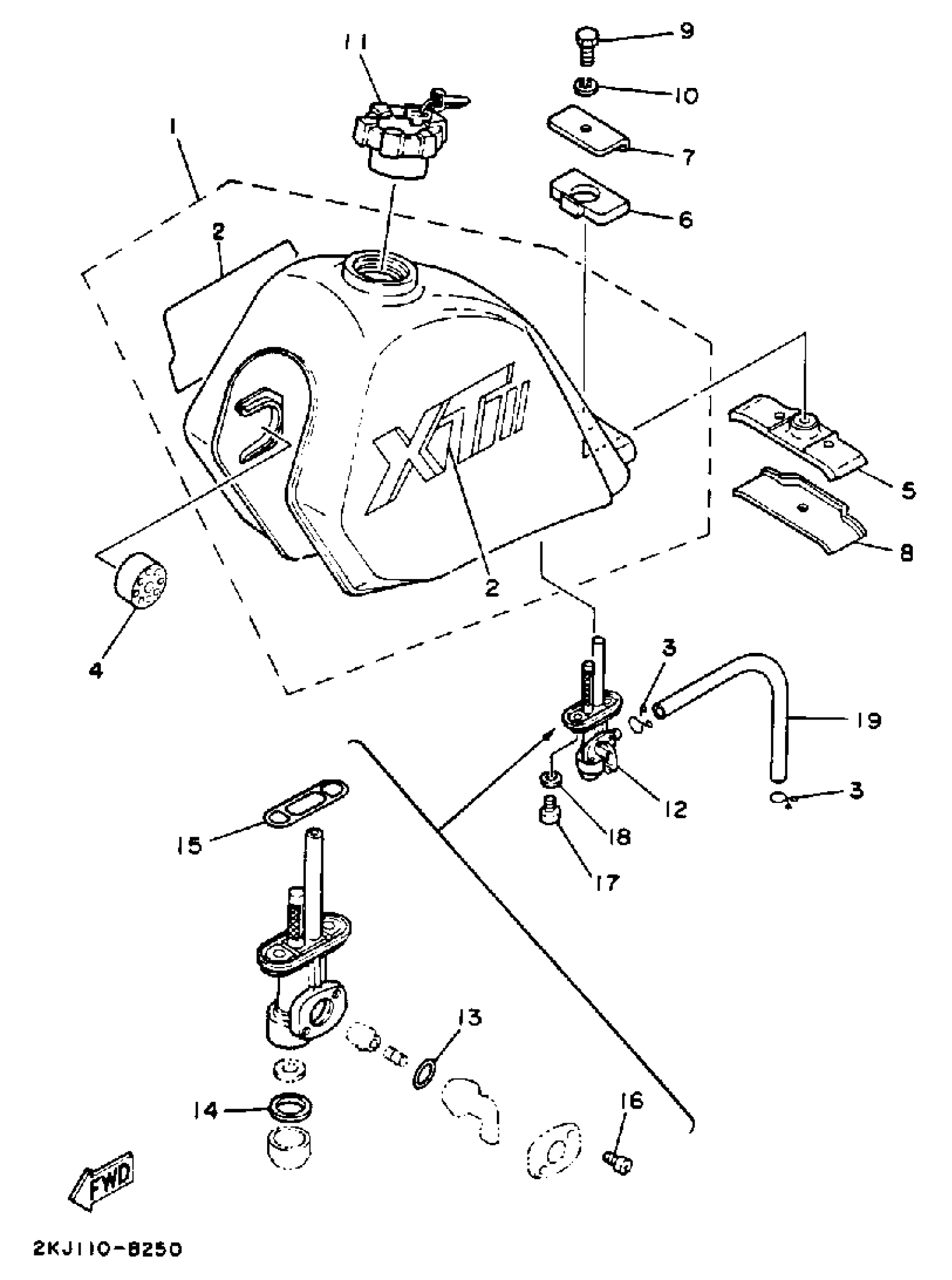

Yamaha XT350WC (XT350 CA) 1989 FUEL TANK (NON-CALIFORNIA MODEL) Diagram

#

Description
Price

1

FUEL TANK

30X-24110-G0-07

Unavailable

2

. GRAPHIC SET

55V-24240-50-00

Unavailable

3

CLIP

90467-090A2-00

$2.47

4

DAMPER, LOCATING 1

4L0-24181-00-00

$8.14

5

DAMPER, LOCATING 2

30X-24182-01-00

$18.12

6

DAMPER, LOCATING 3

30X-24183-01-00

$5.86

7

WASHER, SPECIAL

30X-24186-01-00

$6.29

8

WASHER, SPECIAL

30X-24187-00-00

$21.27

9

BOLT (661)

97013-06012-00

$4.40

10

WASHER, SPRING

92995-06100-00

$2.95

11

CAP ASSY

48Y-24602-00-00

Unavailable

12

FUEL COCK ASSY 1

23F-24500-20-00

$34.50

13

O-RING

4X8-24534-00-00

$10.74

14

GASKET

4X8-24565-10-00

Unavailable

15

O-RING

4X8-24512-00-00

$6.25

16

SCREW

4X8-24535-00-00

Unavailable

17

SCREW 256241430000

90149-06011-00

Unavailable

18

UNAVAILABLE IN PRICE BOOK

90201-06010-00

Unavailable

19

HOSE (L200)

90445-10752-00

Unavailable
