Description

Price

1

SHIFT SHAFT ASSEMBLY

30X-18101-01-00

Unavailable

2

COLLAR (3Y1)

90387-12787-00

$11.49

3

CIRCLIP(1EY)

99009-17400-00

$4.73

4

STOPPER LEVER ASSY

3Y1-18140-00-00

$30.99

5

SPRING, TORSION

90508-26434-00

Unavailable

6

WASHER, PLATE (30X)

90201-177G4-00

$9.49

7

SPRING, TORSION (2K7)

90508-32374-00

$7.49

8

PIN, DOWEL

93608-30152-00

Unavailable

9

SEAL, OIL (30X)

93102-12321-00

$12.49

10

WASHER

90201-12588-00

$7.49

11

SPACER (3Y1)

90560-12191-00

$7.49

12

SHIFT PEDAL ASSY

30X-18110-01-00

Unavailable

13

COVER, CHANGE PEDAL

1W6-18113-00-00

$5.49

14

BOLT, HEXAGON

97017-06020-00

$4.06

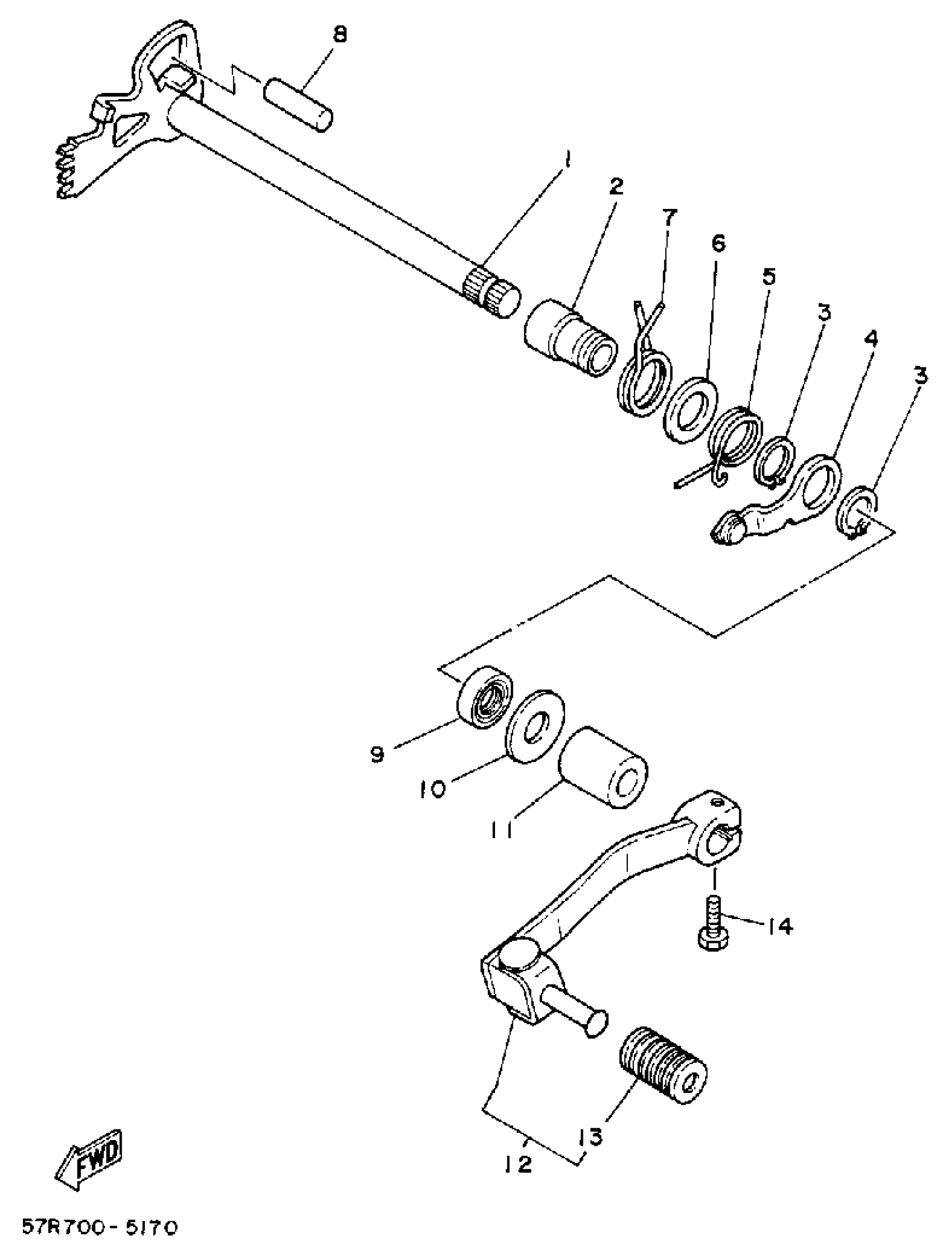

Yamaha XT350U (XT350) 1988 SHIFT SHAFT Diagram

SHIFT SHAFT ASSEMBLY

COLLAR (3Y1)

CIRCLIP(1EY)

STOPPER LEVER ASSY

SPRING, TORSION

WASHER, PLATE (30X)

SPRING, TORSION (2K7)

PIN, DOWEL

SEAL, OIL (30X)

WASHER

SPACER (3Y1)

SHIFT PEDAL ASSY

COVER, CHANGE PEDAL

BOLT, HEXAGON
