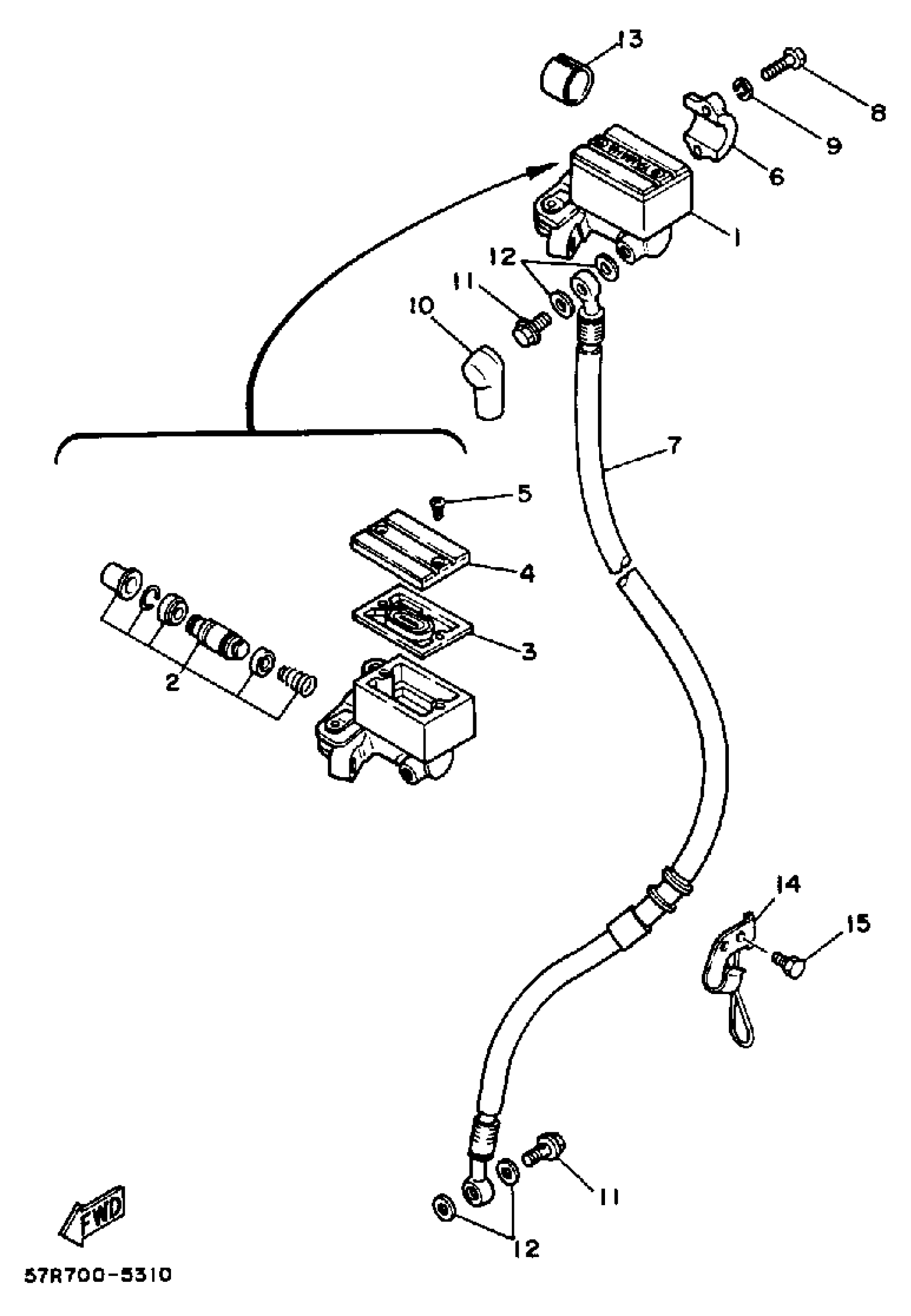

Yamaha XT350TC (XT350 CA) 1987 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

39F-25870-00-00

Unavailable

CYLINDER KIT, MASTER

56A-W0041-00-00

$57.49

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$20.75

CAP, RESERVOIR

4H7-25852-00-00

$34.00

SCREW, FLAT

98707-04012-00

$1.49

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

HOSE, BRAKE 1

99999-02466-00

Unavailable

BOLT, HEXAGON

97017-06025-00

$2.84

WASHER, SPRING

92907-06100-00

$1.49

BOOT, MASTER CYLINDER

4L0-25862-01-00

$6.08

BOLT, UNION(3GM)

90401-10159-00

$8.43

WASHER, PLATE(481)

90201-10118-00

Unavailable

COLLAR(34X)

90387-227H7-00

$6.35

HOLDER, BRAKE HOSE 2

34X-25876-00-00

Unavailable

BOLT,SOCKET

91317-06010-00

$6.59
