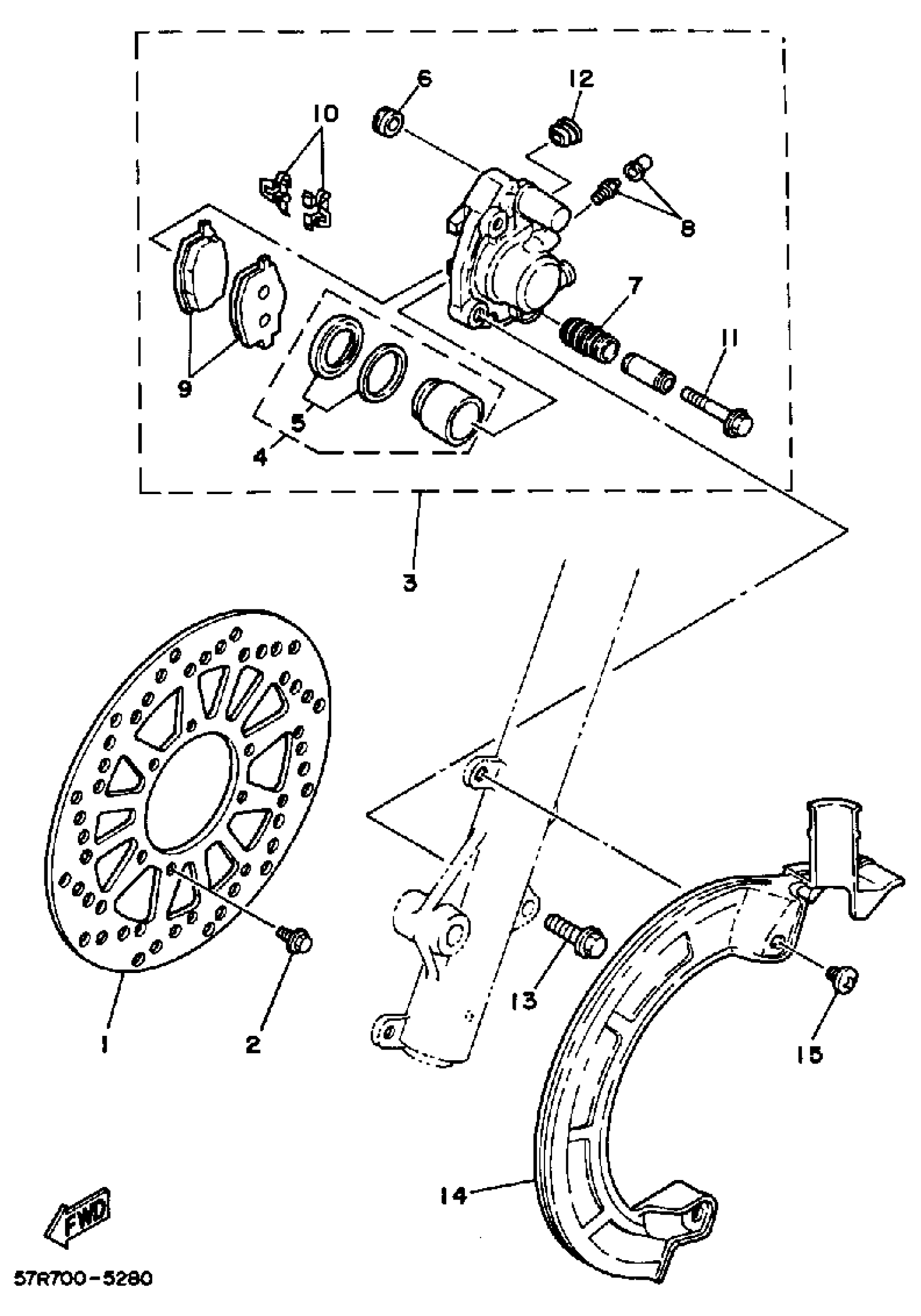

Yamaha XT350TC (XT350 CA) 1987 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

3C5-2582T-00-00

$213.21

2

BOLT

90109-06757-00

Unavailable

3

CALIPER ASSY LEFT

1RH-2580T-01-00

Unavailable

4

PISTON ASSY, CALIPER

34X-W0057-00-00

$121.71

5

CALIPER SEAL KIT

34X-W0047-00-00

$37.82

6

BOOT 2

5R2-25937-00-00

$30.85

7

BOOT 2

34X-25937-00-00

$27.55

8

BLEED SCREW KIT

15B-W0048-00-00

$17.25

9

BRAKE PAD KIT

3BN-25805-02-00

$30.78

10

SUPPORT, PAD

34X-25919-00-00

Unavailable

11

BOLT

5KN-25926-01-00

$7.45

12

CAP, INDICATOR

34X-25845-00-00

$14.33

13

BOLT, WASHER BASED(1AR)

90105-10634-00

$6.63

14

COVER 1

55V-25715-00-00

Unavailable

15

SCREW(36F)

90149-06194-00

Unavailable
