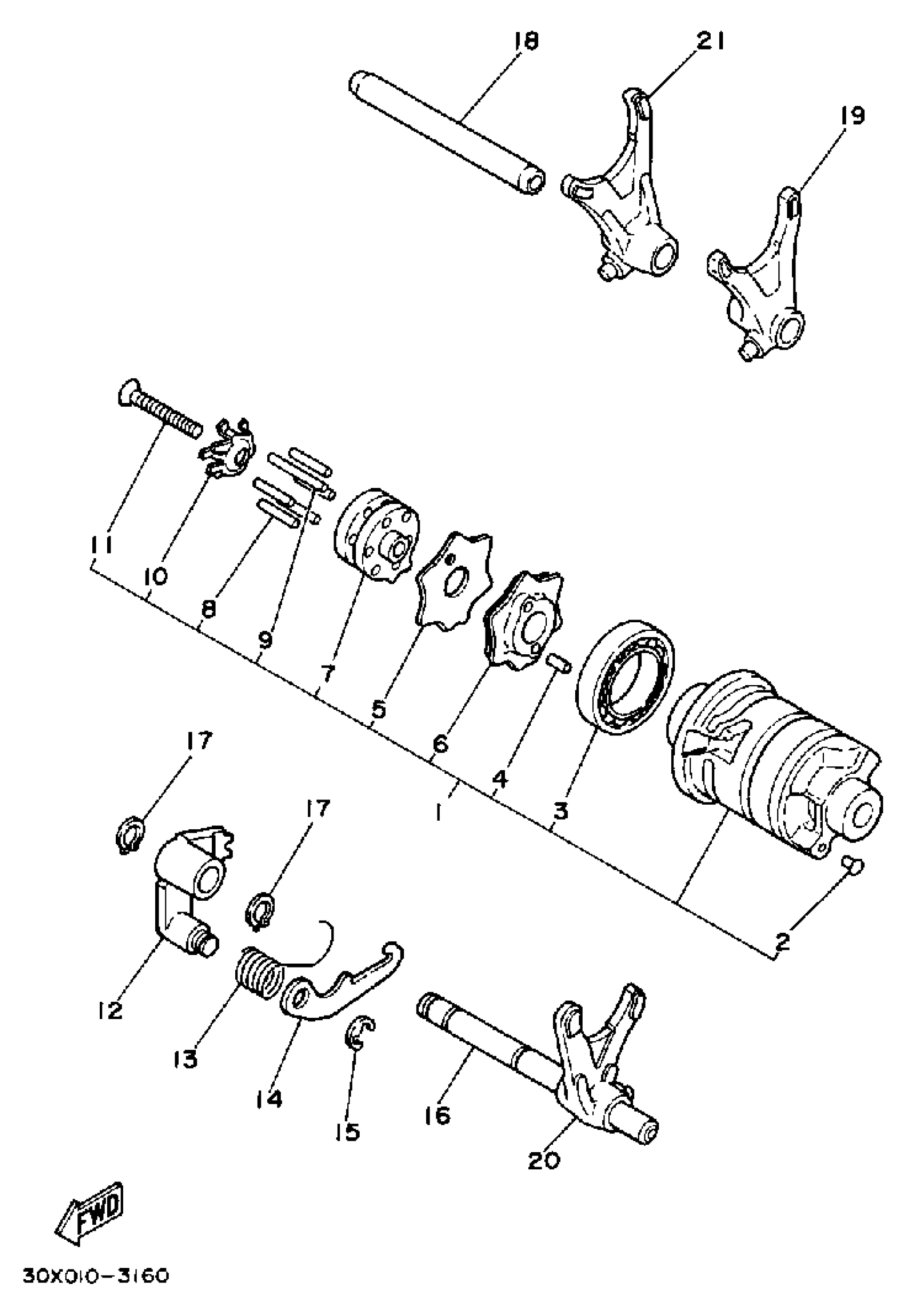

Yamaha XT350SC (XT350 CA) 1986 SHIFT CAM - FORK Diagram

#

Description
Price

1

SHIFT CAM ASSEMBLY

30X-18540-00-00

Unavailable

2

POINT,NEUTRAL (150610)

136-18542-00-00

$6.99

3

BEARING (5K5)

93306-90501-00

$41.99

4

PIN, DOWEL (278)

93604-08071-00

$8.49

5

. GUIDE, PLATE STOPPER

30X-18161-00-00

Unavailable

6

. PLATE, STOPPER

30X-18141-00-00

Unavailable

7

. SEGMENT

30X-18185-00-00

Unavailable

8

PIN, DOWEL (363)

93604-18100-00

$3.55

9

PIN, DOWEL (3Y1)

93604-29151-00

$7.49

10

. PLATE, SIDE 1

30X-18561-02-00

Unavailable

11

SCREW, COUNTERSUNK (5H0)

90151-06013-00

$9.49

12

LEVER, SHIFT 2

3Y1-18122-00-00

Unavailable

13

SPRING, TORSION (3Y1)

90508-12430-00

$7.49

14

LEVER, CHANGE 3

2K7-18151-00-00

Unavailable

15

CIRCLIP

99080-07600-00

Unavailable

16

BAR, SHIFT FORK GUIDE 1

4DN-18531-00-00

Unavailable

17

CIRCLIP(10W)

99009-10400-00

Unavailable

18

BAR, SHIFT FORK GUIDE 2

4DN-18535-00-00

Unavailable

19

FORK, SHIFT 1

30X-18511-00-00

Unavailable

20

FORK, SHIFT 2

30X-18512-00-00

Unavailable

21

FORK, SHIFT 3

30X-18513-00-00

Unavailable
