Description

Price

2

RIM, HEADLIGHT

47J-84115-00-00

$148.99

3

. LENS ASSEMBLY

42U-84321-60-00

Unavailable

4

. HOLDER, BULB

341-84393-40-00

Unavailable

5

. COVER

46X-84396-00-00

Unavailable

6

SCREW, RIM ADJUSTER

43F-84131-00-00

$9.99

7

WASHER,SPECIAL

233-84127-60-00

$3.69

8

SPRING, ADJUST

341-84332-60-00

$9.99

9

NUT, ADJUST

198-84334-60-00

$7.99

10

SET SPRING

55X-84124-00-00

$11.99

11

COVER

10V-84196-00-00

Unavailable

12

COVER

10V-84196-00-00

Unavailable

13

BULB, HEAD LIGHT (12V45/40W

1U4-84314-40-XX

Unavailable

14

BOLT, HEXAGON

97017-06025-00

$4.24

15

COLLAR

90387-06158-00

$8.49

16

GROMMET 839774310000

90480-14023-00

$7.49

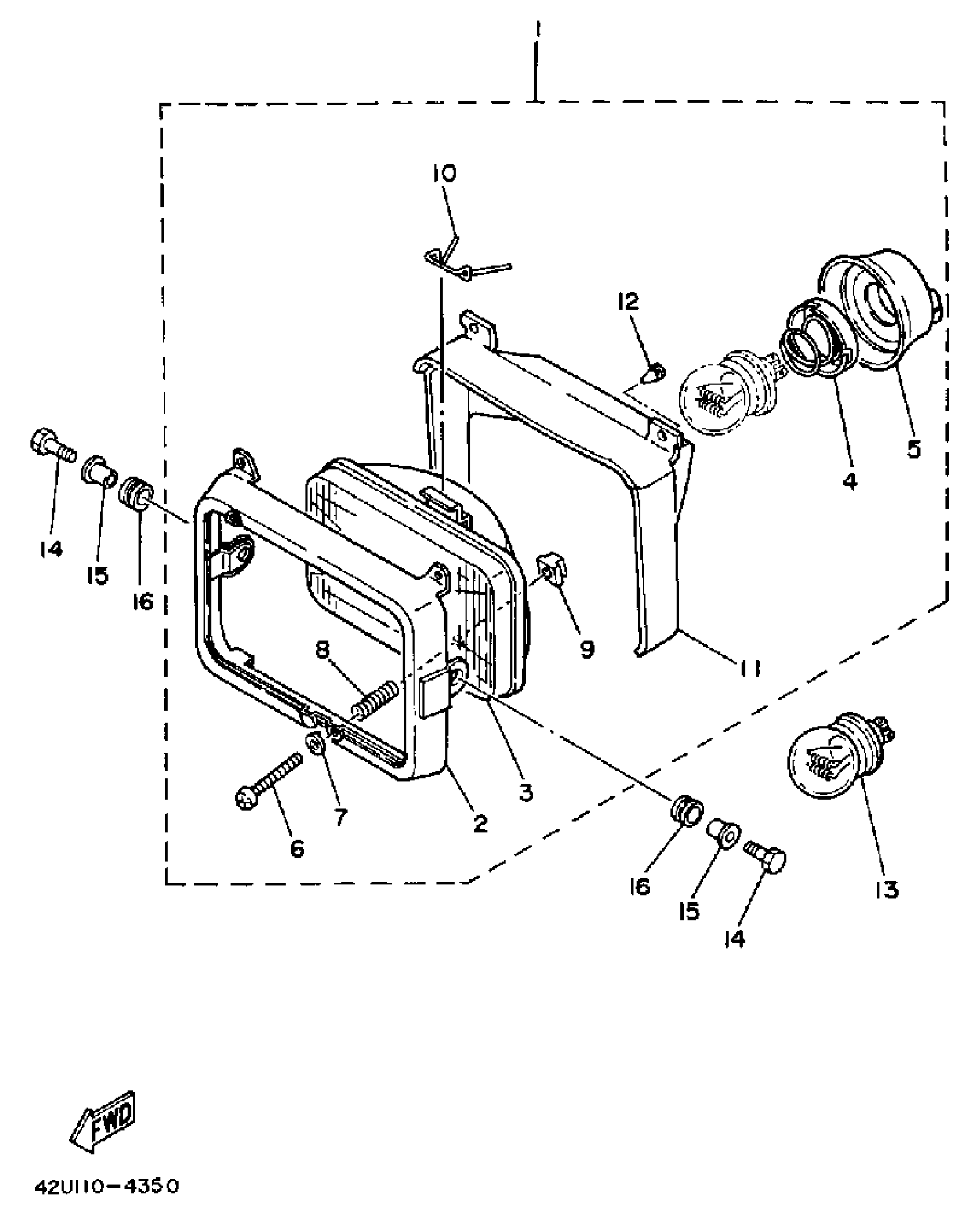

Yamaha XT350SC (XT350 CA) 1986 HEADLIGHT Diagram

RIM, HEADLIGHT

. LENS ASSEMBLY

. HOLDER, BULB

. COVER

SCREW, RIM ADJUSTER

WASHER,SPECIAL

SPRING, ADJUST

NUT, ADJUST

SET SPRING

COVER

COVER

BULB, HEAD LIGHT (12V45/40W

BOLT, HEXAGON

COLLAR

GROMMET 839774310000
