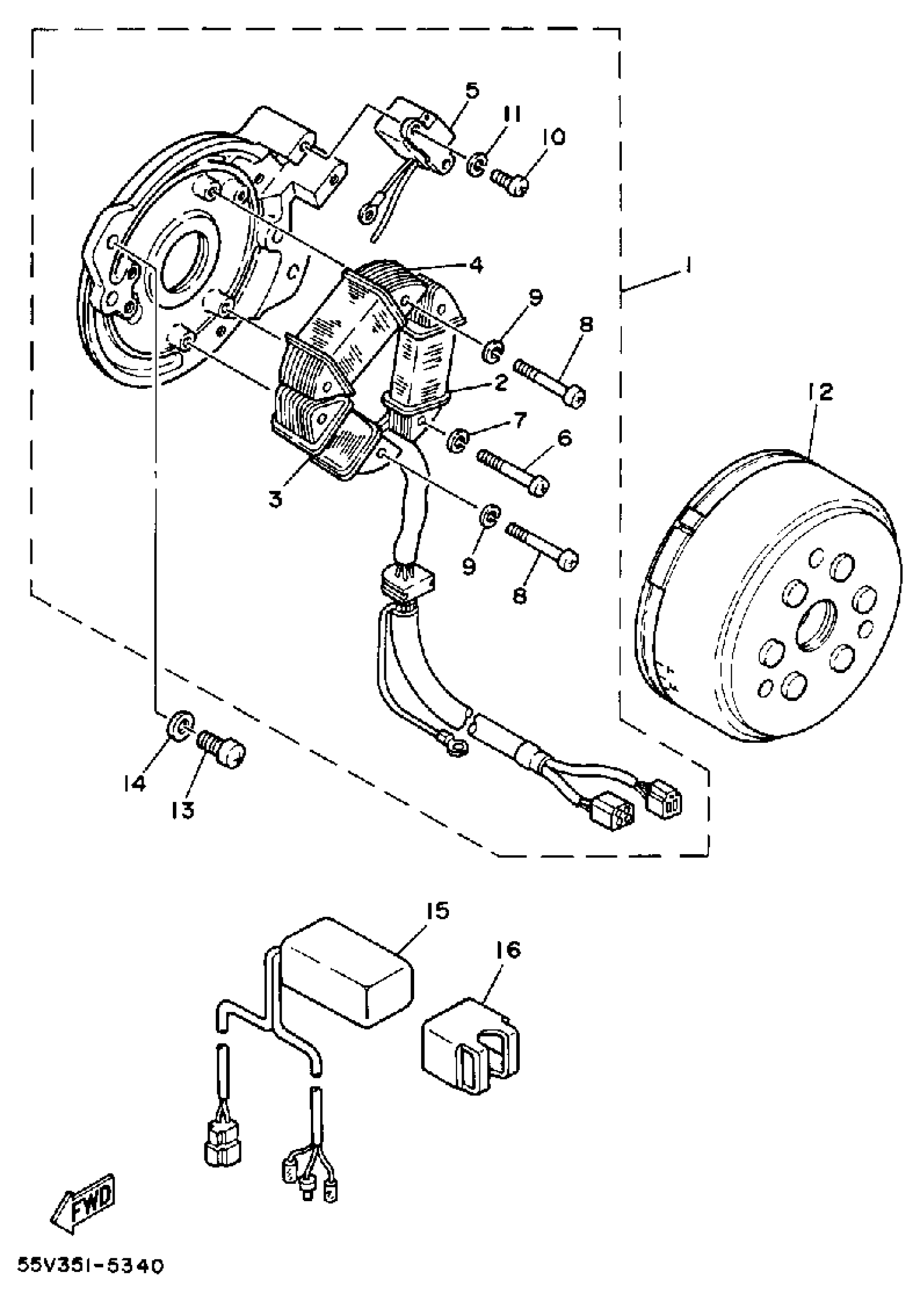

Yamaha XT350SC (XT350 CA) 1986 GENERATOR Diagram

#

Description
Price

1

STATOR ASSEMBLY

(56R-85510-20-00)

Unavailable

2

. COIL, SOURCE

30X-85512-00-00

Unavailable

3

. COIL, LIGHTING 1

56R-85513-00-00

Unavailable

4

. COIL, LIGHTING 2

56R-85514-00-00

Unavailable

5

. COIL, PULSER

30X-85580-00-00

Unavailable

6

SCREW, PAN HEAD

98580-05020-00

Unavailable

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

SCREW, PAN

98507-05035-00

$8.49

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

ROTOR ASSEMBLY

55V-85550-20-00

Unavailable

13

SCREW, PAN

98507-06014-00

$8.49

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

CDI UNIT ASSEMBLY

30X-85540-20-00

Unavailable

16

BAND

3M5-85546-00-00

Unavailable
