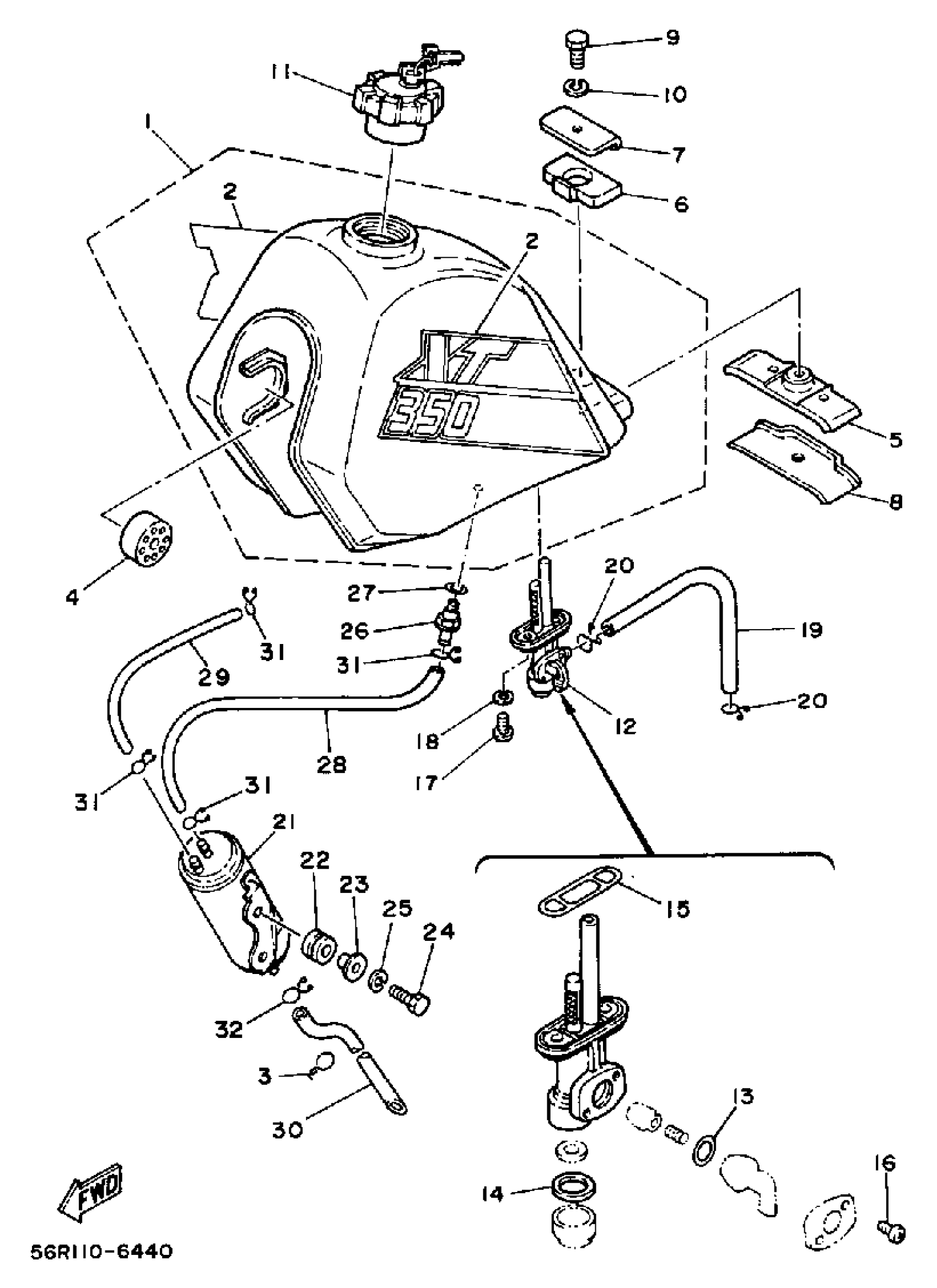

Yamaha XT350SC (XT350 CA) 1986 FUEL TANK XT350SC Diagram

#

Description
Price

1

FUEL TANK

43E-24110-00-06

Unavailable

2

. GRAPHIC SET

55V-24240-20-00

Unavailable

3

CLAMP(56R)

90464-60067-00

$7.49

4

DAMPER, LOCATING 1

4L0-24181-00-00

$9.99

5

DAMPER, LOCATING 2

30X-24182-01-00

$20.99

6

DAMPER, LOCATING 3

30X-24183-01-00

$7.99

7

WASHER, SPECIAL

30X-24186-01-00

$7.99

8

WASHER, SPECIAL

30X-24187-00-00

$24.99

9

BOLT (661)

97013-06012-00

$5.60

10

WASHER, SPRING

92995-06100-00

Unavailable

11

CAP ASSY

56R-24602-00-00

Unavailable

12

FUEL COCK ASSY 1

23F-24500-20-00

$41.99

13

O-RING

4X8-24534-00-00

$13.49

14

GASKET

4X8-24565-10-00

$6.99

15

O-RING

4X8-24512-00-00

$8.99

16

SCREW

4X8-24535-00-00

Unavailable

17

SCREW 256241430000

90149-06011-00

Unavailable

18

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

19

HOSE (L200)

90445-10752-00

Unavailable

20

CLIP

90467-090A2-00

Unavailable

21

CANISTER ASSEMBLY

56R-24170-00-00

Unavailable

22

GROMMET(56R)

90480-15342-00

Unavailable

23

COLLAR(52E)

90387-063G3-00

Unavailable

24

BOLT, HEXAGON

97017-06025-00

Unavailable

25

WASHER, SPRING

92907-06100-00

Unavailable

26

ROLL OVER VALVE ASSY

20K-24180-00-00

Unavailable

27

O-RING (4G0)

93210-11453-00

Unavailable

28

PIPE 4

56R-24314-00-00

Unavailable

29

PIPE, FUEL 1

4KN-24311-01-00

Unavailable

30

HOSE (56R)

(90446-11242-00)

Unavailable

31

CLIP

90467-090A2-00

Unavailable

32

CLIP(1JH)

90467-11106-00

Unavailable
